Toyota Corolla Cross: Disassembly
DISASSEMBLY
CAUTION / NOTICE / HINT

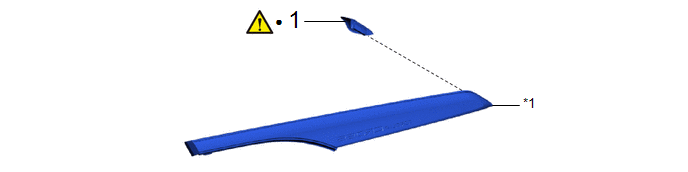

COMPONENTS (DISASSEMBLY)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | QUARTER PILLAR PAD |
62232A |
|
- | - |
.gif)
|
*1 | QUARTER PILLAR COVER |
- | - |
|
● | Non-reusable part |
- | - |
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE QUARTER PILLAR PAD
|
|
NOTICE: When removing the quarter pillar pad, if the double-sided tape is difficult to remove, heat the quarter pillar cover and quarter pillar pad using a heat light. |
Standard:
|
Item | Temperature |
|---|---|
|
Quarter Pillar Cover |
20 to 30 °C (68 to 86 °F) |
|
Quarter Pillar Pad |
CAUTION:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.

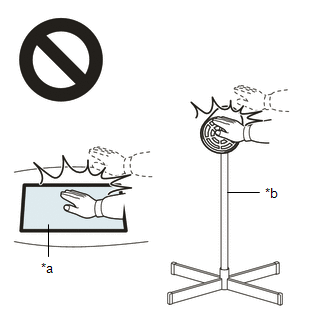

.png)
|
*a | Heated Part |
|
*b | Heat Light |
NOTICE:
Do not heat the quarter pillar cover and quarter pillar pad excessively.
|

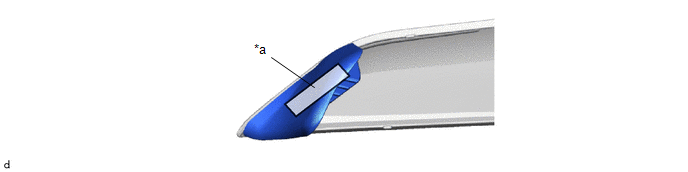

*a | Double-sided Tape |
- | - |
READ NEXT:
Reassembly
REASSEMBLY CAUTION / NOTICE / HINT COMPONENTS (REASSEMBLY)
Procedure Part Name Code
1 QUARTER PILLAR PAD
62232A -
- -
*1 QUARTER PILLAR COVER
Installation
INSTALLATION CAUTION / NOTICE / HINT COMPONENTS (INSTALLATION)
Procedure Part Name Code
1 QUARTER PILLAR COVER SUB-ASSEMBLY
62506C
- -
●
