Toyota Corolla Cross: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

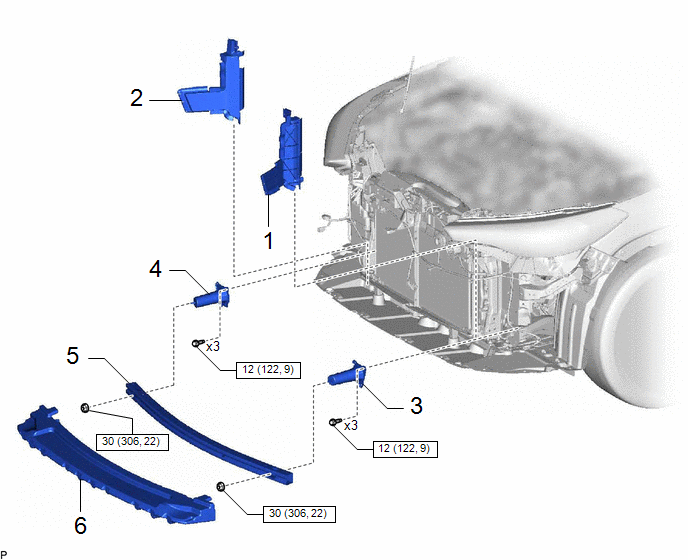

Procedure		Part Name Code
1	NO. 1 RADIATOR AIR GUIDE LH	16595D	-	-	-
2	NO. 1 RADIATOR AIR GUIDE RH	16593D	-	-	-
3	FRONT BUMPER BAR REINFORCEMENT LH	52134C	-	-	-
4	FRONT BUMPER BAR REINFORCEMENT RH	52133C	-	-	-
5	NO. 2 FRONT BUMPER REINFORCEMENT	52132A	-	-	-
6	FRONT BUMPER LOWER ABSORBER	52618	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

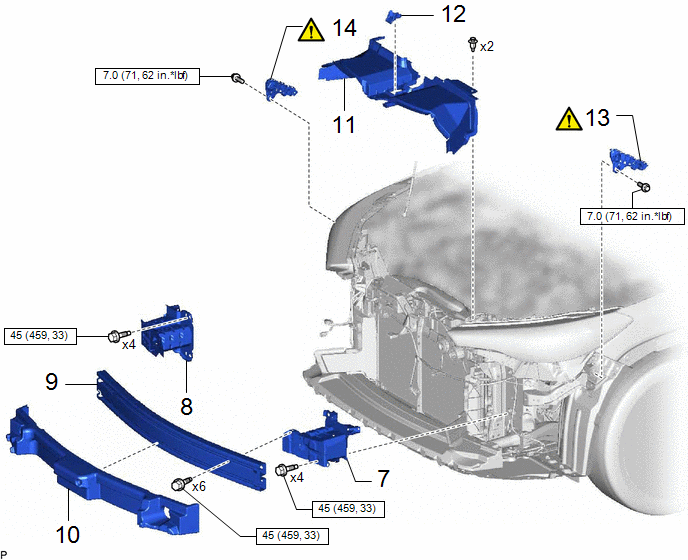

Procedure		Part Name Code
7	FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH	57014A	-	-	-
8	FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH	57013C	-	-	-
9	FRONT BUMPER REINFORCEMENT	52131A	-	-	-
10	FRONT BUMPER ENERGY ABSORBER	52611	-	-	-
11	NO. 1 RADIATOR TO SUPPORT SEAL	16561C	-	-	-
12	LOWER NO. 2 FRONT BUMPER RETAINER	52527C	-	-	-
13	FRONT BUMPER SIDE RETAINER LH	52536	-	-	-
14	FRONT BUMPER SIDE RETAINER RH	52535	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

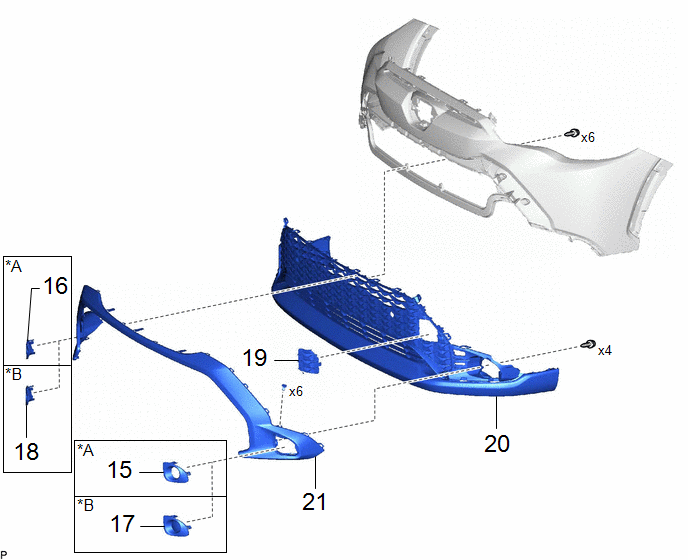

Procedure		Part Name Code
15	FOG LIGHT COVER LH	81482C	-	-	-
16	FOG LIGHT COVER RH	81481E	-	-	-
17	FOG LIGHT COVER LH	81482C	-	-	-
18	FOG LIGHT COVER RH	81481E	-	-	-
19	LOWER SIDE RADIATOR GRILLE LH	53128E	-	-	-
20	LOWER FRONT BUMPER COVER	52129B	-	-	-
21	NO. 1 RADIATOR GRILLE MOULDING	53121H	-	-	-

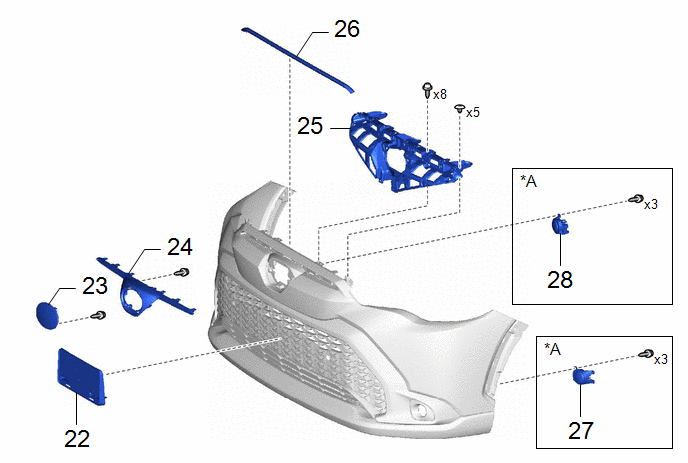

Procedure		Part Name Code
22	FRONT BUMPER EXTENSION MOUNTING BRACKET	52114A	-	-	-
23	RADIATOR GRILLE (OR FRONT PANEL) EMBLEM	75311	-	-	-
24	FRONT BUMPER GARNISH	52711A	-	-	-
25	INNER RADIATOR GRILLE	53114A	-	-	-
26	HOOD TO FRONT END PANEL SEAL	53395J	-	-	-
27	FOG LIGHT ASSEMBLY LH	81220	-	-	-
28	FOG LIGHT ASSEMBLY RH	81210A	-	-	-

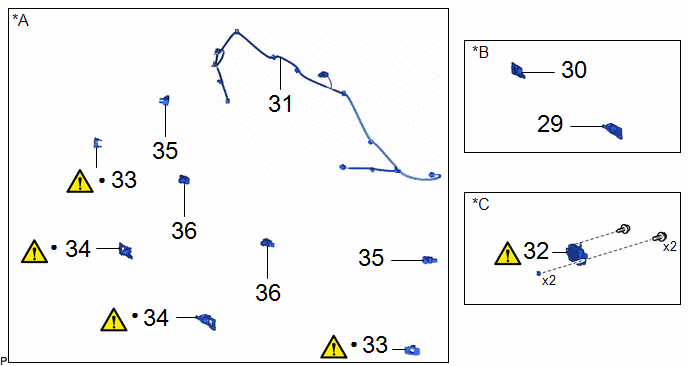

Procedure		Part Name Code
29	RADIATOR GRILLE LOWER RETAINER LH	-	-	-	-
30	RADIATOR GRILLE LOWER RETAINER RH	-	-	-	-
31	NO. 5 ENGINE ROOM WIRE	82119C	-	-	-
32	MILLIMETER WAVE RADAR SENSOR ASSEMBLY	88211B		-	-
33	FRONT CORNER ULTRASONIC SENSOR RETAINER	89C48D		-	-
34	FRONT CENTER ULTRASONIC SENSOR RETAINER	89C48E		-	-
35	FRONT CORNER ULTRASONIC SENSOR	89341K	-	-	-
36	FRONT CENTER ULTRASONIC SENSOR	89341L	-	-	-

*A	w/ TOYOTA Parking Assist-sensor System	*B	w/o TOYOTA Parking Assist-sensor System
*C	w/ Pre-collision System	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part

PROCEDURE

1. INSTALL NO. 1 RADIATOR AIR GUIDE LH

2. INSTALL NO. 1 RADIATOR AIR GUIDE RH

3. INSTALL FRONT BUMPER BAR REINFORCEMENT LH

Torque:

12 N·m {122 kgf·cm, 9 ft·lbf}

4. INSTALL FRONT BUMPER BAR REINFORCEMENT RH

5. INSTALL NO. 2 FRONT BUMPER REINFORCEMENT

Torque:

30 N·m {306 kgf·cm, 22 ft·lbf}

6. INSTALL FRONT BUMPER LOWER ABSORBER

7. INSTALL FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH

Torque:

45 N·m {459 kgf·cm, 33 ft·lbf}

8. INSTALL FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH

9. INSTALL FRONT BUMPER REINFORCEMENT

Torque:

45 N·m {459 kgf·cm, 33 ft·lbf}

10. INSTALL FRONT BUMPER ENERGY ABSORBER

11. INSTALL NO. 1 RADIATOR TO SUPPORT SEAL

12. INSTALL LOWER NO. 2 FRONT BUMPER RETAINER

13. INSTALL FRONT BUMPER SIDE RETAINER LH

Torque:

7.0 N·m {71 kgf·cm, 62 in·lbf}

14. INSTALL FRONT BUMPER SIDE RETAINER RH

15. INSTALL FOG LIGHT COVER LH (w/ Fog Light)

16. INSTALL FOG LIGHT COVER RH (w/ Fog Light)

17. INSTALL FOG LIGHT COVER LH (w/o Fog Light)

18. INSTALL FOG LIGHT COVER RH (w/o Fog Light)

19. INSTALL LOWER SIDE RADIATOR GRILLE LH

20. INSTALL LOWER FRONT BUMPER COVER

21. INSTALL NO. 1 RADIATOR GRILLE MOULDING

22. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET

23. INSTALL RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

24. INSTALL FRONT BUMPER GARNISH

25. INSTALL INNER RADIATOR GRILLE

26. INSTALL HOOD TO FRONT END PANEL SEAL

27. INSTALL FOG LIGHT ASSEMBLY LH (w/ Fog Light)

28. INSTALL FOG LIGHT ASSEMBLY RH (w/ Fog Light)

29. INSTALL RADIATOR GRILLE LOWER RETAINER LH

30. INSTALL RADIATOR GRILLE LOWER RETAINER RH

31. INSTALL NO. 5 ENGINE ROOM WIRE (w/ TOYOTA Parking Assist-sensor System)

32. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)

NOTICE: If the millimeter wave radar sensor assembly has been struck or dropped, replace the millimeter wave radar sensor assembly with a new one.

	Nut		Bolt
	Screw	-	-

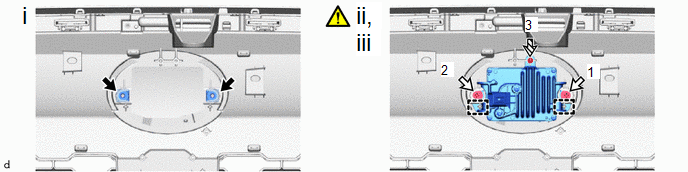

(1) Install the 2 nuts.

(2) Engage the guides to temporarily install the millimeter wave radar sensor assembly.

(3) Install the millimeter wave radar sensor assembly with the 2 bolts and screw.

Torque:

Bolt :

2.5 N·m {25 kgf·cm, 22 in·lbf}

HINT:

Tighten the bolts and screw in the order shown in the illustration.

33. INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

Click here

34. INSTALL FRONT CENTER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

Click here

35. INSTALL FRONT CORNER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

36. INSTALL FRONT CENTER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)
