Toyota Corolla Cross: Disassembly
DISASSEMBLY
CAUTION / NOTICE / HINT

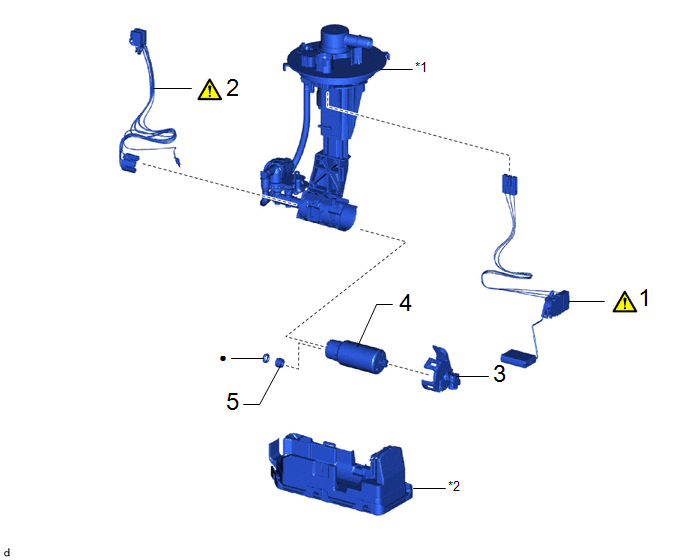

COMPONENTS (DISASSEMBLY)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | FUEL SENDER GAUGE ASSEMBLY |
83320 |
|
- | - |
|
2 | FUEL PUMP HARNESS |
77785 |
|
- | - |
|
3 | NO. 2 FUEL SUCTION SUPPORT |
77175 | - |
- | - |
|
4 | FUEL PUMP |
23221 | - |
- | - |
|
5 | FUEL PUMP SPACER |
23225A | - |
- | - |
.gif)
|
*1 | FUEL SUCTION PLATE SUB-ASSEMBLY |
*2 | FUEL SUB-TANK SUB-ASSEMBLY |
|
● | Non-reusable part |
- | - |
CAUTION / NOTICE / HINT
NOTICE:

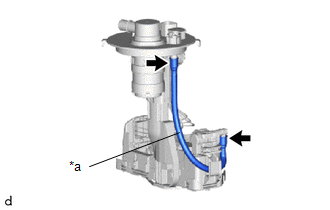

Do not disconnect the tube shown in the illustration when disassembling the fuel suction tube with pump and gauge assembly. Doing so will cause reassembly of the fuel suction tube with pump and gauge assembly to be impossible as the tube is pressed into the fuel suction plate sub-assembly.
|
*a | Tube |
PROCEDURE
1. REMOVE FUEL SENDER GAUGE ASSEMBLY
|
|
Click here |

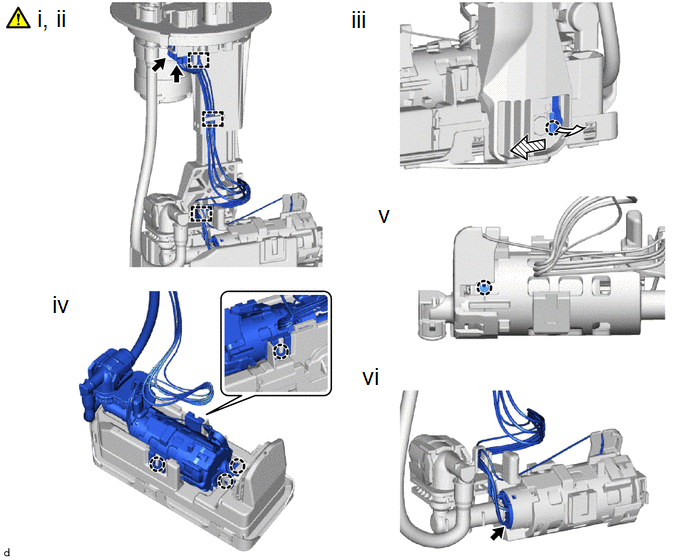

2. REMOVE FUEL PUMP HARNESS
.png) |
Fuel Pump Harness Connector |
.png) |
Pull |
.png) |
Slide | - |
- |
(1) Disengage the 3 clamp to disconnect the fuel pump harness from the fuel suction plate subassembly.
NOTICE:
- Do not damage the wire harness.
- When disengaging each wire harness from the clamp, disengage one wire at a time.
(2) Disconnect the 2 fuel pump harness connectors.
(3) Disengage the claw and slide the fuel suction plate sub-assembly and then separate it from the fuel sub-tank sub-assembly.
(4) Disengage the 4 claws and remove the fuel suction plate sub-assembly from the fuel sub-tank sub-assembly.
(5) Disengage the claw and disconnect the fuel pump harness.
(6) Disconnect the fuel pump harness connector.

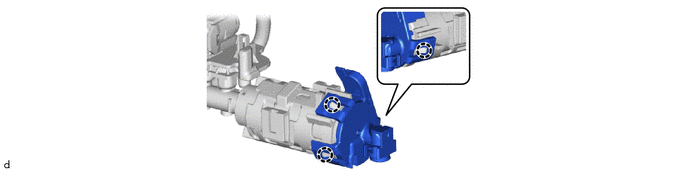

3. REMOVE NO. 2 FUEL SUCTION SUPPORT

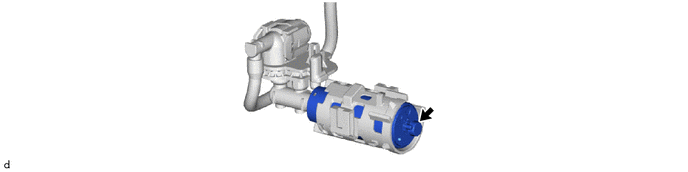

4. REMOVE FUEL PUMP
5. REMOVE FUEL PUMP SPACER
|

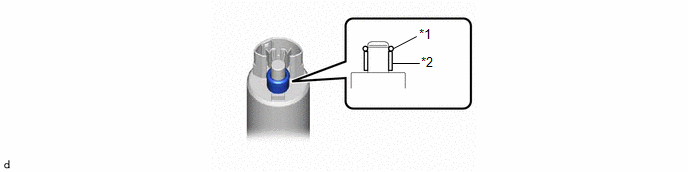

*1 | O-ring |
*2 | Fuel Pump Spacer |
