Toyota Corolla Cross (2022-2024) Service Manual / Drivetrain / Q810 (hybrid Transmission / Transaxle) / Hybrid Transaxle Fluid / Components

COMPONENTS

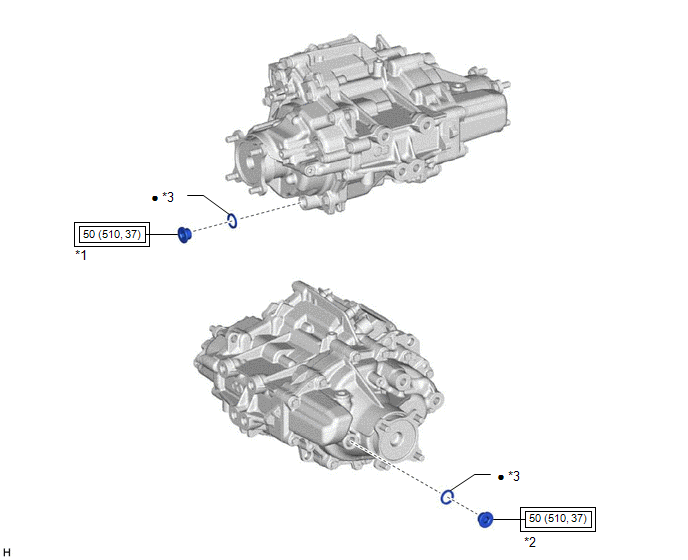

ILLUSTRATION

*1

DRAIN PLUG

*2

FILLER PLUG

*3

GASKET

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

●

Non-reusable part
