Toyota Corolla Cross (2022-2024) Service Manual / General / Maintenance / K120f Continuously Variable Transaxle Fluid / Components

COMPONENTS

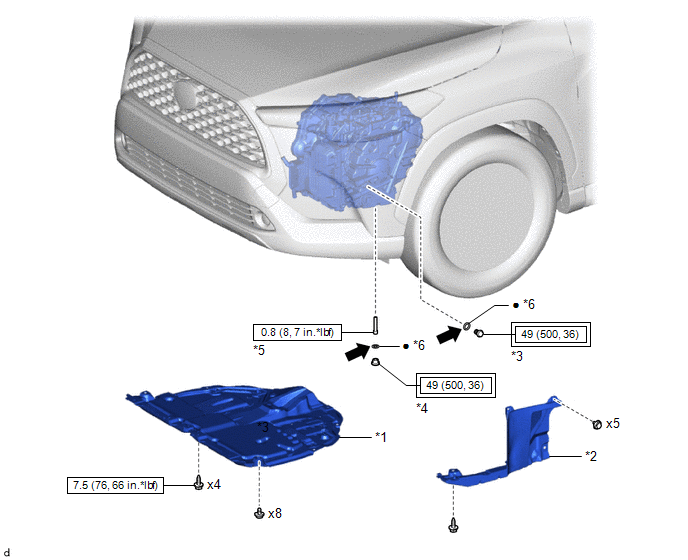

ILLUSTRATION

*1

NO. 1 ENGINE UNDER COVER ASSEMBLY

*2

REAR ENGINE UNDER COVER LH

*3

REFILL PLUG

*4

OVERFLOW PLUG

*5

OVERFLOW (CVT) TUBE

*6

GASKET

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Toyota Genuine CVT Fluid FE
