Toyota Corolla Cross: Check Bus 6 Line

DESCRIPTION

Symptom

Trouble Area

There are ECUs or sensors that display a communication stop on the bus diagnostic screen. Or, there are ECUs or sensors that store a communication stop history on the "Detail" screen.

  • CAN main bus line, branch line or connector
  • Tire pressure warning ECU and receiver
  • Vehicle approaching speaker controller
  • Central gateway ECU (network gateway ECU)
  • No. 22 global CAN junction connector

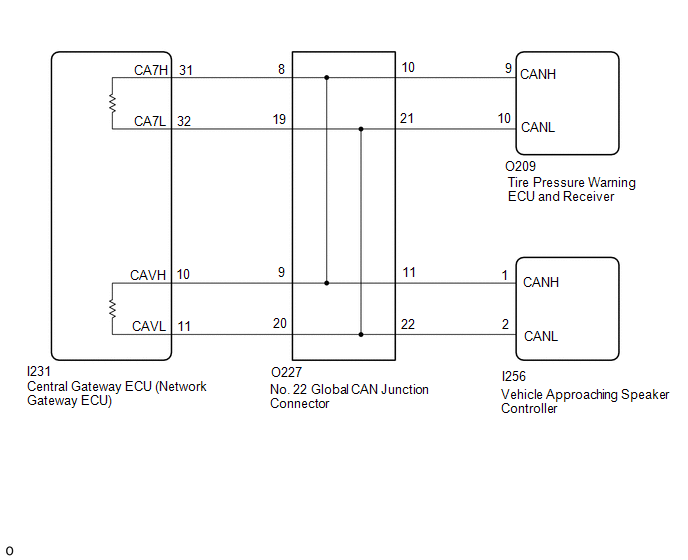

WIRING DIAGRAM

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

NOTICE:

  • Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

    Click here

  • Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
  • After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Click here

  • When disconnecting and reconnecting the auxiliary battery.

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Click here

  • Some parts must be initialized and set when replacing or removing and installing parts.

    Click here

  • After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

    DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

  • After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

    Click here

HINT:

  • Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.
  • When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.

PROCEDURE

1.

CHECK FOR OPEN IN CAN MAIN BUS LINES

(a) Disconnect the cable from the negative (-) auxiliary battery terminal.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I231-31 (CA7H) - I231-32 (CA7L)

Cable disconnected from negative (-) auxiliary battery terminal

Below 70 Ω

*a

Component with harness connected

(Central Gateway ECU (Network Gateway ECU))

NG

GO TO STEP 29

OK

2.

CHECK FOR SHORT IN CAN BUS LINES

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I231-31 (CA7H) - I231-32 (CA7L)

Cable disconnected from negative (-) auxiliary battery terminal

54 Ω or higher

*a

Component with harness connected

(Central Gateway ECU (Network Gateway ECU))

NG

GO TO STEP 21

OK

3.

CHECK FOR SHORT TO +B IN CAN BUS LINE

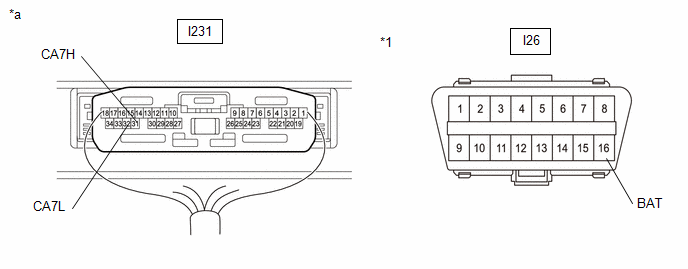

(a) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Component with harness connected (Central Gateway ECU (Network Gateway ECU))

-

-

Standard Resistance:

Tester Connection

Condition

Specified Condition

I231-31 (CA7H) - I26-16 (BAT)

Cable disconnected from negative (-) auxiliary battery terminal

6 kΩ or higher

I231-32 (CA7L) - I26-16 (BAT)

NG

GO TO STEP 13

OK

4.

CHECK FOR SHORT TO GND IN CAN BUS LINE

(a) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

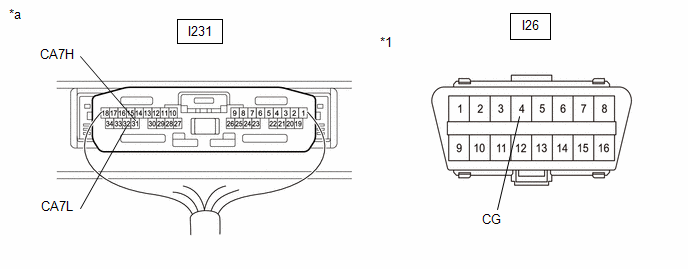

*a

Component with harness connected (Central Gateway ECU (Network Gateway ECU))

-

-

Standard Resistance:

Tester Connection

Condition

Specified Condition

I231-31 (CA7H) - I26-4 (CG)

Cable disconnected from negative (-) auxiliary battery terminal

200 Ω or higher

I231-32 (CA7L) - I26-4 (CG)

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

NG

5.

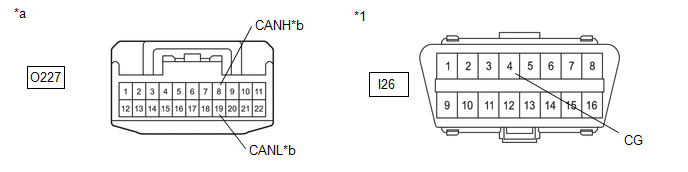

CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

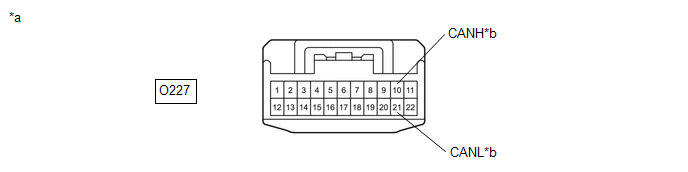

(a) Disconnect the No. 22 global CAN junction connector.

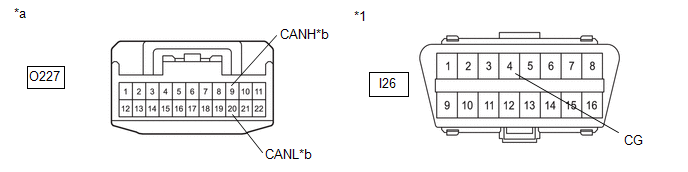

(b) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

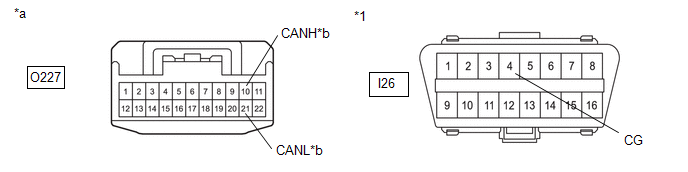

(to No. 22 Global CAN Junction Connector)

*b

to Central Gateway ECU (Network Gateway ECU)

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-8 (CANH) - I26-4 (CG)

Cable disconnected from negative (-) auxiliary battery terminal

200 Ω or higher

O227-19 (CANL) - I26-4 (CG)

NG

GO TO STEP 9

OK

6.

CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

(a) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Vehicle Approaching Speaker Controller

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-11 (CANH) - I26-4 (CG)

Cable disconnected from negative (-) auxiliary battery terminal

200 Ω or higher

O227-22 (CANL) - I26-4 (CG)

NG

GO TO STEP 10

OK

7.

CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

(a) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Tire Pressure Warning ECU and Receiver

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-10 (CANH) - I26-4 (CG)

Cable disconnected from negative (-) auxiliary battery terminal

200 Ω or higher

O227-21 (CANL) - I26-4 (CG)

NG

GO TO STEP 11

OK

8.

CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

(a) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Central Gateway ECU (Network Gateway ECU)

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-9 (CANH) - I26-4 (CG)

Cable disconnected from negative (-) auxiliary battery terminal

200 Ω or higher

O227-20 (CANL) - I26-4 (CG)

OK

REPLACE NO. 22 GLOBAL CAN JUNCTION CONNECTOR

NG

GO TO STEP 12

9.

CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

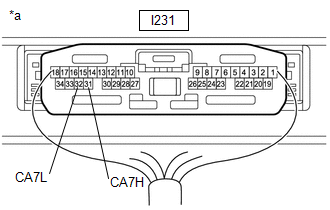

(a) Disconnect the I231 central gateway ECU (network gateway ECU) connector

(b) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Central Gateway ECU (Network Gateway ECU)

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-8 (CANH) - I26-4 (CG)

Cable disconnected from negative (-) auxiliary battery terminal

200 Ω or higher

O227-19 (CANL) - I26-4 (CG)

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

10.

CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

(a) Disconnect the I256 vehicle approaching speaker controller connector.

(b) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Vehicle Approaching Speaker Controller

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-11 (CANH) - I26-4 (CG)

Cable disconnected from negative (-) auxiliary battery terminal

200 Ω or higher

O227-22 (CANL) - I26-4 (CG)

OK

REPLACE VEHICLE APPROACHING SPEAKER CONTROLLER

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

11.

CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

(a) Disconnect the O209 tire pressure warning ECU and receiver connector.

(b) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Tire Pressure Warning ECU and Receiver

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-10 (CANH) - I26-4 (CG)

Cable disconnected from negative (-) auxiliary battery terminal

200 Ω or higher

O227-21 (CANL) - I26-4 (CG)

OK

REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

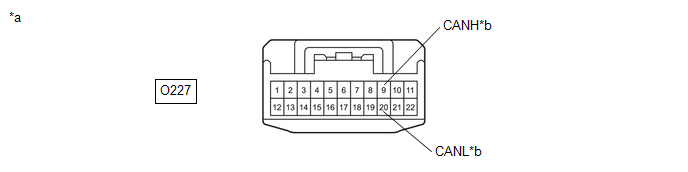

12.

CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

(a) Disconnect the I231 central gateway ECU (network gateway ECU) connector

(b) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Central Gateway ECU (Network Gateway ECU)

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-9 (CANH) - I26-4 (CG)

Cable disconnected from negative (-) auxiliary battery terminal

200 Ω or higher

O227-20 (CANL) - I26-4 (CG)

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

13.

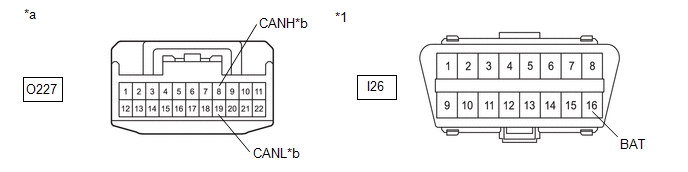

CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

(a) Disconnect the No. 22 global CAN junction connector.

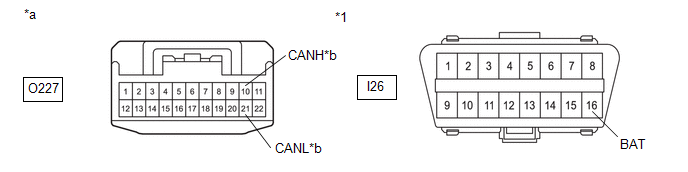

(b) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Central Gateway ECU (Network Gateway ECU)

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-8 (CANH) - I26-16 (BAT)

Cable disconnected from negative (-) auxiliary battery terminal

6 kΩ or higher

O227-19 (CANL) - I26-16 (BAT)

NG

GO TO STEP 17

OK

14.

CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

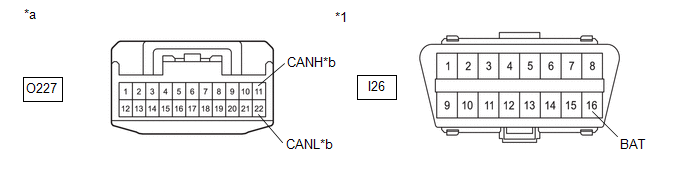

(a) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Vehicle Approaching Speaker Controller

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-11 (CANH) - I26-16 (BAT)

Cable disconnected from negative (-) auxiliary battery terminal

6 kΩ or higher

O227-22 (CANL) - I26-16 (BAT)

NG

GO TO STEP 18

OK

15.

CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

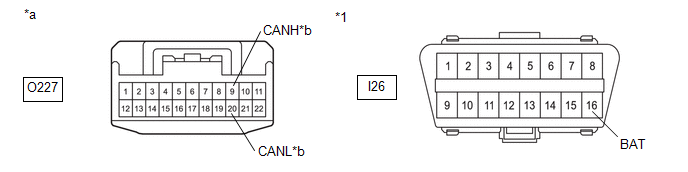

(a) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Tire Pressure Warning ECU and Receiver

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-10 (CANH) - I26-16 (BAT)

Cable disconnected from negative (-) auxiliary battery terminal

6 kΩ or higher

O227-21 (CANL) - I26-16 (BAT)

NG

GO TO STEP 19

OK

16.

CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

(a) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Central Gateway ECU (Network Gateway ECU)

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-9 (CANH) - I26-16 (BAT)

Cable disconnected from negative (-) auxiliary battery terminal

6 kΩ or higher

O227-20 (CANL) - I26-16 (BAT)

OK

REPLACE NO. 22 GLOBAL CAN JUNCTION CONNECTOR

NG

GO TO STEP 20

17.

CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

(a) Disconnect the I231 central gateway ECU (network gateway ECU) connector.

(b) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Central Gateway ECU (Network Gateway ECU)

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-8 (CANH) - I26-16 (BAT)

Cable disconnected from negative (-) auxiliary battery terminal

6 kΩ or higher

O227-19 (CANL) - I26-16 (BAT)

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

18.

CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

(a) Disconnect the I256 vehicle approaching speaker controller connector.

(b) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Vehicle Approaching Speaker Controller

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-11 (CANH) - I26-16 (BAT)

Cable disconnected from negative (-) auxiliary battery terminal

6 kΩ or higher

O227-22 (CANL) - I26-16 (BAT)

OK

REPLACE VEHICLE APPROACHING SPEAKER CONTROLLER

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

19.

CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

(a) Disconnect the O209 tire pressure warning ECU and receiver connector.

(b) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Tire Pressure Warning ECU and Receiver

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-10 (CANH) - I26-16 (BAT)

Cable disconnected from negative (-) auxiliary battery terminal

6 kΩ or higher

O227-21 (CANL) - I26-16 (BAT)

OK

REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

20.

CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

(a) Disconnect the I231 central gateway ECU (network gateway ECU) connector.

(b) Measure the resistance according to the value(s) in the table below.

*1

DLC3

-

-

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Central Gateway ECU (Network Gateway ECU)

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-9 (CANH) - I26-16 (BAT)

Cable disconnected from negative (-) auxiliary battery terminal

6 kΩ or higher

O227-20 (CANL) - I26-16 (BAT)

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

21.

CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

(a) Disconnect the No. 22 global CAN junction connector.

(b) Measure the resistance according to the value(s) in the table below.

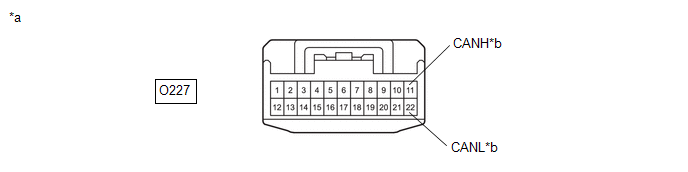

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Central Gateway ECU (Network Gateway ECU)

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-8 (CANH) - O227-19 (CANL)

Cable disconnected from negative (-) auxiliary battery terminal

108 to 132 Ω

NG

GO TO STEP 25

OK

22.

CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

(a) Measure the resistance according to the value(s) in the table below.

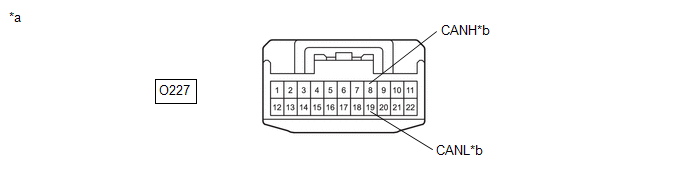

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Vehicle Approaching Speaker Controller

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-11 (CANH) - O227-22 (CANL)

Cable disconnected from negative (-) auxiliary battery terminal

200 Ω or higher

NG

GO TO STEP 26

OK

23.

CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

(a) Measure the resistance according to the value(s) in the table below.

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Tire Pressure Warning ECU and Receiver

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-10 (CANH) - O227-21 (CANL)

Cable disconnected from negative (-) auxiliary battery terminal

200 Ω or higher

NG

GO TO STEP 27

OK

24.

CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

(a) Measure the resistance according to the value(s) in the table below.

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Central Gateway ECU (Network Gateway ECU)

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-9 (CANH) - O227-20 (CANL)

Cable disconnected from negative (-) auxiliary battery terminal

108 to 132 Ω

OK

REPLACE NO. 22 GLOBAL CAN JUNCTION CONNECTOR

NG

GO TO STEP 28

25.

CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

(a) Disconnect the I231 central gateway ECU (network gateway ECU) connector.

(b) Measure the resistance according to the value(s) in the table below.

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Central Gateway ECU (Network Gateway ECU)

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-8 (CANH) - O227-19 (CANL)

Cable disconnected from negative (-) auxiliary battery terminal

1 MΩ or higher

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

26.

CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

(a) Disconnect the I256 vehicle approaching speaker controller connector.

(b) Measure the resistance according to the value(s) in the table below.

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Vehicle Approaching Speaker Controller

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-11 (CANH) - O227-22 (CANL)

Cable disconnected from negative (-) auxiliary battery terminal

1 MΩ or higher

OK

REPLACE VEHICLE APPROACHING SPEAKER CONTROLLER

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

27.

CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

(a) Disconnect the O209 tire pressure warning ECU and receiver connector.

(b) Measure the resistance according to the value(s) in the table below.

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Tire Pressure Warning ECU and Receiver

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-10 (CANH) - O227-21 (CANL)

Cable disconnected from negative (-) auxiliary battery terminal

1 MΩ or higher

OK

REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

28.

CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

(a) Disconnect the I231 central gateway ECU (network gateway ECU) connector.

(b) Measure the resistance according to the value(s) in the table below.

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Central Gateway ECU (Network Gateway ECU)

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-9 (CANH) - O227-20 (CANL)

Cable disconnected from negative (-) auxiliary battery terminal

1 MΩ or higher

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

29.

CHECK FOR OPEN IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

(a) Disconnect the No. 22 global CAN junction connector.

(b) Measure the resistance according to the value(s) in the table below.

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Central Gateway ECU (Network Gateway ECU)

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-8 (CANH) - O227-19 (CANL)

Cable disconnected from negative (-) auxiliary battery terminal

108 to 132 Ω

NG

GO TO STEP 32

OK

30.

CHECK FOR OPEN IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

(a) Measure the resistance according to the value(s) in the table below.

*a

Front view of wire harness connector

(to No. 22 Global CAN Junction Connector)

*b

to Central Gateway ECU (Network Gateway ECU)

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-9 (CANH) - O227-20 (CANL)

Cable disconnected from negative (-) auxiliary battery terminal

108 to 132 Ω

OK

REPLACE NO. 22 GLOBAL CAN JUNCTION CONNECTOR

NG

31.

CHECK FOR OPEN IN CAN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 22 GLOBAL CAN JUNCTION CONNECTOR)

(a) Disconnect the I231 central gateway ECU (network gateway ECU) connector

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-9 (CANH) - I231-10 (CAVH)

Cable disconnected from negative (-) auxiliary battery terminal

Below 1 Ω

O227-20 (CANL) - I231-11 (CAVL)

Cable disconnected from negative (-) auxiliary battery terminal

Below 1 Ω

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 22 GLOBAL CAN JUNCTION CONNECTOR)

32.

CHECK FOR OPEN IN CAN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 22 GLOBAL CAN JUNCTION CONNECTOR)

(a) Disconnect the I231 central gateway ECU (network gateway ECU) connector

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

O227-8 (CANH) - I231-31 (CA7H)

Cable disconnected from negative (-) auxiliary battery terminal

Below 1 Ω

O227-19 (CANL) - I231-32 (CA7L)

Cable disconnected from negative (-) auxiliary battery terminal

Below 1 Ω

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 22 GLOBAL CAN JUNCTION CONNECTOR)

    READ NEXT:

     Check Bus 7 Line

    DESCRIPTION Symptom Trouble Area There are ECUs or sensors that display a communication stop on the bus diagnostic screen. Or, there are ECUs or sensors tha

     Cxpi Communication System

     Precaution

    PRECAUTION PRECAUTION FOR DISCONNECTING CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL NOTICE: After the ignition switch is turned off, there may be a waiting time before disconnecting the ne

    SEE MORE:

     Inspection

    INSPECTION PROCEDURE 1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY (a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester Connection Condition Specified Condition

     Camshaft Position "A" - Timing Over-Retarded Bank 1 (P001200)

    DESCRIPTION Refer to DTC P001001. Click here DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note P001200 Camshaft Position "A" - Timing Over-Retarded Bank 1 With engine warmed up and while driving in urban area (engine speed 4000 rpm or less

    © 2020-2024 Copyright www.tcorollacross.com
