Toyota Corolla Cross: Check Bus 4 Line
DESCRIPTION
|
Symptom |
Trouble Area |
|---|---|
|
There are ECUs or sensors that display a communication stop on the bus diagnostic screen. Or, there are ECUs or sensors that display communication stop history on the "Detail" screen. |
|

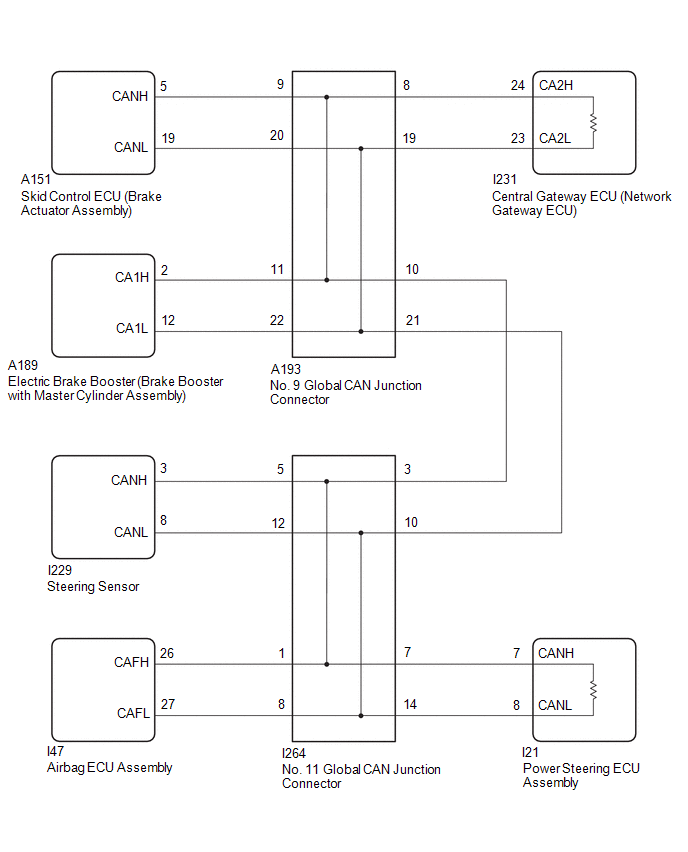

WIRING DIAGRAM
CAUTION / NOTICE / HINT
CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
NOTICE:
- Because the order of diagnosis is important to allow correct diagnosis,
make sure to begin troubleshooting using How to Proceed with Troubleshooting
when CAN communication system related DTCs are output.
Click here
.gif)
- Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
- After the ignition switch is turned off, there may be a waiting time before
disconnecting the negative (-) auxiliary battery terminal.
Click here
- When disconnecting and reconnecting the auxiliary battery.
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
- Some parts must be initialized and set when replacing or removing and installing
parts.
Click here
- After performing repairs, perform the DTC check procedure and confirm that
the DTCs are not output again.
DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.
- After the repair, perform the CAN bus check and check that all the ECUs
and sensors connected to the CAN communication system are displayed as normal.
Click here
HINT:
- Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.
- When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.
PROCEDURE
|
1. |
CHECK FOR OPEN IN CAN MAIN BUS LINES |
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
|
(b) Measure the resistance according to the value(s) in the table below. Standard Resistance:
|
|
| NG | .gif) |
GO TO STEP 47 |
|
.gif)
|
2. |
CHECK FOR SHORT IN CAN BUS LINES |
|
(a) Measure the resistance according to the value(s) in the table below. Standard Resistance:
|
|
| NG | |
GO TO STEP 33 |
|
|
3. |
CHECK FOR SHORT TO +B IN CAN BUS LINE |
(a) Measure the resistance according to the value(s) in the table below.
|

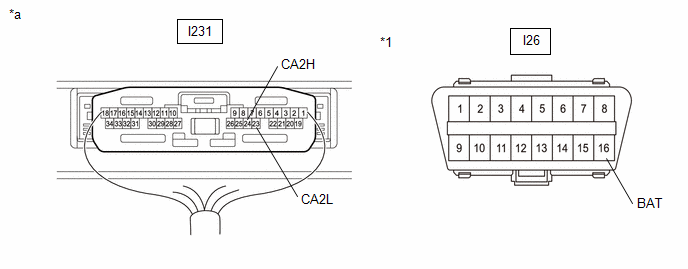

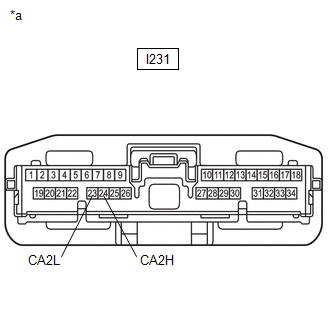

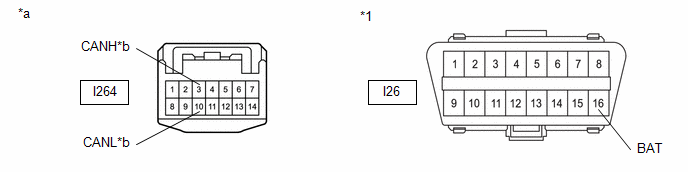

*1 |
DLC3 |
- |
- |
|
*a |

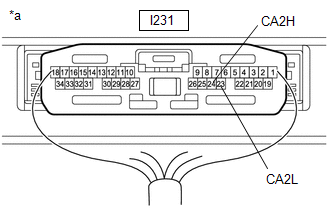

Component with harness connected (Central Gateway ECU (Network Gateway ECU)) |
- |
- |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I231-24 (CA2H) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I231-23 (CA2L) - I26-16 (BAT) |
| NG | |
GO TO STEP 19 |
|
|
4. |
CHECK FOR SHORT TO GND IN CAN BUS LINE |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |

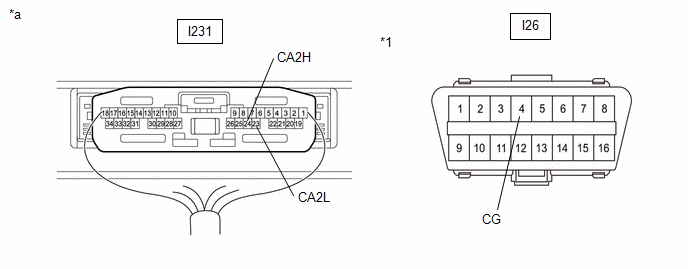

Component with harness connected (Central Gateway ECU (Network Gateway ECU)) |
- |
- |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I231-24 (CA2H) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I231-23 (CA2L) - I26-4 (CG) |
| OK | |
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
|
|
5. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
(a) Disconnect the No. 9 global CAN junction connector.
(b) Measure the resistance according to the value(s) in the table below.
|

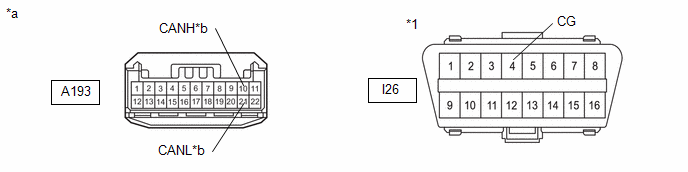

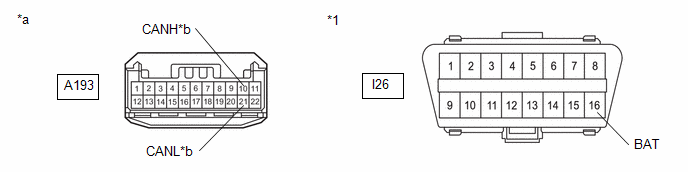

*1 |
DLC3 |
- |
- |
|
*a |

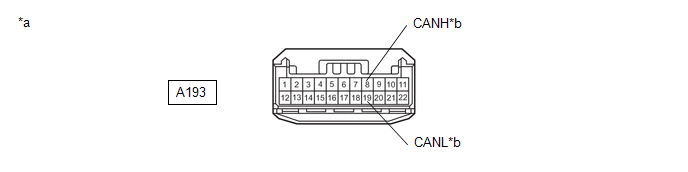

Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Central Gateway ECU (Network Gateway ECU) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|

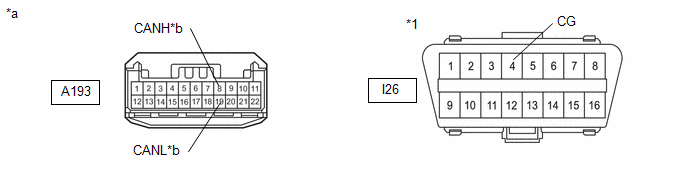

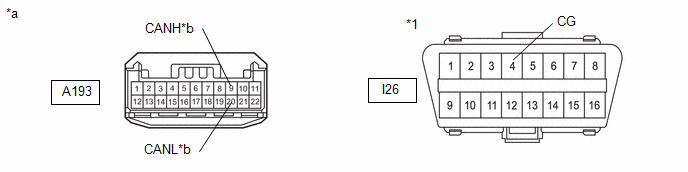

A193-8 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
A193-19 (CANL) - I26-4 (CG) |
| NG | |
GO TO STEP 18 |
|
|
6. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR) |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |

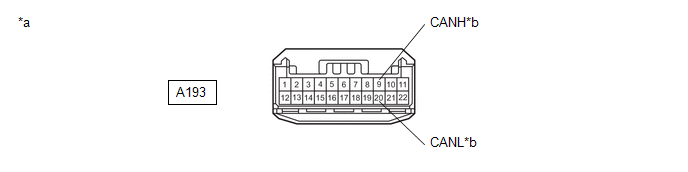

Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to No. 11 Global CAN Junction Connector |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-10 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
A193-21 (CANL) - I26-4 (CG) |
| NG | |
GO TO STEP 11 |
|
|
7. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)) |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |

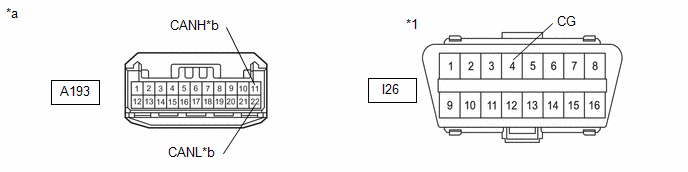

Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Skid Control ECU (Brake Actuator Assembly) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-9 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
A193-20 (CANL) - I26-4 (CG) |
| NG | |
GO TO STEP 9 |
|
|
8. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)) |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Electric Brake Booster (Brake Booster with Master Cylinder Assembly) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-11 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
A193-22 (CANL) - I26-4 (CG) |
| OK | |
REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR |
| NG | |
GO TO STEP 10 |
|
9. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)) |
(a) Disconnect the A151 skid control ECU (brake actuator assembly) connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Skid Control ECU (Brake Actuator Assembly) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-9 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
A193-20 (CANL) - I26-4 (CG) |
| OK | |
REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)) |
|
10. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)) |
(a) Disconnect the A189 electric brake booster (brake booster with master cylinder assembly) connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Electric Brake Booster (Brake Booster with Master Cylinder Assembly) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-11 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
A193-22 (CANL) - I26-4 (CG) |
| OK | |
REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)) |
|
11. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR) |
(a) Disconnect the No. 11 global CAN junction connector.
(b) Measure the resistance according to the value(s) in the table below.
|

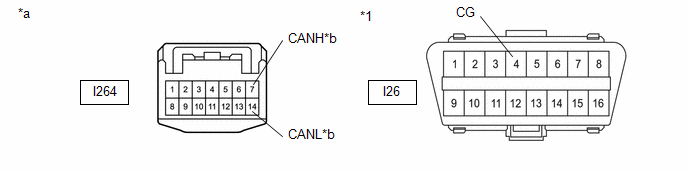

*1 |
DLC3 |
- |
- |
|
*a |

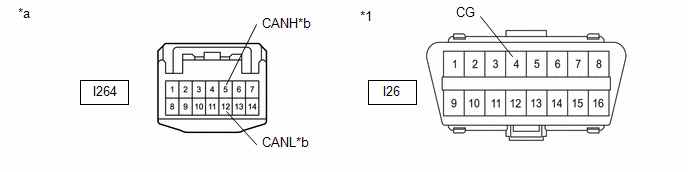

Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to No. 9 Global CAN Junction Connector |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|

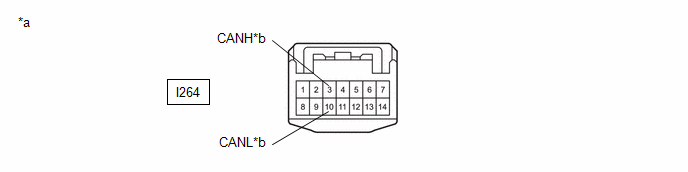

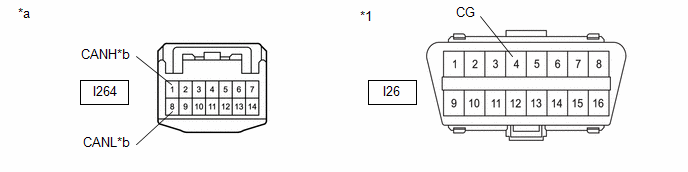

I264-3 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I264-10 (CANL) - I26-4 (CG) |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR) |
|
|
12. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY) |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Power Steering ECU Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|

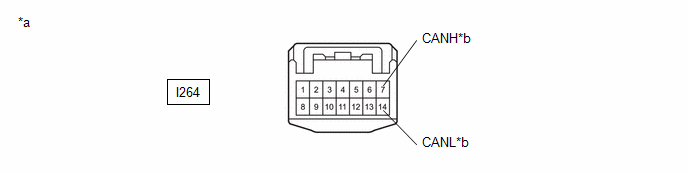

I264-7 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I264-14 (CANL) - I26-4 (CG) |
| NG | |
GO TO STEP 15 |
|
|
13. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR) |
(a) Measure the resistance according to the value(s) in the table below.
|

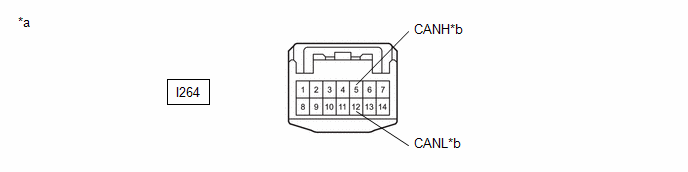

*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Steering Sensor |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-5 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I264-12 (CANL) - I26-4 (CG) |
| NG | |
GO TO STEP 16 |
|
|
14. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY) |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Airbag ECU Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-1 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I264-8 (CANL) - I26-4 (CG) |
| OK | |
REPLACE NO. 11 GLOBAL CAN JUNCTION CONNECTOR |
| NG | |
GO TO STEP 17 |
|
15. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY) |

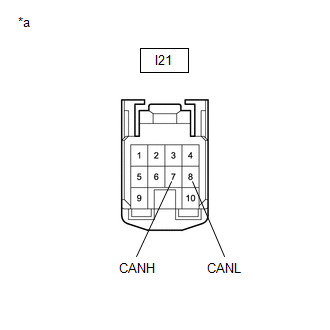

(a) Disconnect the I21 power steering ECU assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
|

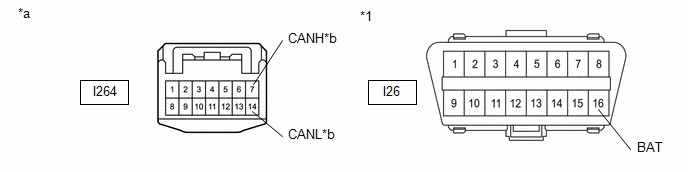

*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Power Steering ECU Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-7 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I264-14 (CANL) - I26-4 (CG) |
| OK | |
REPLACE POWER STEERING ECU ASSEMBLY |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY) |
|
16. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR) |
(a) Disconnect the I229 steering sensor connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Steering Sensor |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-5 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I264-12 (CANL) - I26-4 (CG) |
| OK | |
REPLACE STEERING SENSOR |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR) |
|
17. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY) |
(a) Disconnect the I47 airbag ECU assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Airbag ECU Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-1 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I264-8 (CANL) - I26-4 (CG) |
| OK | |
REPLACE AIRBAG ECU ASSEMBLY |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY) |
|
18. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
(a) Disconnect the I231 central gateway ECU (network gateway ECU) connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |

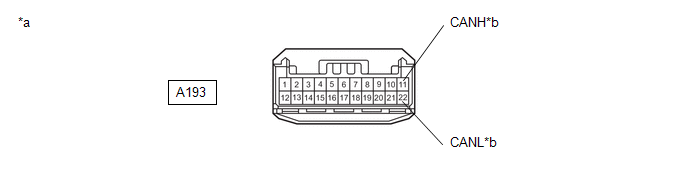

Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Central Gateway ECU (Network Gateway ECU) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-8 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
A193-19 (CANL) - I26-4 (CG) |
| OK | |
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
|
19. |
CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
(a) Disconnect the No. 9 global CAN junction connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Central Gateway ECU (Network Gateway ECU) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-8 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
A193-19 (CANL) - I26-16 (BAT) |
| NG | |
GO TO STEP 32 |
|
|
20. |
CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR) |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to No. 11 Global CAN Junction Connector |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-10 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
A193-21 (CANL) - I26-16 (BAT) |
| NG | |
GO TO STEP 25 |
|
|
21. |
CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)) |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Skid Control ECU (Brake Actuator Assembly) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-9 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
A193-20 (CANL) - I26-16 (BAT) |
| NG | |
GO TO STEP 23 |
|
|
22. |
CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)) |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Electric Brake Booster (Brake Booster with Master Cylinder Assembly) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-11 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
A193-22 (CANL) - I26-16 (BAT) |
| OK | |
REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR |
| NG | |
GO TO STEP 24 |
|
23. |
CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)) |
(a) Disconnect the A151 skid control ECU (brake actuator assembly) connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Skid Control ECU (Brake Actuator Assembly) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-9 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
A193-20 (CANL) - I26-16 (BAT) |
| OK | |
REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)) |
|
24. |
CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)) |
(a) Disconnect the A189 electric brake booster (brake booster with master cylinder assembly) connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Electric Brake Booster (Brake Booster with Master Cylinder Assembly) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-11 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
A193-22 (CANL) - I26-16 (BAT) |
| OK | |
REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)) |
|
25. |
CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR) |
(a) Disconnect the No. 11 global CAN junction connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |

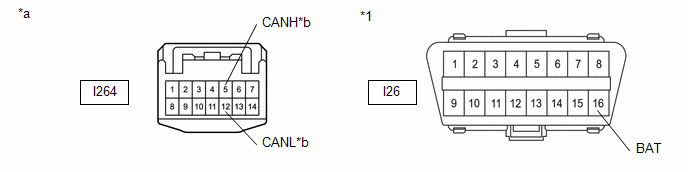

Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to No. 9 Global CAN Junction Connector |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-3 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I264-10 (CANL) - I26-16 (BAT) |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR) |
|
|
26. |
CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY) |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Power Steering ECU Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-7 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I264-14 (CANL) - I26-16 (BAT) |
| NG | |
GO TO STEP 29 |
|
|
27. |
CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR) |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Steering Sensor |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-5 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I264-12 (CANL) - I26-16 (BAT) |
| NG | |
GO TO STEP 30 |
|
|
28. |
CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY) |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Airbag ECU Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-1 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I264-8 (CANL) - I26-16 (BAT) |
| OK | |
REPLACE NO. 11 GLOBAL CAN JUNCTION CONNECTOR |
| NG | |
GO TO STEP 31 |
|
29. |
CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY) |
(a) Disconnect the I21 power steering ECU assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Power Steering ECU Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-7 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I264-14 (CANL) - I26-16 (BAT) |
| OK | |
REPLACE POWER STEERING ECU ASSEMBLY |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY) |
|
30. |
CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR) |
(a) Disconnect the I229 steering sensor connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Steering Sensor |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-5 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I264-12 (CANL) - I26-16 (BAT) |
| OK | |
REPLACE STEERING SENSOR |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR) |
|
31. |
CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY) |
(a) Disconnect the I47 airbag ECU assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |

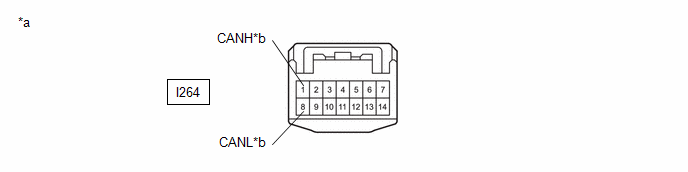

Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Airbag ECU Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-1 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I264-8 (CANL) - I26-16 (BAT) |
| OK | |
REPLACE AIRBAG ECU ASSEMBLY |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY) |
|
32. |
CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
(a) Disconnect the I231 central gateway ECU (network gateway ECU) connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Central Gateway ECU (Network Gateway ECU) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-8 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
A193-19 (CANL) - I26-16 (BAT) |
| OK | |
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
|
33. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
(a) Disconnect the No. 9 global CAN junction connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*a |

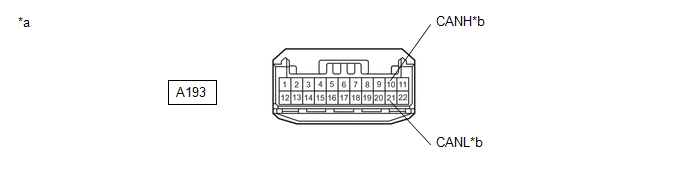

Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Central Gateway ECU (Network Gateway ECU) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-8 (CANH) - A193-19 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
108 to 132 Ω |
| NG | |
GO TO STEP 46 |
|
|
34. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR) |
(a) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to No. 11 Global CAN Junction Connector |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-10 (CANH) - A193-21 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
108 to 132 Ω |
| NG | |
GO TO STEP 39 |
|
|
35. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)) |
(a) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Skid Control ECU (Brake Actuator Assembly) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-9 (CANH) - A193-20 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
| NG | |
GO TO STEP 37 |
|
|
36. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)) |
(a) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Electric Brake Booster (Brake Booster with Master Cylinder Assembly) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-11 (CANH) - A193-22 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
| OK | |
REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR |
| NG | |
GO TO STEP 38 |
|
37. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)) |
(a) Disconnect the A151 skid control ECU (brake actuator assembly) connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Skid Control ECU (Brake Actuator Assembly) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-9 (CANH) - A193-20 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
1 MΩ or higher |
| OK | |
REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)) |
|
38. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)) |
(a) Disconnect the A189 electric brake booster (brake booster with master cylinder assembly) connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Electric Brake Booster (Brake Booster with Master Cylinder Assembly) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-11 (CANH) - A193-22 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
1 MΩ or higher |
| OK | |
REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)) |
|
39. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR) |
(a) Reconnect the A193 No. 9 global CAN junction connector.
(b) Disconnect the No. 11 global CAN junction connector.
(c) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to No. 9 Global CAN Junction Connector |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-3 (CANH) - I264-10 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
108 to 132 Ω |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR) |
|
|
40. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY) |
(a) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Power Steering ECU Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-7 (CANH) - I264-14 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
108 to 132 Ω |
| NG | |
GO TO STEP 43 |
|
|
41. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR) |
(a) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Steering Sensor |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-5 (CANH) - I264-12 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
| NG | |
GO TO STEP 44 |
|
|
42. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY) |
(a) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Airbag ECU Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-1 (CANH) - I264-8 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
| OK | |
REPLACE NO. 11 GLOBAL CAN JUNCTION CONNECTOR |
| NG | |
GO TO STEP 45 |
|
43. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY) |
(a) Disconnect the I21 power steering ECU assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Power Steering ECU Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-7 (CANH) - I264-14 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
1 MΩ or higher |
| OK | |
REPLACE POWER STEERING ECU ASSEMBLY |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY) |
|
44. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR) |
(a) Disconnect the I229 steering sensor connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Steering Sensor |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-5 (CANH) - I264-12 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
1 MΩ or higher |
| OK | |
REPLACE STEERING SENSOR |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR) |
|
45. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY) |
(a) Disconnect the I47 airbag ECU assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Airbag ECU Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-1 (CANH) - I264-8 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
1 MΩ or higher |
| OK | |
REPLACE AIRBAG ECU ASSEMBLY |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY) |
|
46. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
(a) Disconnect the I231 central gateway ECU (network gateway ECU) connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Central Gateway ECU (Network Gateway ECU) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-8 (CANH) - A193-19 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
1 MΩ or higher |
| OK | |
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
|
47. |
CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
(a) Disconnect the central gateway ECU (network gateway ECU) connector.
|
(b) Measure the resistance according to the value(s) in the table below. Standard Resistance:
|
|
| OK | |
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
|
|
48. |
CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
(a) Reconnect the I231 central gateway ECU (network gateway ECU) connector.
(b) Disconnect the No. 9 global CAN junction connector.
(c) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to Central Gateway ECU (Network Gateway ECU) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-8 (CANH) - A193-19 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
108 to 132 Ω |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
|
|
49. |
CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR) |
(a) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 9 Global CAN Junction Connector) |
*b |
to No. 11 Global CAN Junction Connector |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A193-10 (CANH) - A193-21 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
108 to 132 Ω |
| OK | |
REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR |
|
|
50. |
CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR) |
(a) Reconnect the A193 No. 9 global CAN junction connector.
(b) Disconnect the No. 11 global CAN junction connector.
(c) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to No. 9 Global CAN Junction Connector |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-3 (CANH) - I264-10 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
108 to 132 Ω |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR) |
|
|
51. |
CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY) |
(a) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 11 Global CAN Junction Connector) |
*b |
to Power Steering ECU Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I264-7 (CANH) - I264-14 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
108 to 132 Ω |
| OK | |
REPLACE NO. 11 GLOBAL CAN JUNCTION CONNECTOR |
|
|
52. |
CHECK FOR OPEN IN CAN MAIN BUS LINES (POWER STEERING ECU ASSEMBLY) |
(a) Reconnect the I264 No. 11 global CAN junction connector.
(b) Disconnect the power steering ECU assembly connector.
|
(c) Measure the resistance according to the value(s) in the table below. Standard Resistance:
|
|
| OK | |
REPLACE POWER STEERING ECU ASSEMBLY |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (POWER STEERING ECU ASSEMBLY - NO. 11 GLOBAL CAN JUNCTION CONNECTOR) |
READ NEXT:
Check Bus 5 Line
DESCRIPTION
Symptom
Trouble Area
There are ECUs or sensors that display a communication stop on the bus
diagnostic screen. Or, there are ECUs or sensors tha
Check Bus 6 Line
DESCRIPTION
Symptom
Trouble Area
There are ECUs or sensors that display a communication stop on the bus
diagnostic screen. Or, there are ECUs or sensors tha
Check Bus 7 Line
DESCRIPTION
Symptom
Trouble Area
There are ECUs or sensors that display a communication stop on the bus
diagnostic screen. Or, there are ECUs or sensors tha
SEE MORE:
General maintenance
Listed below are the general
maintenance items that
should be performed at the
intervals specified in the
"Owner's Warranty Information
Booklet" or "Owner's
Manual Supplement/Scheduled
Maintenance Guide". It
is recommended that any
problem you notice should
be brought to the attention
of your Toyota
Brake Warning Light does not Come ON
DESCRIPTION
The skid control ECU (brake actuator assembly) controls the
brake system warning light (red indicator) in the combination meter assembly via
CAN communication.
PROCEDURE
1.
INSPECT COMBINATION METER ASSEMBLY
(a) Perform the Active Test of the combi
