Toyota Corolla Cross: Back Door Closer General Electrical Failure (B225001)

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Door / Hatch / Power Back Door System / Back Door Closer General Electrical Failure (B225001)

DESCRIPTION

The multiplex network door ECU receives signals from the latch switch, initial switch, pawl switch and back door courtesy switch, which are built into the back door lock assembly. Based on these switch signals, the latch position of the back door lock with courtesy light switch assembly is determined.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B225001

Back Door Closer General Electrical Failure

While the back door closer is operating, a malfunction is detected in position information from the initial switch within a specified amount of time.

  • Back door lock with courtesy light switch assembly
  • Harness or connector
  • Multiplex network door ECU

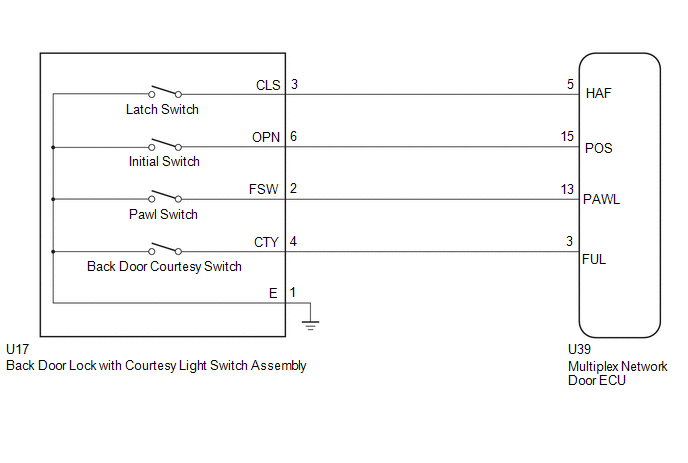

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

If the replacement, removal and installation of the multiplex network door ECU or disconnection of the connectors of the multiplex network door ECU has been performed, initialize the power back door system.

Click here

PROCEDURE

1.

READ VALUE USING GTS

(a) Read the Data List according to the display on the GTS.

Body Electrical > Back Door > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Closer Position Switch

Initial switch signal

ON or OFF

OFF: Back door lock sector gear out of center position (Initial switch off)

-

Body Electrical > Back Door > Data List

Tester Display

Closer Position Switch

Result

Proceed to

The value of Closer Position Switch is OFF

A

None of the above conditions are met

B

B

GO TO STEP 3

A

2.

READ VALUE USING GTS

(a) Read the Data List according to the display on the GTS.

Body Electrical > Back Door > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Closer Position Switch

Initial switch signal

ON or OFF

ON: Back door lock sector gear in center position (Initial switch on)

-

Body Electrical > Back Door > Data List

Tester Display

Closer Position Switch

Result

Proceed to

The value of Closer Position Switch is ON

A

None of the above conditions are met

B

A

REPLACE MULTIPLEX NETWORK DOOR ECU

B

3.

INSPECT BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

Click here

NG

REPLACE BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

OK

4.

CHECK HARNESS AND CONNECTOR (BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY - MULTIPLEX NETWORK DOOR ECU AND BODY GROUND)

(a) Disconnect the U17 back door lock with courtesy light switch assembly connector.

(b) Disconnect the U39 multiplex network door ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

U17-6 (OPN) - U39-15 (POS)

Always

Below 1 Ω

U17-1 (E) - Body ground

Always

Below 1 Ω

U17-6 (OPN) or U39-15 (POS) - Body ground

Always

10 kΩ or higher

OK

REPLACE MULTIPLEX NETWORK DOOR ECU

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
