Toyota Corolla Cross: Adjustment

ADJUSTMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after completing the front wheel alignment procedure are shown below.

PROCEDURE

1. INSPECT TIRES

Click here

2. MEASURE VEHICLE HEIGHT

NOTICE:

• Before inspecting the wheel alignment, first inspect the vehicle height.
• Be sure to perform measurement on a level surface.
• If it is necessary to go under the vehicle for measurement, confirm that the parking brake is applied and the vehicle is secured with chocks.
• Inspect while the vehicle is unloaded.
• The standard value shown here is a value that is used for performing a wheel alignment and does not indicate the height of an actual vehicle.

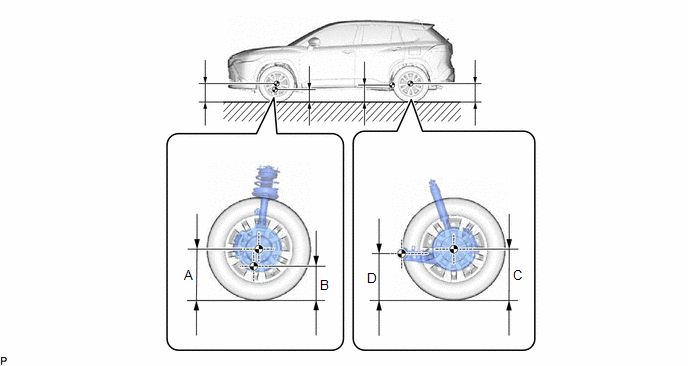

(a) for 2WD:

(1) Bounce the vehicle up and down at the corners to stabilize the suspension.

(2) Measure the vehicle height.

• A: Ground clearance of front wheel center
• B: Ground clearance of front lower No. 1 suspension arm bushing set bolt center
• C: Ground clearance of rear wheel center
• D: Ground clearance of rear axle beam bushing set bolt center

Vehicle Height (Unloaded Vehicle):

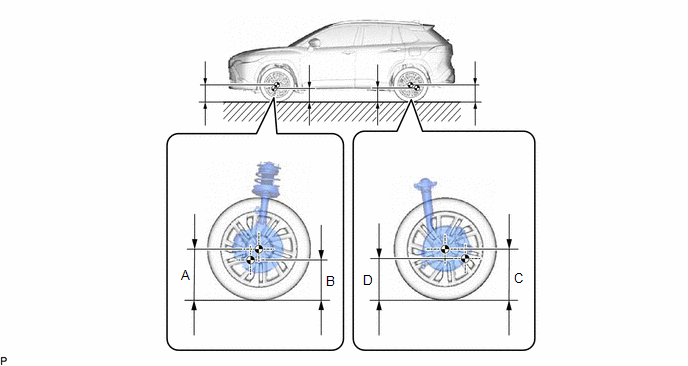

(b) for AWD:

(1) Bounce the vehicle up and down at the corners to stabilize the suspension.

(2) Measure the vehicle height.

• A: Ground clearance of front wheel center
• B: Ground clearance of front lower No. 1 suspension arm bushing set bolt center
• C: Ground clearance of rear wheel center
• D: Ground clearance of rear No. 2 suspension arm assembly set bolt center

Vehicle Height (Unloaded Vehicle):

3. INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION

NOTICE:

Inspect while the vehicle is unloaded.

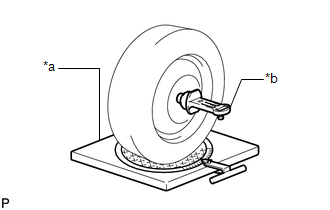

(a) Install a camber-caster-kingpin gauge and place the front wheels on the center of a turning radius gauge.

*a Turning Radius Gauge *b Camber-caster-kingpin Gauge

(b) Inspect the camber, caster and steering axis inclination.

Camber (Unloaded Vehicle):

Caster (Unloaded Vehicle):

Steering Axis Inclination (Unloaded Vehicle):

4. ADJUST CAMBER

NOTICE:

Inspect toe-in after the camber has been adjusted.

(a) Remove the front wheel.

Click here

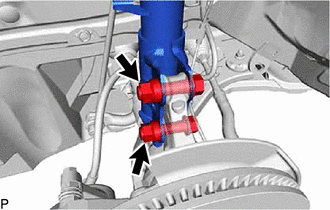

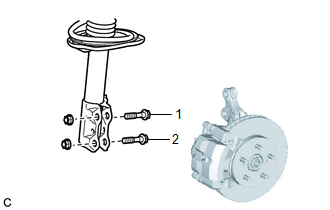

(b) Remove the 2 nuts on the lower side of the front shock absorber assembly. NOTICE: Keep the bolts inserted.

(c) Remove the top and bottom bolts one at a time and confirm that the steering knuckle can move freely in the front shock absorber assembly.

HINT:

• Reinstall each bolt after removing it and confirming steering knuckle movement.
• If the steering knuckle does not move freely in the front shock absorber assembly, clean the contact surfaces of the front shock absorber assembly and the steering knuckle.

(d) Temporarily install the 2 nuts. (Step A)

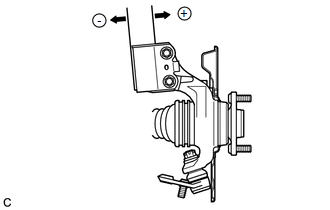

(e) Fully push or pull the front axle hub in the direction of the required adjustment. (Step B)

(f) Tighten the 2 nuts. Torque: 270 N·m {2753 kgf·cm, 199 ft·lbf} NOTICE: Keep the bolts from rotating when tightening the nuts.

(g) Install the front wheel.

Click here

(h) Bounce the vehicle up and down at the corners to stabilize the suspension.

(i) Check the camber.

Camber (Unloaded Vehicle):

(1) If the measured value is not within the specification, calculate the required adjustment amount using the formula below. Camber adjustment amount = center of the specified range - measured value Check the combination of the installed bolts. Select appropriate bolts from the tables below to adjust the camber to the specified values. HINT: Try to adjust the camber to the center of the specified values. To move the axle hub toward (+) in step B To move the axle hub toward (-) in step B Refer to table (1) (To move the axle hub toward the positive side) Refer to table (2) (To move the axle hub toward the negative side) The vehicle body and suspension may be damaged if the camber cannot be correctly adjusted according to the table above. NOTICE: Replace the nut with a new one when replacing the bolt.

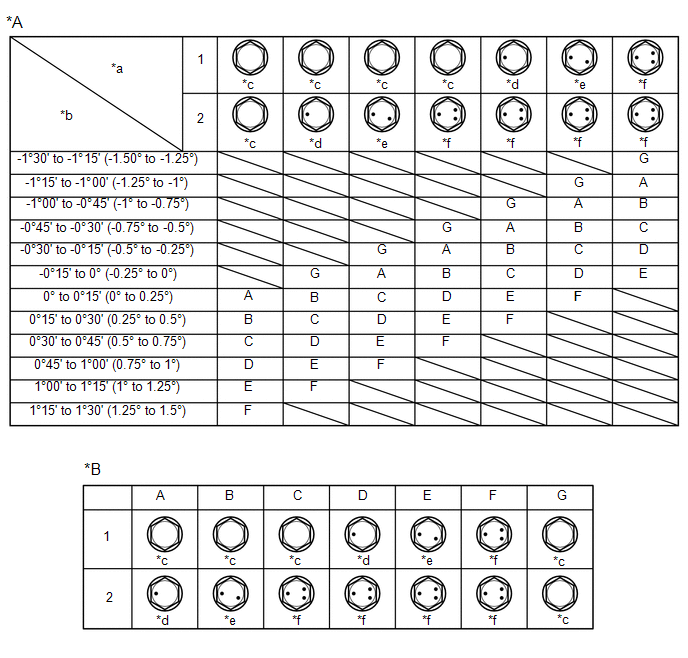

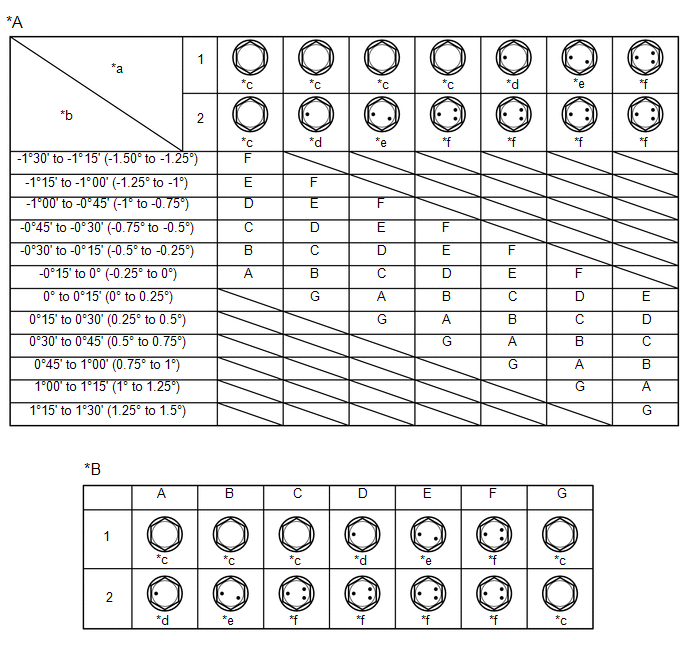

(2) Table (1) (To move the axle hub toward the positive side)

(3) Table (2) (To move the axle hub toward the negative side)

(j) If the camber was out of adjustment in the previous step, perform the adjust camber steps mentioned above. In step A, replace the existing bolts with the selected bolts.

HINT:

Replace one bolt at a time when replacing both bolts.

5. INSPECT TOE-IN

NOTICE:

Inspect while the vehicle is unloaded.

(a) Bounce the vehicle up and down at the corners to stabilize the suspension.

(b) Release the parking brake and move the shift lever to N.

(c) Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step C)

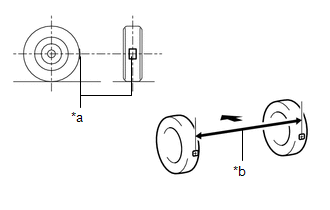

(d) Put tread center marks on the rearmost points of the front wheels and measure the distance between the marks (dimension B).

*a	Tread Center Mark
*b	Dimension B
	Front of the Vehicle

(e) Slowly push the vehicle straight ahead to cause the front wheels to rotate 180°. Use the front tire valve as a reference point.

HINT:

Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from step C again.

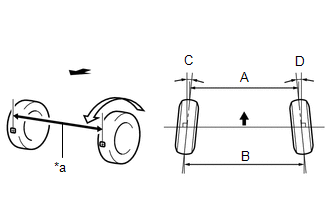

(f) Measure the distance between the tread center marks on the front of the wheels (dimension A).

*a	Dimension A
	Front of the Vehicle

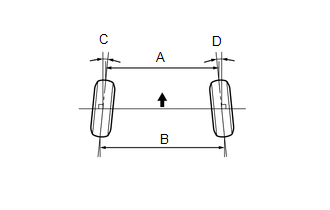

Toe-in (Unloaded Vehicle):

HINT:

Measure "B - A" only when "C + D" cannot be measured.

(g) If the toe-in is not within the specified range, adjust it at the steering rack ends.

6. ADJUST TOE-IN

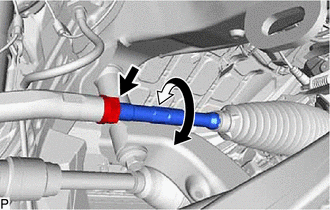

(a) Separate the steering rack boot clips from the steering rack boot.

(b) Loosen the tie rod end sub-assembly lock nuts.

(c) Turn the right and left steering rack ends by an equal amount to adjust the toe-in.

Front of the Vehicle

HINT:

• If the toe-in measurement is more than the specified range, shorten the left and right steering rack ends until the measurement is within the specified range.
• If the toe-in measurement is less than the specified range, extend the left and right steering rack ends until the measurement is within the specified range.

(d) Measure the toe-in.

Toe-in (Unloaded Vehicle):

HINT:

Perform adjustments so that the value is as close as possible to the median of the specified range.

(e) Tighten the tie rod end sub-assembly lock nuts.

(1) for LH side:

Click here

(2) for RH side:

HINT:

Perform the same procedure as for the LH side.

(f) Place the steering rack boots on the seats and install the steering rack boot clips.

(1) for LH side:

Click here

(2) for RH side:

HINT:

Perform the same procedure as for the LH side.

7. INSPECT WHEEL ANGLE

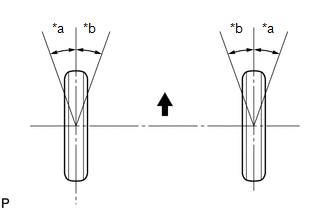

(a) Put tread center marks on the rearmost points of a turning radius gauge.

*a	Inside
*b	Outside
	Front of the Vehicle

(b) Turn the steering wheel fully to the left and right and measure the turning angle.

NOTICE:

Inspect while the vehicle is unloaded.

Wheel Turning Angle:

(c) If the right and left inside wheel angles differ from the specified value, check and adjust the right and left steering rack end lengths.

8. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

Click here

9. PERFORM CALIBRATION

• for HEV Model:

  Click here

• for Gasoline Model:

  Click here

10. PERFORM RESET MEMORY (for Gasoline Model AWD)

Click here
