Toyota Corolla Cross: Transmission Range Sensor "A" Circuit Open (P070513,P070562)

Toyota Corolla Cross (2022-2024) Service Manual / Drivetrain / K120f (cvt) / Continuously Variable Transaxle System / Transmission Range Sensor "A" Circuit Open (P070513,P070562)

DESCRIPTION

The park/neutral position switch assembly and transmission control switch (shift lock control unit assembly) detect the shift lever position and send signals to the TCM.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P070513

Transmission Range Sensor "A" Circuit Open

P, R, N and D input signals are all OFF simultaneously for 60 seconds or more (2-trip detection logic).
  • Wire harness or connector
  • Park/neutral position switch assembly
  • TCM

Comes on

DTC stored

SAE Code:

P0705

P070562

Transmission Range Sensor "A" Signal Compare Failure

Either of the following conditions is met for 2 seconds or more (2-trip detection logic).

  • 2 or more of the following signals are ON simultaneously*1:
    • P or N input signal
    • R input signal
    • D input signal
  • Any of the following signals are ON simultaneously with the shift lever in M*2:
    • P input signal
    • R input signal
    • N input signal
  • Wire harness or connector
  • Park/neutral position switch assembly
  • Transmission control switch (Shift lock control unit assembly)
  • TCM

Comes on

DTC stored

SAE Code:

P0705

MONITOR DESCRIPTION

These DTCs indicate a problem with the park/neutral position switch assembly, transmission control switch or wire harness of their circuits.

The park/neutral position switch assembly detects the shift lever position and sends a signal to the TCM. For safety, the park/neutral position switch assembly detects the shift lever position so that the engine can be started only when the shift lever is in P or N.

The park/neutral position switch assembly sends a signal to the TCM according to the shift lever position (P, R, N or D).

The TCM determines that there is a problem with the switch or related parts if it receives more than 1 position signal simultaneously. The TCM will then illuminate the MIL and store a DTC.

MONITOR STRATEGY

Related DTCs

P0705: Transmission range switch/Verify switch input

Required sensors/Components

Park/neutral position switch assembly

Transmission control switch

Frequency of operation

Continuous

Duration

Condition (A): 2 sec.

Condition (B): 2 sec.

Condition (C): 60 sec.

MIL operation

2 driving cycles

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

All

Ignition switch

ON

Auxiliary battery voltage

8 V or more

Starter

OFF
Condition (B)

One of the following conditions is met:

-

P position switch

ON

N position switch

ON

R position switch

ON

TYPICAL MALFUNCTION THRESHOLDS

Either of the following conditions is met: Condition (A), (B) or (C)

Condition (A)

Any two of the following conditions are met:

Conditions 1, 2 and 3

1. One of the following conditions is met:

Conditions (a) or (b)

(a) P position switch

ON

(b) N position switch

ON

2. R position switch

ON

3. D position switch

ON
Condition (B)

S position switch

ON
Condition (C)

All of the following conditions are met:

-

P position switch

OFF

N position switch

OFF

R position switch

OFF

D position switch

OFF

CONFIRMATION DRIVING PATTERN

HINT:

  • After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
  • When clearing the permanent DTCs, refer to the Clear Permanent DTC procedure.

    Click here

  1. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  2. Turn the ignition switch off and wait for 2 minutes or more.
  3. Turn the ignition switch to ON and turn the GTS on.
  4. Wait with the shift lever in each position (P, R, N or D) for 60 seconds or more each with the ignition switch to ON. [*1]
  5. Wait for 2 seconds or more with the shift lever in M. [*2]

    HINT:

    [*1] and [*2]: Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  6. Enter the following menus: Powertrain / Transmission / Utility / All Readiness.
  7. Input the DTC: P070513 or P070562.
  8. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL
    • DTC judgment completed
    • System normal

    ABNORMAL
    • DTC judgment completed
    • System abnormal

    INCOMPLETE
    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    N/A
    • Unable to perform DTC judgment
    • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE or N/A, perform the normal judgment procedure again.

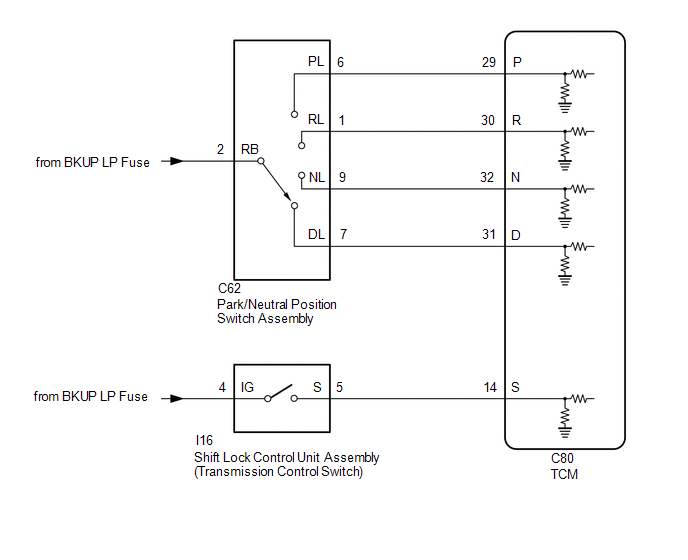

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Perform the universal trip to clear permanent DTCs.

    Click here

  • Perform registration and/or initialization when parts related to the continuously variable transaxle system are replaced.

    Click here

  • Check that no DTCs are stored after performing initialization.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1.

READ VALUE USING GTS (SHIFT SW STATUS)

(a) Enter the following menus:

(b) According to the display on the GTS, read the Data List.

Powertrain > Transmission > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Shift SW Status (P Range)

Park/neutral position switch assembly status

OFF or ON
  • OFF: Shift lever not in P
  • ON: Shift lever in P

When the shift lever position displayed on the GTS differs from the actual position, the adjustment of the park/neutral position switch assembly or shift cable may be incorrect.

Shift SW Status (R Range)

Park/neutral position switch assembly status

OFF or ON
  • OFF: Shift lever not in R
  • ON: Shift lever in R

When the shift lever position displayed on the GTS differs from the actual position, the adjustment of the park/neutral position switch assembly or shift cable may be incorrect.

Shift SW Status (N Range)

Park/neutral position switch assembly status

OFF or ON
  • OFF: Shift lever not in N
  • ON: Shift lever in N

When the shift lever position displayed on the GTS differs from the actual position, the adjustment of the park/neutral position switch assembly or shift cable may be incorrect.

Shift SW Status (D Range)

Park/neutral position switch assembly status

OFF or ON
  • OFF: Shift lever not in D
  • ON: Shift lever in D

When the shift lever position displayed on the GTS differs from the actual position, the adjustment of the park/neutral position switch assembly or shift cable may be incorrect.
Powertrain > Transmission > Data List

Tester Display

Shift SW Status (P Range)

Shift SW Status (R Range)

Shift SW Status (N Range)

Shift SW Status (D Range)

Result

Proceed to

Data List values are normal

A

Data List values are not normal

B
B

GO TO STEP 7

A

2.

READ VALUE USING GTS (SHIFT SW STATUS (S RANGE))

(a) Enter the following menus:

(b) According to the display on the GTS, read the Data List.

Powertrain > Transmission > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Shift SW Status (S Range)

Transmission control switch status

OFF or ON
  • ON: Shift lever in M, "+" or "-"
  • OFF: Shift lever not in M, "+" or "-"

-
Powertrain > Transmission > Data List

Tester Display

Shift SW Status (S Range)

Result

Proceed to

Data List value is normal

A

Data List value is not normal

B
A

CHECK FOR INTERMITTENT PROBLEMS

Click here

Click here

B

3.

CHECK HARNESS AND CONNECTOR (SHIFT LOCK CONTROL UNIT ASSEMBLY (POWER SOURCE))

(a) Disconnect the I16 shift lock control unit assembly connector.

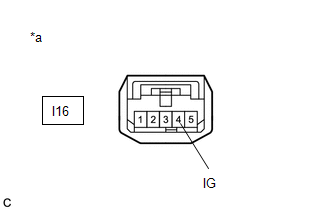

*a

Front view of wire harness connector

(to Shift Lock Control Unit Assembly (Transmission Control Switch))

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

I16-4 (IG) - Body ground

Ignition switch ON

11 to 14 V

I16-4 (IG) - Body ground

Ignition switch off

Below 1 V

(c) Connect the I16 shift lock control unit assembly connector.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (SHIFT LOCK CONTROL UNIT ASSEMBLY (POWER SOURCE))
OK

4.

INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY (TRANSMISSION CONTROL SWITCH)

(a) Disconnect the shift lock control unit assembly connector.

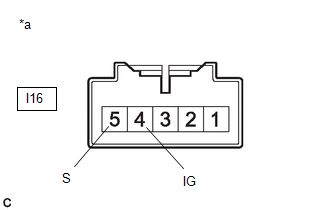

*a

Component without harness connected

(Shift Lock Control Unit Assembly (Transmission Control Switch ))

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

4 (IG) - 5 (S)

Shift lever in M, "+" or "- "

Below 1 Ω

4 (IG) - 5 (S)

Shift lever not in M, "+" or "-"

10 kΩ or higher

(c) Connect the shift lock control unit assembly connector.

NG

REPLACE SHIFT LOCK CONTROL UNIT ASSEMBLY

OK

5.

CHECK HARNESS AND CONNECTOR (SHIFT LOCK CONTROL UNIT ASSEMBLY - TCM)

(a) Disconnect the I16 shift lock control unit assembly connector.

(b) Disconnect the C80 TCM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I16-5 (S) - C80-14 (S)

Always

Below 1 Ω

I16-5 (S) or C80-14 (S) - Body ground

Always

10 kΩ or higher

(d) Connect the C80 TCM connector.

(e) Connect the I16 shift lock control unit assembly connector.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (SHIFT LOCK CONTROL UNIT ASSEMBLY - TCM)
OK

6.

REPLACE TCM

Click here

NEXT

PERFORM REGISTRATION AND INITIALIZATION

for Registration: Click here

for Initialization: Click here

7.

CHECK HARNESS AND CONNECTOR (AUXILIARY BATTERY - PARK/NEUTRAL POSITION SWITCH ASSEMBLY)

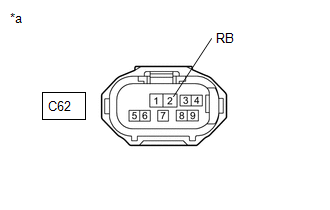

*a

Front view of wire harness connector

(to Park/Neutral Position Switch Assembly)

(a) Disconnect the C62 park/neutral position switch assembly connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

C62-2 (RB) - Body ground

Ignition switch ON

11 to 14 V

C62-2 (RB) - Body ground

Ignition switch off

Below 1 V

(c) Connect the C62 park/neutral position switch assembly connector.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (AUXILIARY BATTERY - PARK/NEUTRAL POSITION SWITCH ASSEMBLY)
OK

8.

INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Disconnect the park/neutral position switch assembly connector.

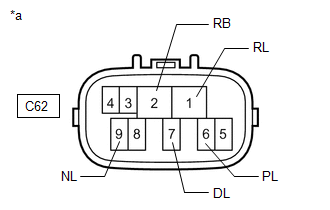

*a

Component without harness connected

(Park/Neutral Position Switch Assembly)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

2 (RB) - 6 (PL)

Shift lever in P

Below 1 Ω

Shift lever not in P

10 kΩ or higher

2 (RB) - 1 (RL)

Shift lever in R

Below 1 Ω

Shift lever not in R

10 kΩ or higher

2 (RB) - 9 (NL)

Shift lever in N

Below 1 Ω

Shift lever not in N

10 kΩ or higher

2 (RB) - 7 (DL)

Shift lever in D, M, "+" or "-"

Below 1 Ω

Shift lever not in D, M, "+" or "-"

10 kΩ or higher

(c) Connect the park/neutral position switch assembly connector.

NG

REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

OK

9.

CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY - TCM)

(a) Disconnect the C62 park/neutral position switch assembly connector.

(b) Disconnect the C80 TCM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C62-6 (PL) - C80-29 (P)

Always

Below 1 Ω

C62-1 (RL) - C80-30 (R)

Always

Below 1 Ω

C62-9 (NL) - C80-32 (N)

Always

Below 1 Ω

C62-7 (DL) - C80-31 (D)

Always

Below 1 Ω

C62-6 (PL) or C80-29 (P) - Body ground and other terminals

Always

10 kΩ or higher

C62-1 (RL) or C80-30 (R) - Body ground and other terminals

Always

10 kΩ or higher

C62-9 (NL) or C80-32 (N) - Body ground and other terminals

Always

10 kΩ or higher

C62-7 (DL) or C80-31 (D) - Body ground and other terminals

Always

10 kΩ or higher

(d) Connect the C80 TCM connector.

(e) Connect the C62 park/neutral position switch assembly connector.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY - TCM)
OK

10.

REPLACE TCM

Click here

NEXT

PERFORM REGISTRATION AND INITIALIZATION

for Registration: Click here

for Initialization: Click here

    READ NEXT:

     Transmission Fluid Temperature Sensor "A" Circuit Range/Performance (P071000)

    DESCRIPTION The CVT fluid temperature sensor converts the fluid temperature into a resistance value which is detected by the TCM. The sensor resistance changes with the CVT fluid temperature. As t

     Transmission Fluid Temperature Sensor "A" Circuit Short To Ground (P071011)

    DESCRIPTION The CVT fluid temperature sensor converts the CVT fluid temperature into a resistance value for use by the TCM. The sensor resistance changes with the CVT fluid temperature. As the tem

     Transmission Fluid Temperature Sensor "A" Circuit Short to Battery or Open (P071015)

    DESCRIPTION The CVT fluid temperature sensor converts the CVT fluid temperature into a resistance value for use by the TCM. The sensor resistance changes with the CVT fluid temperature. As the tem

    SEE MORE:

     Leveling Motor LH Missing Message (B242487,B242587)

    DESCRIPTION Each headlight ECU sub-assembly and headlight swivel and leveling motor communicate via LIN communication. The headlight swivel and leveling motor operates according to power supplied and automatic headlight beam level control signals from its respective headlight ECU sub-assembly and s

     Right Rear Wheel Speed Sensor Supply Voltage Circuit Short to Ground or Open (C14E914)

    DESCRIPTION Refer to DTC C051212 Click here DTC No. Detection Item DTC Detection Condition Trouble Area MIL DTC Output from Note C14E914 Right Rear Wheel Speed Sensor Supply Voltage Circuit

    © 2020-2024 Copyright www.tcorollacross.com
