Toyota Corolla Cross: Tire information

Toyota Corolla Cross (2022-2024) Owner's Manual / Vehicle specifications / Specifications / Tire information

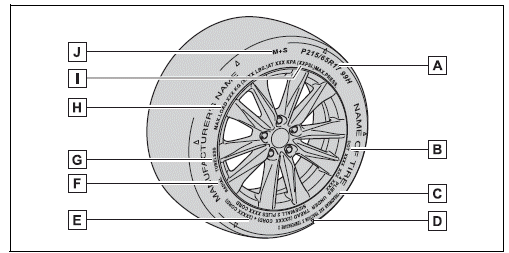

Typical tire symbols

Full-size tire

Specifications

  1. Tire size
  2. DOT and Tire Identification Number (TIN)
  3. Uniform tire quality grading
    For details, see "Uniform Tire Quality Grading" that follows.
  4. Location of treadwear indicators
  5. Tire ply composition and materials
    Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies in a tire.
  6. Radial tires or bias-ply tires
    A radial tire has "RADIAL" on the sidewall. A tire not marked "RADIAL" is a bias-ply tire.
  7. TUBELESS or TUBE TYPE
    A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a tube inside the tire and the tube maintains the air pressure.
  8. Load limit at maximum cold tire inflation pressure
  9. Maximum cold tire inflation pressure
    This means the pressure to which a tire may be inflated.
  10. Summer tires or all season tires

An all season tire has "M+S" on the sidewall. A tire not marked "M+S" is a summer tire.

Compact spare tire

Specifications

  1. "TEMPORARY USE ONLY"
    A compact spare tire is identified by the phrase "TEMPORARY USE ONLY" molded on its sidewall. This tire is designed for temporary emergency use only.
  2. Tire size
  3. DOT and Tire Identification Number (TIN)
  4. Load limit at maximum cold tire inflation pressure
  5. Location of treadwear indicators
  6. Maximum cold tire inflation pressure
    This means the pressure to which a tire may be inflated.
  7. Tire ply composition and materials
    Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies in a tire.
  8. TUBELESS or TUBE TYPEV A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a tube inside the tire and the tube maintains the air pressure.
  9. Radial tires or bias-ply tires
    A radial tire has "RADIAL" on the sidewall. A tire not marked "RADIAL" is a bias-ply tire.
