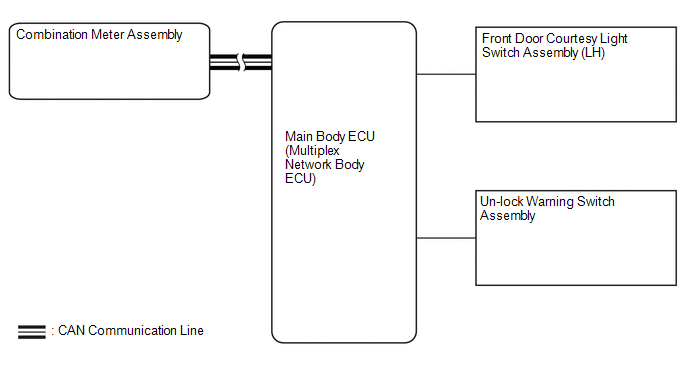

SYSTEM DIAGRAM
READ NEXT:
System Description
SYSTEM DESCRIPTION KEY REMINDER WARNING SYSTEM DESCRIPTION
(a) When the driver door is opened with the ignition switch off or ACC, this system causes a buzzer to sound in order to warn the driver th
How To Proceed With Troubleshooting
CAUTION / NOTICE / HINT
HINT:
Use the following procedure to troubleshoot the key reminder warning system.
*: Use the GTS.
PROCEDURE
1. VEHICLE BROUGHT TO WORKSHOP
Operation Check
OPERATION CHECK CHECK FUNCTION (a) Check that the key reminder warning buzzer sounds.
(1) With the driver door closed, insert the key into the ignition key cylinder and then make sure that the ignit
