REMOVAL

CAUTION / NOTICE / HINT

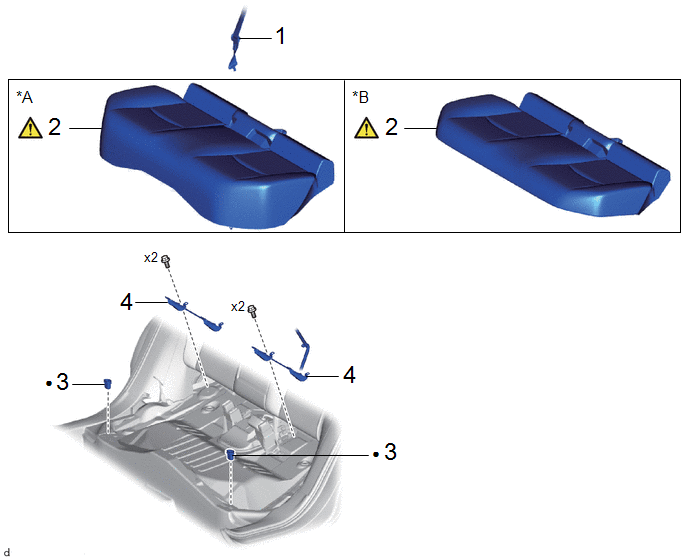

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR CENTER SEAT OUTER BELT ASSEMBLY

73350C

-

-

-

2

BENCH TYPE REAR SEAT CUSHION ASSEMBLY

-

-

-

3

REAR SEAT CUSHION LOCK HOOK

72693

-

-

-

4

CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

73705C

-

-

-

*A

for Gasoline Model

*B

for HEV Model

●

Non-reusable part

-

-

PROCEDURE

1. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

Click here

2. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

  • for Gasoline Model:

    Click here

  • for HEV Model:

    Click here

3. REMOVE REAR SEAT CUSHION LOCK HOOK

Click here

4. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

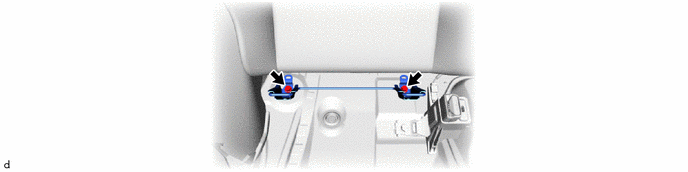

(a) for RH Side:

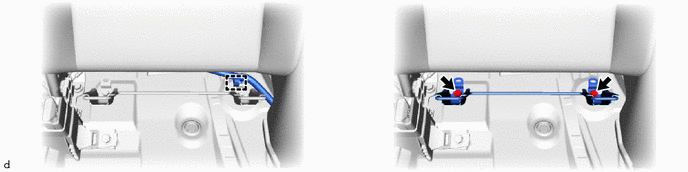

(b) for LH Side:
