Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Door Lock / Door Control Transmitter (w/ Smart Key System) / Removal

REMOVAL

CAUTION / NOTICE / HINT

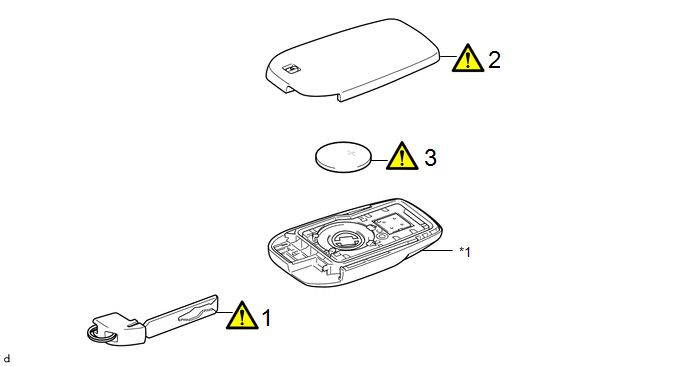

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

CUT KEY

69503B

-

-

2

TRANSMITTER HOUSING COVER

-

-

-

3

TRANSMITTER BATTERY

89745C

-

-

*1

TRANSMITTER HOUSING CASE

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during electrical key transmitter sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Electrical key transmitter sub-assembly

Code registration
  • Wireless door lock control system (w/ Smart Key System)
  • Smart key system (for Entry function)
  • Smart key system (for Start function)
  • Engine start function

for HEV Model:

for Gasoline Model:

PROCEDURE

1. REMOVE CUT KEY

*a

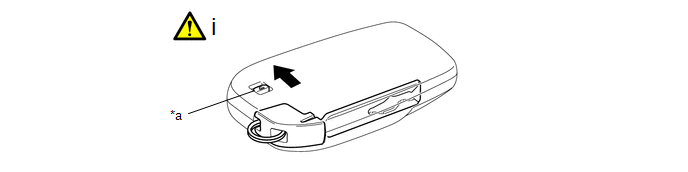

Release Hook Knob

-

-

(1) Slide the release hook knob to remove the cut key.

2. REMOVE TRANSMITTER HOUSING COVER

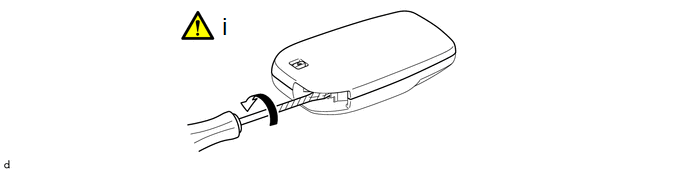

(1) Using a screwdriver with its tip wrapped in protective tape, pry apart the transmitter housing cover.

3. REMOVE TRANSMITTER BATTERY

Click here
