Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Lighting (ext) / Side Turn Signal Light Assembly / Removal

REMOVAL

CAUTION / NOTICE / HINT

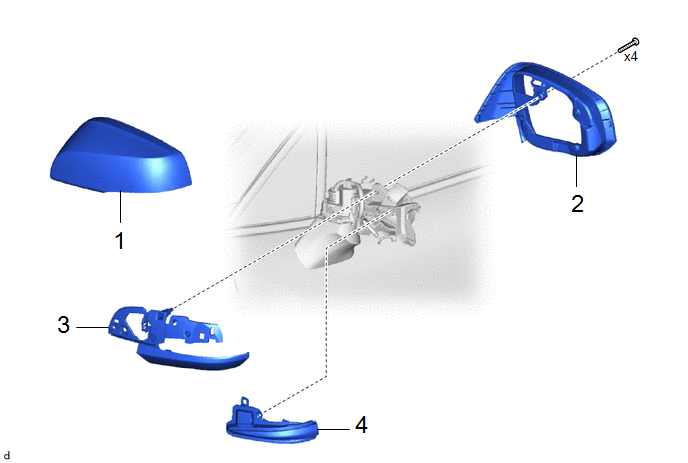

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

OUTER MIRROR COVER

87945

-

-

-

2

OUTER MIRROR BEZEL

-

-

-

-

3

OUTER MIRROR LOWER COVER

-

-

-

-

4

SIDE TURN SIGNAL LIGHT ASSEMBLY

81740

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE OUTER MIRROR COVER

Click here

2. REMOVE OUTER MIRROR BEZEL

Click here

3. REMOVE OUTER MIRROR LOWER COVER

Click here

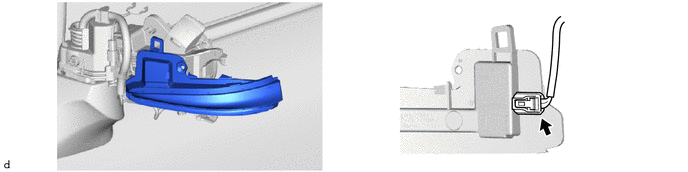

4. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY
