Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Lighting (ext) / License Plate Light Assembly / Removal

REMOVAL

CAUTION / NOTICE / HINT

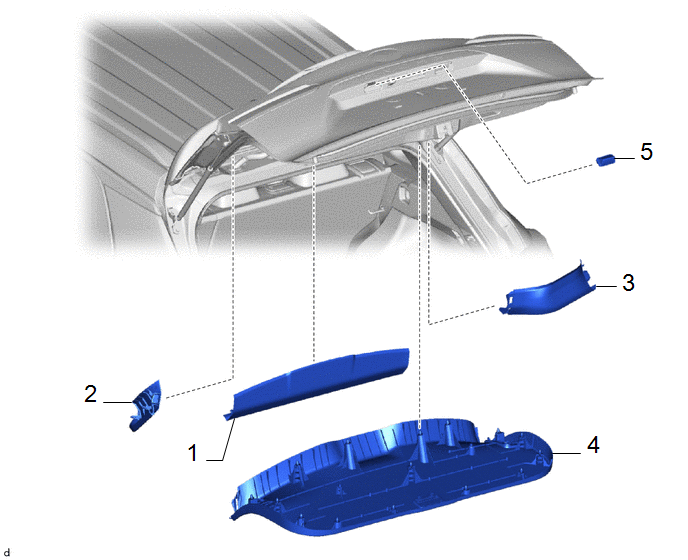

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

BACK DOOR TRIM UPPER PANEL ASSEMBLY

64790B

-

-

-

2

BACK DOOR SIDE GARNISH LH

67938A

-

-

-

3

BACK DOOR SIDE GARNISH RH

67937B

-

-

-

4

BACK DOOR TRIM PANEL ASSEMBLY

64780A

-

-

-

5

LICENSE PLATE LIGHT ASSEMBLY

81270

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY

Click here

2. REMOVE BACK DOOR SIDE GARNISH LH

Click here

3. REMOVE BACK DOOR SIDE GARNISH RH

(a) Use the same procedure as for the LH side.

4. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

Click here

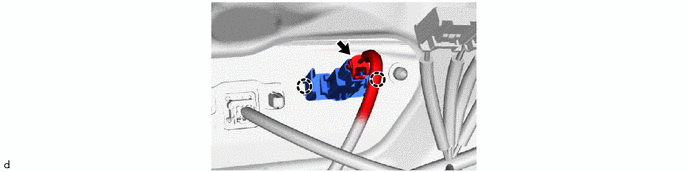

5. REMOVE LICENSE PLATE LIGHT ASSEMBLY

    READ NEXT:

     Disassembly

    DISASSEMBLY CAUTION / NOTICE / HINT COMPONENTS (DISASSEMBLY) Procedure Part Name Code 1 LICENSE PLATE LIGHT PACKING 81274B - - - 2 LICENSE PLATE

     Reassembly

    REASSEMBLY CAUTION / NOTICE / HINT COMPONENTS (REASSEMBLY) Procedure Part Name Code 1 LICENSE PLATE LIGHT BULB 81270B - - - 2 LICENSE PLATE LIGH

     Installation

    INSTALLATION CAUTION / NOTICE / HINT COMPONENTS (INSTALLATION) Procedure Part Name Code 1 LICENSE PLATE LIGHT ASSEMBLY 81270 - - - 2 BACK DOOR T
