Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

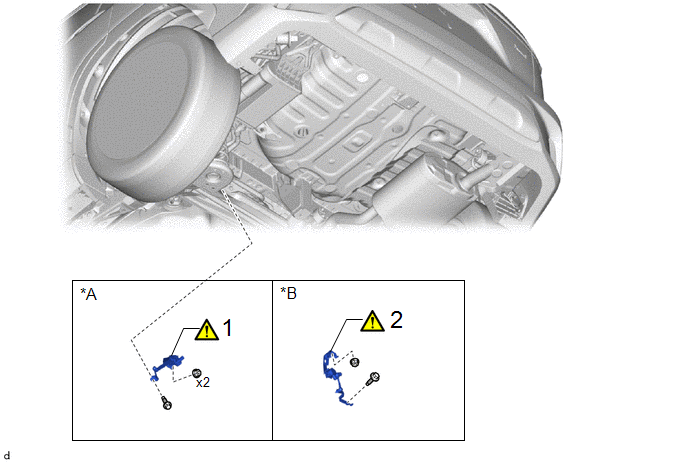

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH |
89408C |
|
- | - |
|
2 | REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH |
89408C |
|
- | - |
.gif)
|
*A | for 2WD |
*B | for AWD |
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during the height control sensor sub-assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
| Rear height control sensor sub-assembly LH |
Initialize headlight ECU sub-assembly LH |
Automatic headlight beam level control system |
|
PROCEDURE

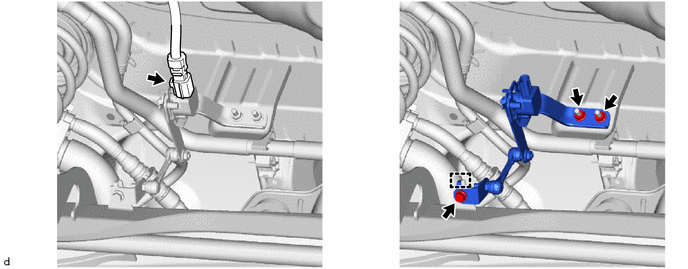

1. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for 2WD)
|
|
NOTICE: If the rear height control sensor sub-assembly LH has been struck or dropped, replace it with a new one. |

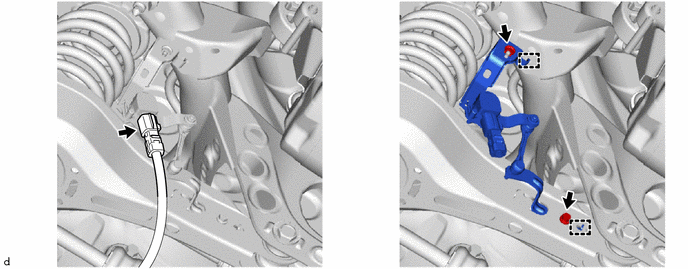

2. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for AWD)
|
|
NOTICE: If the rear height control sensor sub-assembly LH has been struck or dropped, replace it with a new one. |
