Toyota Corolla Cross: Removal

Toyota Corolla Cross (2022-2024) Service Manual / Drivetrain / Drive Shaft / Propeller Shaft / Front Drive Shaft Assembly (for M20a-fxs) / Removal

REMOVAL

CAUTION / NOTICE / HINT

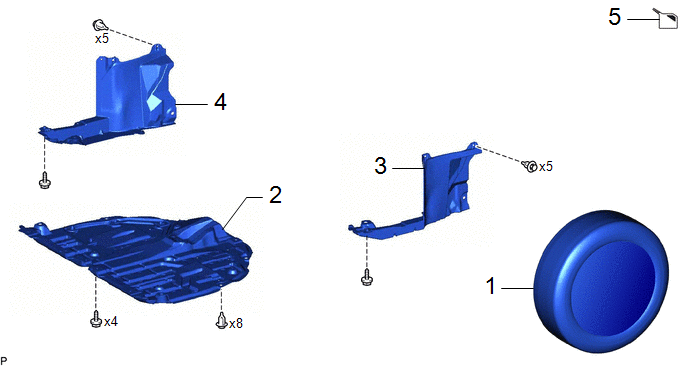

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FRONT WHEELS

-

-

-

-

2

NO. 1 ENGINE UNDER COVER ASSEMBLY

51410

-

-

-

3

REAR ENGINE UNDER COVER LH

51444A

-

-

-

4

REAR ENGINE UNDER COVER RH

51443C

-

-

-

5

DRAIN HYBRID TRANSAXLE FLUID

-

-

-

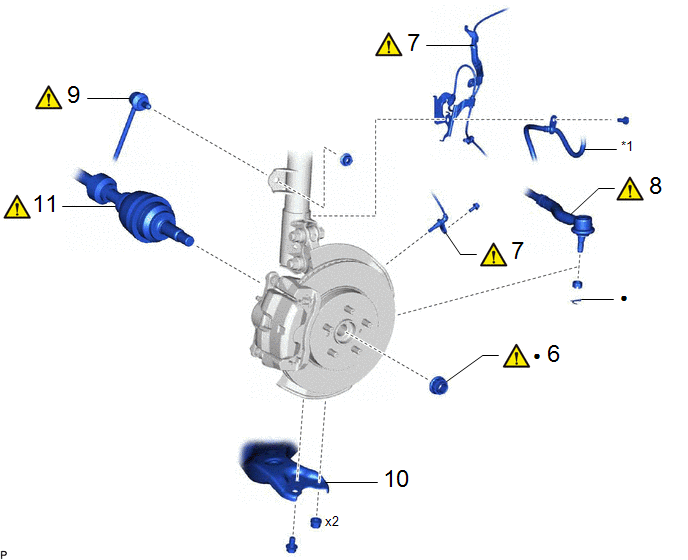

Procedure

Part Name Code

6

FRONT AXLE SHAFT NUT

43502H

-

-

7

FRONT SPEED SENSOR

89543

-

-

8

TIE ROD END SUB-ASSEMBLY

45047

-

-

9

FRONT STABILIZER LINK ASSEMBLY

48810

-

-

10

FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

48069

-

-

-

11

SEPARATE FRONT DRIVE SHAFT ASSEMBLY

43420

-

-

*1

FRONT FLEXIBLE HOSE

-

-

●

Non-reusable part

-

-

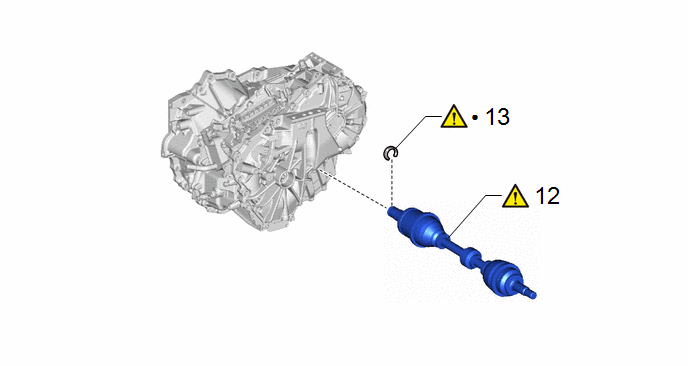

Procedure

Part Name Code

12

REMOVE FRONT DRIVE SHAFT ASSEMBLY

43420

-

-

13

FRONT DRIVE SHAFT HOLE SNAP RING

43420G

-

-

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the front drive shaft assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replacement Part or Procedure

Necessary Procedures

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

Front wheel alignment adjustment
  1. Perform "Reset Memory"
  2. Perform "Calibration"
  • DTCs are stored
  • ABS warning light illuminates
  • Brake system warning light (yellow indicator) illuminates
  • Slip indicator light illuminates
  • Electronically controlled brake system does not operate correctly

Suspension, tires, etc.

Rear television camera assembly optical axis (Back camera position setting)

Parking assist monitor system

Initialize headlight ECU sub-assembly LH

Automatic headlight beam level control system

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT WHEELS

Click here

2. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here

3. REMOVE REAR ENGINE UNDER COVER LH

Click here

4. REMOVE REAR ENGINE UNDER COVER RH

Click here

5. DRAIN HYBRID TRANSAXLE FLUID

Click here

6. REMOVE FRONT AXLE SHAFT NUT

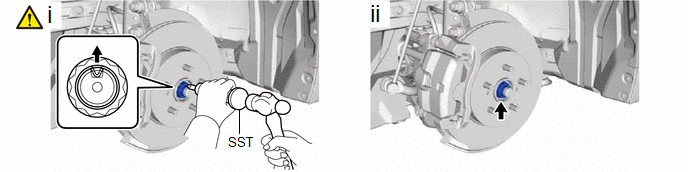

(1) Using SST and a hammer, release the staked part of the front axle shaft nut.

SST: 09930-00010

NOTICE:

Loosen the staked part of the front axle shaft nut completely, otherwise the threads of the drive shaft may be damaged.

(2) While applying the brakes, using a 30 mm deep socket wrench, remove the front axle shaft nut.

7. SEPARATE FRONT SPEED SENSOR

Click here

8. SEPARATE TIE ROD END SUB-ASSEMBLY

Click here

9. SEPARATE FRONT STABILIZER LINK ASSEMBLY

Click here

10. SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

Click here

11. SEPARATE FRONT DRIVE SHAFT ASSEMBLY

Click here

12. REMOVE FRONT DRIVE SHAFT ASSEMBLY

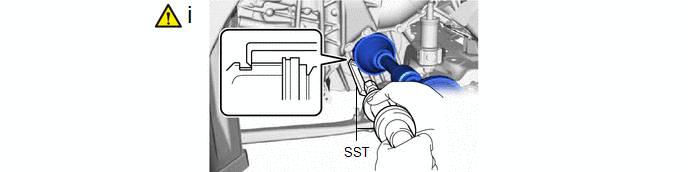

(1) Using SST, remove the front drive shaft assembly.

SST: 09520-01011

SST: 09520-20010

09521-02010

09521-02040

09521-02060

NOTICE:

  • Do not damage the front drive shaft oil seal.
  • Do not damage the front axle inboard joint boot.
  • Do not drop the front drive shaft assembly.

13. REMOVE FRONT DRIVE SHAFT HOLE SNAP RING

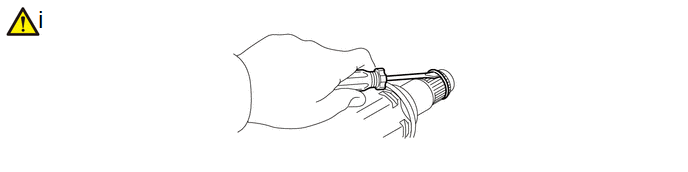

(1) Using a screwdriver, remove the front drive shaft hole snap ring.
