Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

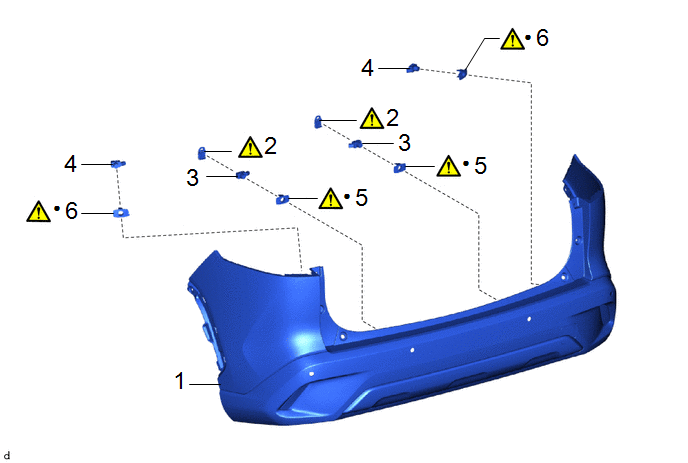

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR BUMPER ASSEMBLY

-

-

-

-

2

ULTRASONIC SENSOR CLIP

89348D

-

-

3

REAR CENTER ULTRASONIC SENSOR

89342A

-

-

-

4

REAR CORNER ULTRASONIC SENSOR

89342

-

-

-

5

REAR CENTER ULTRASONIC SENSOR RETAINER

89C48B

-

-

6

REAR CORNER ULTRASONIC SENSOR RETAINER

89C48A

-

-

Non-reusable part

-

-

Procedure

Part Name Code

7

ULTRASONIC SENSOR CUSHION SET

89305

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ultrasonic sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Ultrasonic sensor

  • Ultrasonic sensor detection angle
  • Ultrasonic sensor detection angle registration
  • Intuitive parking assist system
  • Parking support brake system

PROCEDURE

1. REMOVE REAR BUMPER ASSEMBLY

  • except Sport Package:

    Click here

  • for Sport Package:

    Click here

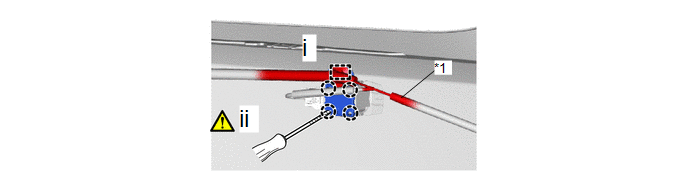

2. REMOVE ULTRASONIC SENSOR CLIP

*1

No. 6 Floor Wire

-

-

(1) Disengage the clamp to separate the No. 6 floor wire.

(2) Using a screwdriver with its tip wrapped with protective tape, disengage the claws to remove the ultrasonic sensor clip.

(b) The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

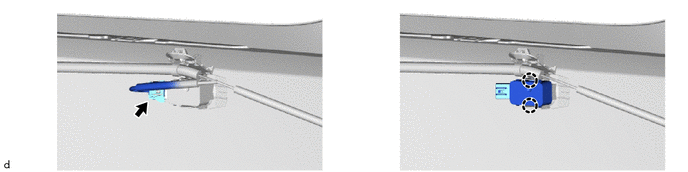

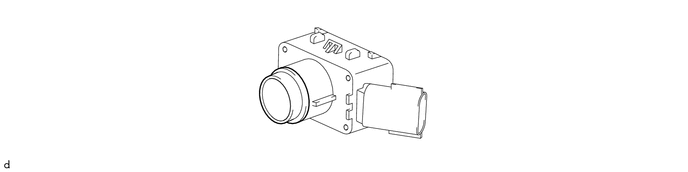

3. REMOVE REAR CENTER ULTRASONIC SENSOR

(b) The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

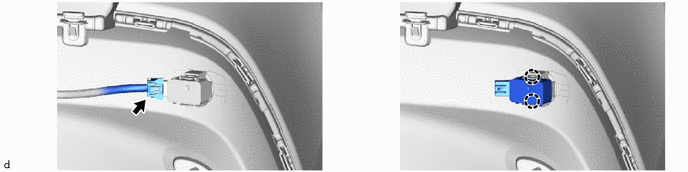

4. REMOVE REAR CORNER ULTRASONIC SENSOR

(b) The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

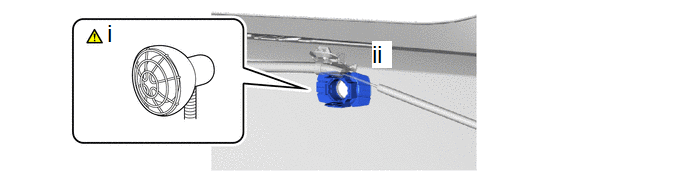

5. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER

NOTICE:

  • Perform this procedure only when replacement of the rear center ultrasonic sensor retainer is necessary.
  • When removing the rear center ultrasonic sensor retainer, if the double-sided tape is difficult to remove, heat the rear bumper assembly and rear center ultrasonic sensor retainer using a heat light.

(1) Heat the adhesive of the rear bumper assembly and rear center ultrasonic sensor retainer using a heat light.

Standard:

Item

Temperature

Item

Temperature

Rear Bumper Assembly

40 to 50 °C (104 to 122 °F)

Rear Center Ultrasonic Sensor Retainer

40 to 50 °C (104 to 122 °F)

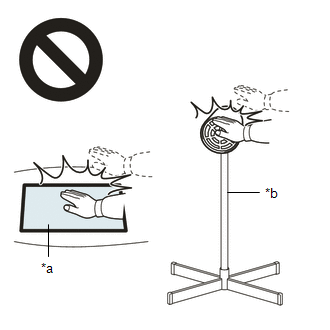

CAUTION:

  • Do not touch the heat light and heated parts.
  • Touching the heat light may result in burns.
  • Touching heated parts for a long time may result in burns.

*a

Heated Part

*b

Heat Light

NOTICE:

Do not heat the rear bumper assembly and rear center ultrasonic sensor retainer excessively.

HINT:

Heat the rear bumper assembly and rear center ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

(2) Remove the rear center ultrasonic sensor retainer.

(b) The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

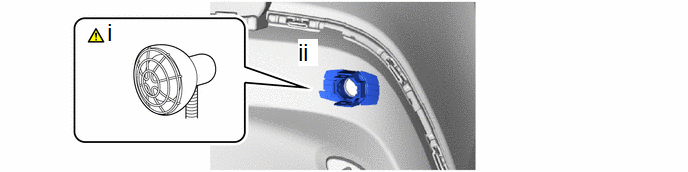

6. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER

NOTICE:

  • Perform this procedure only when replacement of the rear corner ultrasonic sensor retainer is necessary.
  • When removing the rear corner ultrasonic sensor retainer, if the double-sided tape is difficult to remove, heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light.

(1) Heat the adhesive of the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light.

Standard:

Item

Temperature

Item

Temperature

Rear Bumper Assembly

40 to 50 °C (104 to 122 °F)

Rear Corner Ultrasonic Sensor Retainer

40 to 50 °C (104 to 122 °F)

CAUTION:

  • Do not touch the heat light and heated parts.
  • Touching the heat light may result in burns.
  • Touching heated parts for a long time may result in burns.

*a

Heated Part

*b

Heat Light

NOTICE:

Do not heat the rear bumper assembly and rear corner ultrasonic sensor retainer excessively.

HINT:

Heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

(2) Remove the rear corner ultrasonic sensor retainer.

(b) The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

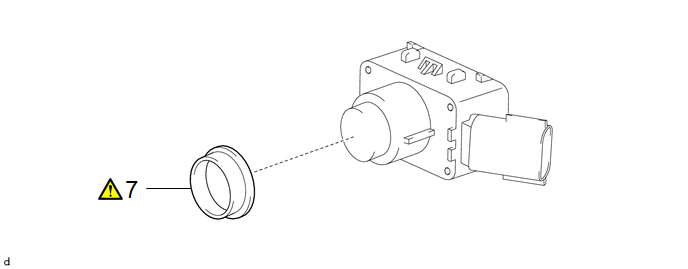

7. REMOVE ULTRASONIC SENSOR CUSHION SET

NOTICE:

Perform this procedure only when replacement of the ultrasonic sensor cushion set is necessary.
