Toyota Corolla Cross: Passenger Seat Belt Sensor Circuit Undetermined Failure (B005200)

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Supplemental Restraint Systems / Airbag System / Passenger Seat Belt Sensor Circuit Undetermined Failure (B005200)

DESCRIPTION

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Warning Indicate

Test Mode / Check Mode

B005200

Passenger Seat Belt Sensor Circuit Undetermined Failure

When it is determined that the specified number of times or more is not achieved after the ignition switch is turned to ON.

  • Harness or connector
  • Passenger seat buckle switch (front seat inner belt assembly RH)
  • Airbag ECU assembly

Comes on

Does not apply to test/check mode

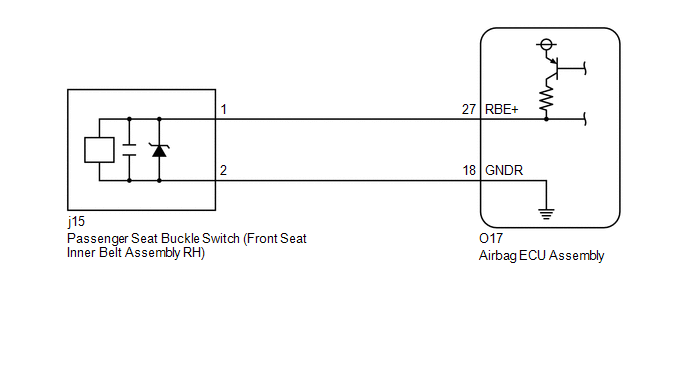

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click here

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click here

PROCEDURE

1.

CHECK CONNECTION OF CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Check that the connectors are properly connected to the airbag ECU assembly and passenger seat buckle switch (front seat inner belt assembly RH).

OK:

The connectors are properly connected.

NG

CONNECT CONNECTORS PROPERLY

OK

2.

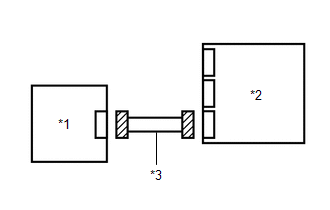

CHECK CONNECTORS

(a) Disconnect the connectors from the airbag ECU assembly and passenger seat buckle switch (front seat inner belt assembly RH).

(b) Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.

*1

Passenger Seat Buckle Switch (Front Seat Inner Belt Assembly RH)

*2

Airbag ECU Assembly

*3

Wire Harness

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3.

INSPECT PASSENGER SEAT BUCKLE SWITCH (FRONT SEAT INNER BELT ASSEMBLY RH)

(a) Remove the passenger seat buckle switch (front seat inner belt assembly RH).

Click here

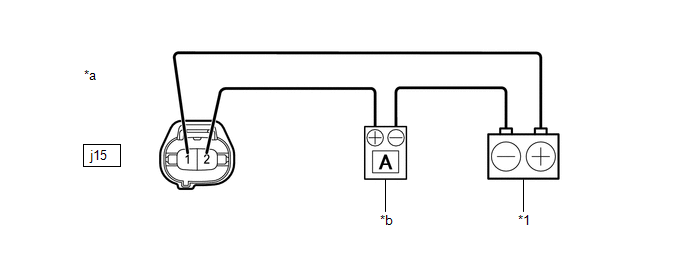

(b) Connect the battery and a tester to the passenger seat buckle switch (front seat inner belt assembly RH) as shown in the illustration.

(c) Measure the current according to the value(s) in the table below.

*1

Battery

-

-

*a

Component without harness connected

(Passenger Seat Buckle Switch (Front Seat Inner Belt Assembly RH))

*b

Tester

Standard Current:

Tester Connection

Condition

Specified Condition

Tester positive (+) - j15-2

Tester negative (-) - Battery negative (-)

Seat belt fastened

12.0 to 18.0 mA

Tester positive (+) - j15-2

Tester negative (-) - Battery negative (-)

Seat belt not fastened

4.0 to 7.0 mA

NG

REPLACE PASSENGER SEAT BUCKLE SWITCH (FRONT SEAT INNER BELT ASSEMBLY RH)

OK

4.

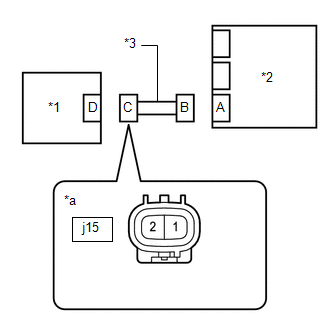

CHECK HARNESS AND CONNECTOR (SHORT TO GROUND)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

j15-1 - Body ground

Always

1 MΩ or higher

j15-2 - Body ground

Always

1 MΩ or higher

*1

Passenger Seat Buckle Switch (Front Seat Inner Belt Assembly RH)

*2

Airbag ECU Assembly

*3

Wire Harness

*a

Front view of wire harness connector

(to Passenger Seat Buckle Switch (Front Seat Inner Belt Assembly RH))

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

5.

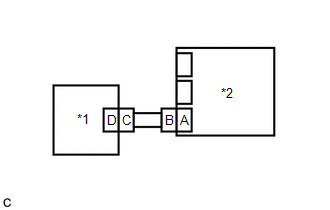

CHECK HARNESS AND CONNECTOR (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

j15-1 - Body ground

Ignition switch ON

Below 1 V

j15-2 - Body ground

Ignition switch ON

Below 1 V

Result:

Proceed to

OK

NG

*1

Passenger Seat Buckle Switch (Front Seat Inner Belt Assembly RH)

*2

Airbag ECU Assembly

*3

Wire Harness

*a

Front view of wire harness connector

(to Passenger Seat Buckle Switch (Front Seat Inner Belt Assembly RH))

(d) Turn the ignition switch off.

(e) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

6.

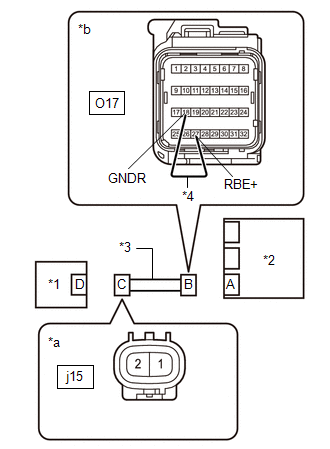

CHECK HARNESS AND CONNECTOR (OPEN)

(a) Using a service wire, connect terminals 27 (RBE+) and 18 (GNDR) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

j15-1 - j15-2

Always

Below 1 Ω

Result:

Proceed to

OK

NG

*1

Passenger Seat Buckle Switch (Front Seat Inner Belt Assembly RH)

*2

Airbag ECU Assembly

*3

Wire Harness

*4

Service Wire

*a

Front view of wire harness connector

(to Passenger Seat Buckle Switch (Front Seat Inner Belt Assembly RH))

*b

Front view of wire harness connector

(to Airbag ECU Assembly)

(c) Disconnect the service wire from connector B.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

7.

CLEAR DTC

(a) Connect the connectors to the airbag ECU assembly and passenger seat buckle switch (front seat inner belt assembly RH).

*1

Passenger Seat Buckle Switch (Front Seat Inner Belt Assembly RH)

*2

Airbag ECU Assembly

(b) Connect the cable to the negative (-) battery terminal.

(c) Turn the ignition switch to ON, and wait for at least 60 seconds.

(d) Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs

(e) Turn the ignition switch off.

NEXT

8.

CHECK DTC

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

Result

Proceed to

B005200 is output

A

B005200 is not output

B

HINT:

Codes other than DTC B005200 may be output at this time, but they are not related to this check.

A

REPLACE AIRBAG ECU ASSEMBLY

B

USE SIMULATION METHOD TO CHECK
