PARTS LOCATION

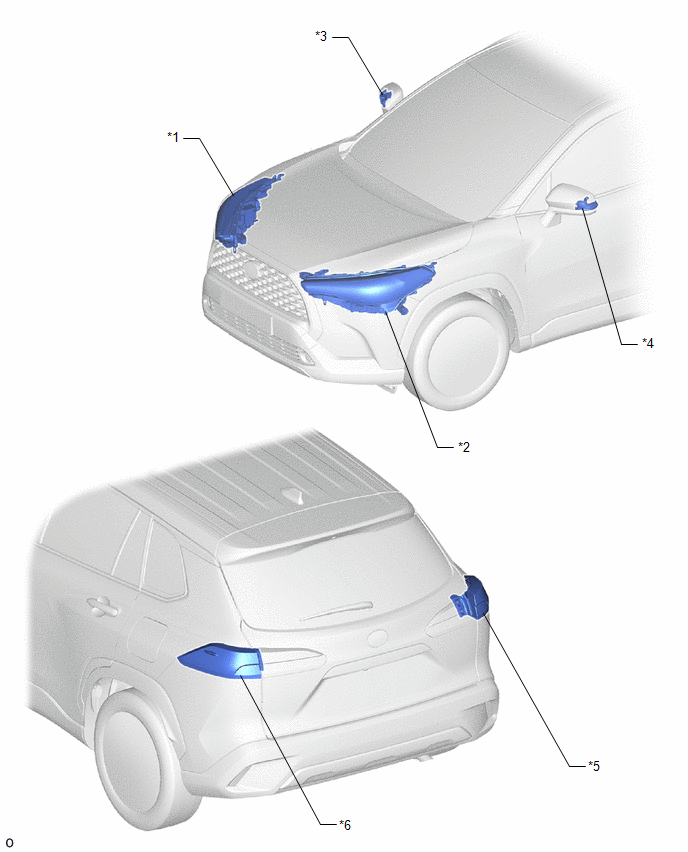

ILLUSTRATION
|
*1 | HEADLIGHT ASSEMBLY RH |
*2 | HEADLIGHT ASSEMBLY LH |
|
*3 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
*4 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
|
*5 | REAR COMBINATION LIGHT ASSEMBLY RH - TURN SIGNAL LIGHT | *6 |
REAR COMBINATION LIGHT ASSEMBLY LH - TURN SIGNAL LIGHT |

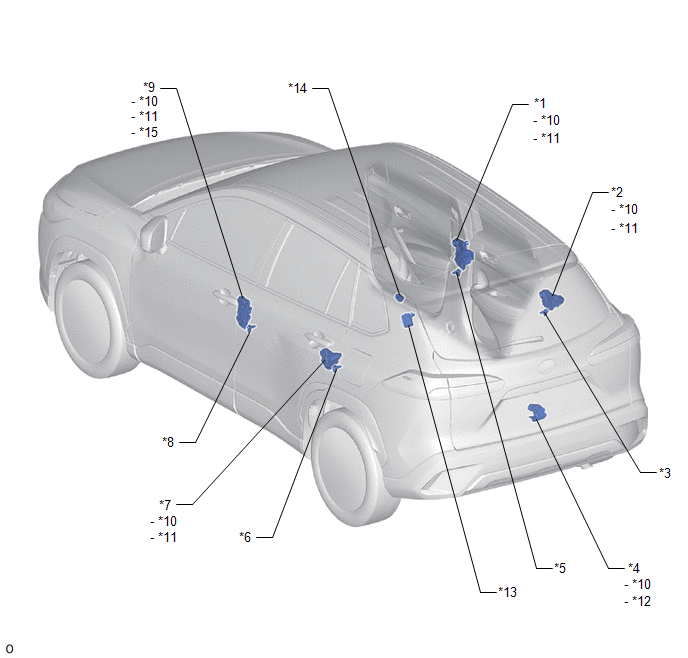

ILLUSTRATION
|
*1 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
*2 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
|
*3 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
*4 | BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY |
|
*5 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
*6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
|
*7 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH |
*8 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
|
*9 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
*10 | DOOR LOCK MOTOR |
|
*11 | DOOR UNLOCK DETECTION SWITCH |
*12 | BACK DOOR COURTESY SWITCH |
|
*13 | DOOR CONTROL RECEIVER |
*14 | WIRELESS DOOR LOCK BUZZER |
|
*15 | DOOR KEY LOCK AND UNLOCK SWITCH |
- | - |

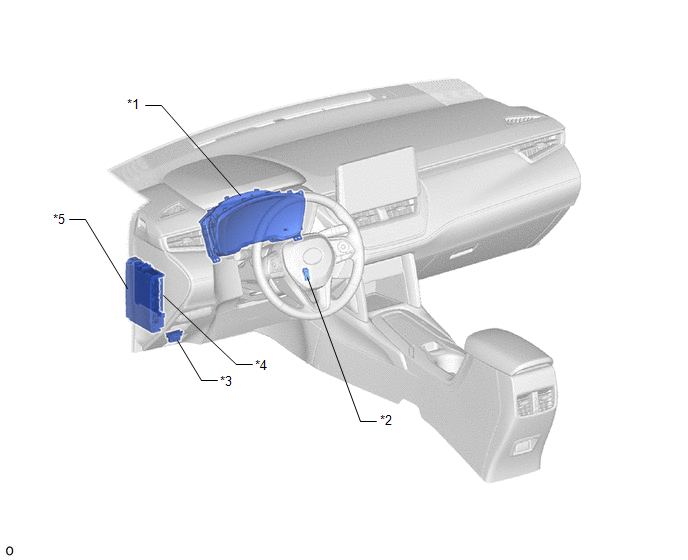

ILLUSTRATION
|
*1 | COMBINATION METER ASSEMBLY |
*2 | UN-LOCK WARNING SWITCH ASSEMBLY |
|
*3 | DLC3 |
*4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
|
*5 | POWER DISTRIBUTION BOX ASSEMBLY |
- | - |
