Toyota Corolla Cross: Parts Location

Toyota Corolla Cross (2022-2025) Service Manual / Audio & Visual & Telematics / Park Assist / Monitoring / Parking Assist Monitor System / Parts Location

PARTS LOCATION

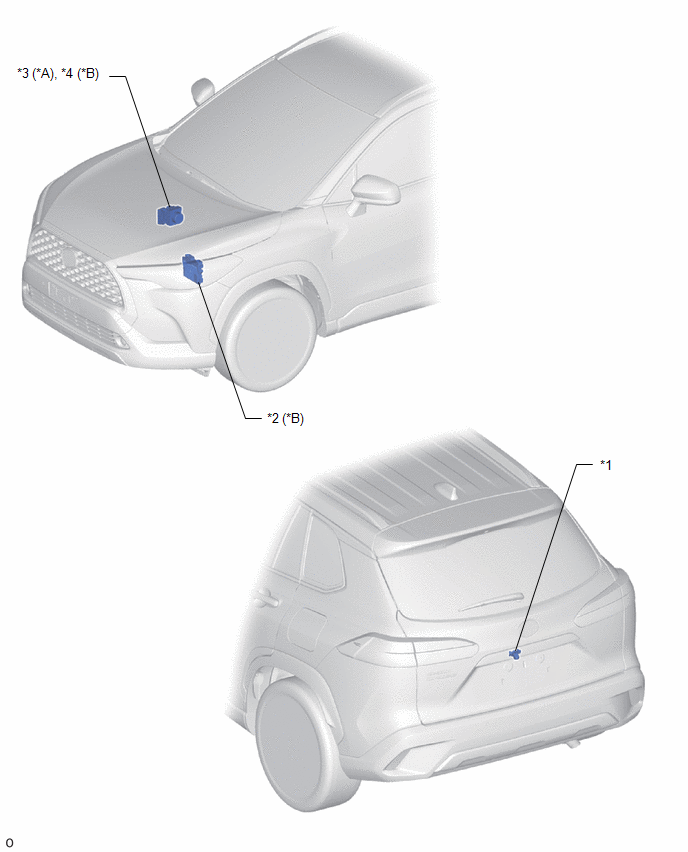

ILLUSTRATION

*A

for HEV Model

*B

for Gasoline Model

*1

REAR TELEVISION CAMERA ASSEMBLY

*2

ECM

*3

BRAKE ACTUATOR ASSEMBLY

- NO. 2 SKID CONTROL ECU

*4

BRAKE ACTUATOR ASSEMBLY

- SKID CONTROL ECU

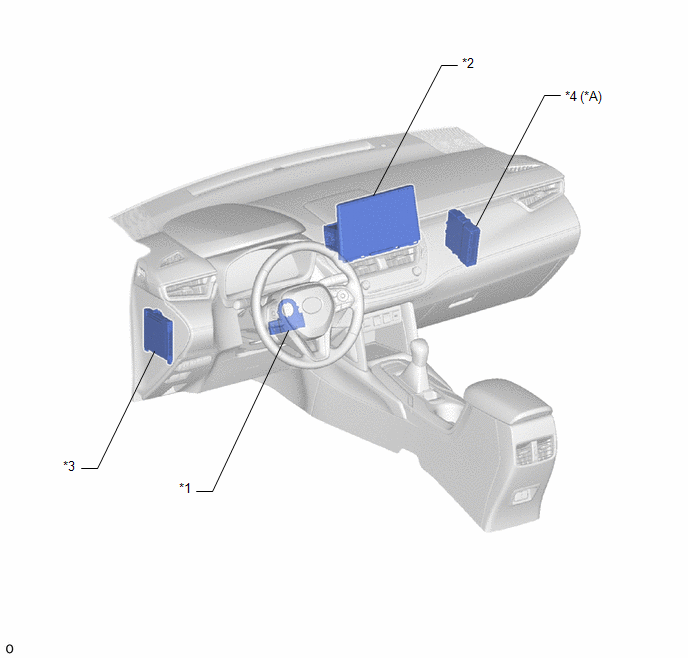

ILLUSTRATION

*A

for HEV Model

-

-

*1

STEERING SENSOR

*2

RADIO AND DISPLAY RECEIVER ASSEMBLY

*3

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*4

HYBRID VEHICLE CONTROL ECU
