ON-VEHICLE INSPECTION
PROCEDURE
1. INSPECT HOOD SUB-ASSEMBLY

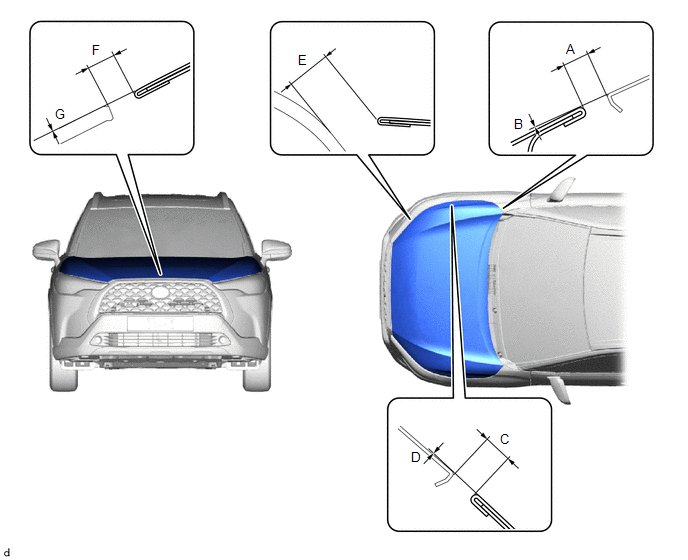

(a) Check that the clearance measurements of areas A through G are within each standard range.
Standard Clearance |
Area | Measurement |
Area | Measurement |
|---|---|---|---|
|
A | 3.0 to 6.0 mm (0.1181 to 0.2362 in.) |
B | -1.5 to 1.5 mm (-0.0591 to 0.0591 in.) |
|
C | 3.5 to 6.5 mm (0.1378 to 0.2559 in.) |
D | -1.5 to 1.5 mm (-0.0591 to 0.0591 in.) |
|
E | 8.3 mm (0.3268 in.) |
F | 5.0 mm (0.1969 in.) |
|
G | 0.0 mm (0 in.) |
- | - |
