Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Id Code Box / Installation

INSTALLATION

CAUTION / NOTICE / HINT

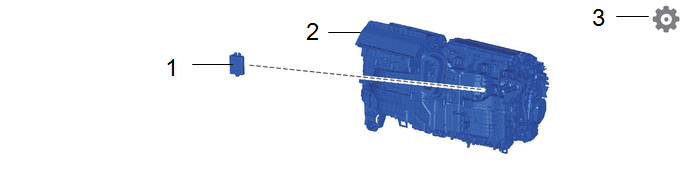

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

IMMOBILIZER CODE ECU (ID CODE BOX)

89784

-

-

-

2

AIR CONDITIONER UNIT ASSEMBLY

-

-

-

-

3

PERFORM CODE REGISTRATION

-

-

-

PROCEDURE

1. INSTALL IMMOBILIZER CODE ECU (ID CODE BOX)

2. INSTALL AIR CONDITIONER UNIT ASSEMBLY

Click here

3. PERFORM CODE REGISTRATION

  • for HEV Model:

    Click here

  • for Gasoline Model:

    Click here
