Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Certification Ecu / Installation

INSTALLATION

CAUTION / NOTICE / HINT

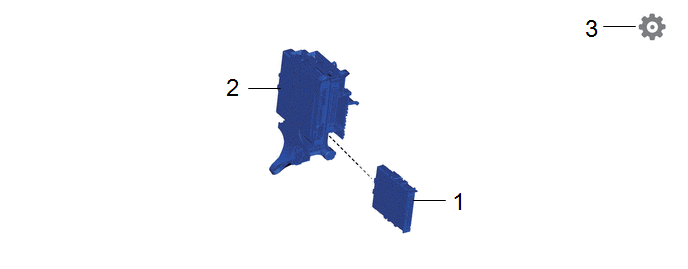

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

SMART KEY ECU ASSEMBLY (CERTIFICATION ECU)

89990A

-

-

-

2

CONNECTOR HOLDER

82666

-

-

-

3

PERFORM CODE REGISTRATION

-

-

-

PROCEDURE

1. INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

2. INSTALL CONNECTOR HOLDER

Click here

3. PERFORM CODE REGISTRATION

  • for HEV Model:

    Click here

  • for Gasoline Model:

    Click here
