Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

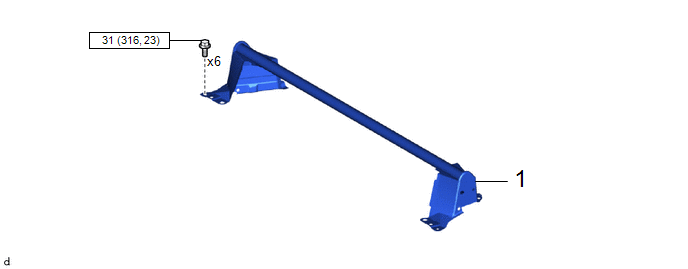

Procedure

Part Name Code

1

CENTER FLOOR CROSSMEMBER GUSSET SUB-ASSEMBLY

57047

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

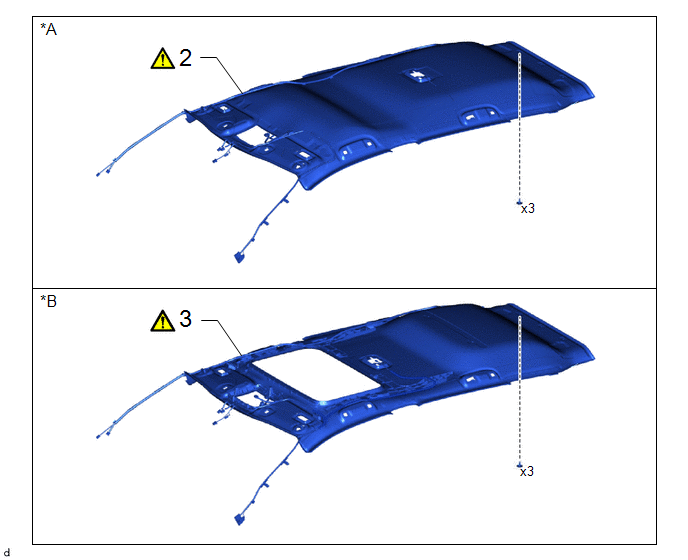

Procedure

Part Name Code

2

ROOF HEADLINING ASSEMBLY

63311C

-

-

3

ROOF HEADLINING ASSEMBLY

63311C

-

-

*A

w/o Sliding Roof

*B

w/ Sliding Roof

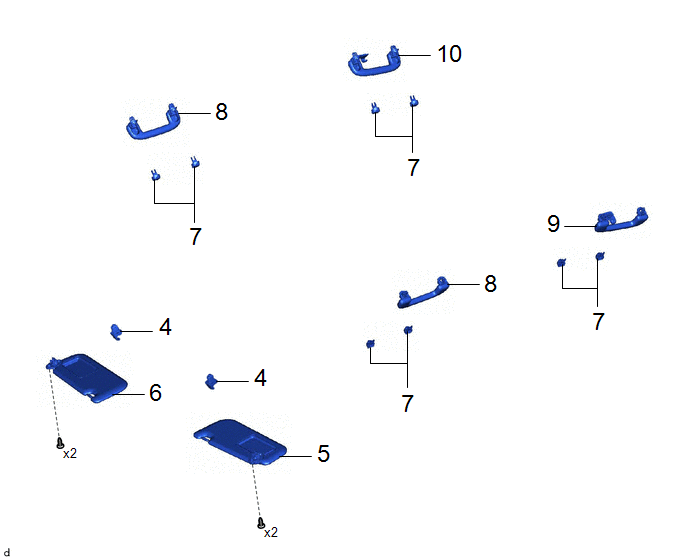

Procedure

Part Name Code

4

VISER HOLDER

74348

-

-

-

5

VISOR ASSEMBLY LH

74320

-

-

-

6

VISOR ASSEMBLY RH

74310

-

-

-

7

ASSIST GRIP COVER

74612

-

-

-

8

ASSIST GRIP SUB-ASSEMBLY

74610A

-

-

-

9

REAR ASSIST GRIP ASSEMBLY LH

74630E

-

-

-

10

REAR ASSIST GRIP ASSEMBLY RH

74620C

-

-

-

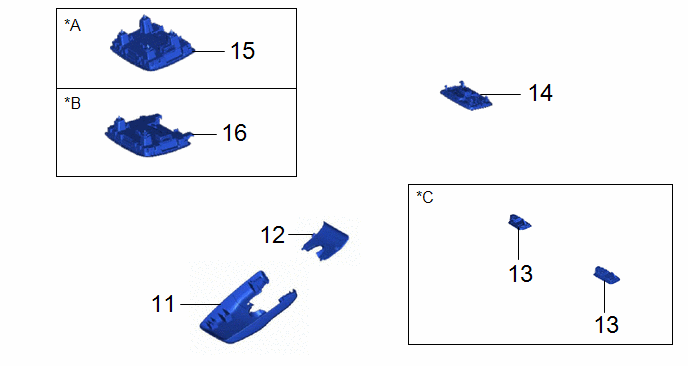

Procedure

Part Name Code

11

NO. 1 FORWARD RECOGNITION COVER

86466D

-

-

-

12

NO. 2 FORWARD RECOGNITION COVER

86466E

-

-

-

13

VANITY LIGHT ASSEMBLY

81340

-

-

-

14

NO. 1 ROOM LIGHT ASSEMBLY

81240

-

-

-

15

MAP LIGHT ASSEMBLY

81260A

-

-

-

16

MAP LIGHT ASSEMBLY

81260A

-

-

-

*A

w/o Sliding Roof

*B

w/ Sliding Roof

*C

w/ Vanity Light

-

-

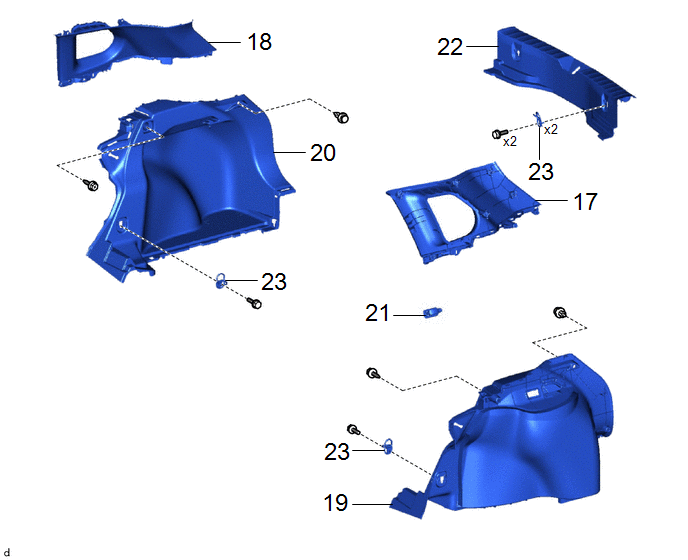

Procedure

Part Name Code

17

ROOF SIDE INNER GARNISH ASSEMBLY LH

62480A

-

-

-

18

ROOF SIDE INNER GARNISH ASSEMBLY RH

62470A

-

-

-

19

DECK TRIM SIDE PANEL ASSEMBLY LH

64740C

-

-

-

20

DECK TRIM SIDE PANEL ASSEMBLY RH

64730B

-

-

-

21

NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

81330

-

-

-

22

REAR DECK TRIM COVER

64716D

-

-

-

23

LUGGAGE HOLD BELT STRIKER ASSEMBLY

58460D

-

-

-

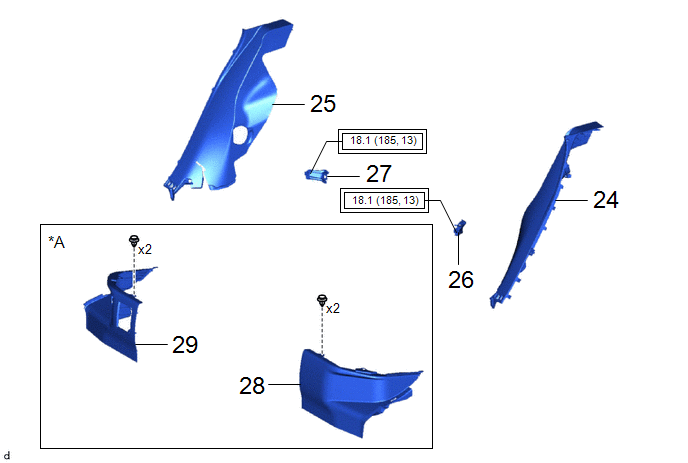

Procedure

Part Name Code

24

REAR SEAT SIDE GARNISH LH

62552F

-

-

-

25

REAR SEAT SIDE GARNISH RH

62551F

-

-

-

26

REAR SEAT BACK HINGE SUB-ASSEMBLY LH

71304C

-

-

-

27

REAR SEAT BACK HINGE SUB-ASSEMBLY RH

71303C

-

-

-

28

REAR UNDER SIDE COVER LH

76974E

-

-

-

29

REAR UNDER SIDE COVER RH

76973E

-

-

-

*A

for HEV Model

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

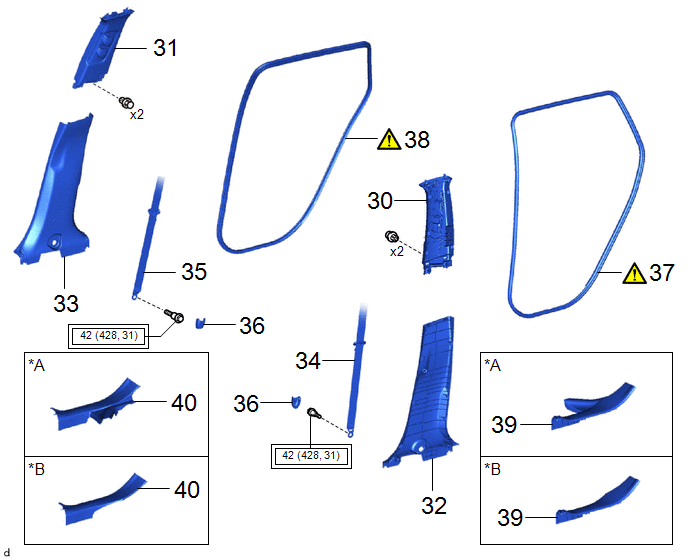

Procedure

Part Name Code

30

CENTER PILLER UPPER GARNISH LH

62420A

-

-

-

31

CENTER PILLAR UPPER GARNISH RH

62410A

-

-

-

32

CENTER PILLAR LOWER GARNISH LH

62414A

-

-

-

33

CENTER PILLAR LOWER GARNISH RH

62413A

-

-

-

34

FRONT SEAT OUTER BELT ASSEMBLY LH

73220

-

-

-

35

FRONT SEAT OUTER BELT ASSEMBLY RH

73210

-

-

-

36

LAP BELT OUTER ANCHOR COVER

73233

-

-

-

37

REAR DOOR OPENING TRIM WEATHERSTRIP LH

62332A

-

-

38

REAR DOOR OPENING TRIM WEATHERSTRIP RH

62331A

-

-

39

REAR DOOR SCUFF PLATE LH

67918A

-

-

-

40

REAR DOOR SCUFF PLATE RH

67917A

-

-

-

*A

for Gasoline Model

*B

for HEV Model

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

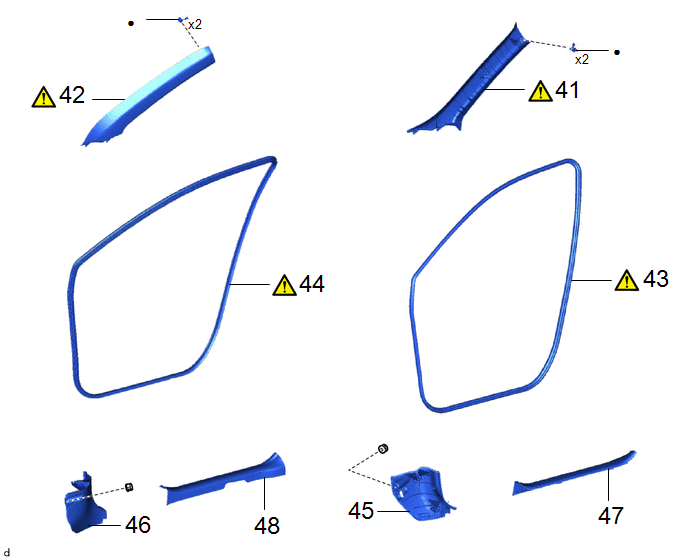

Procedure

Part Name Code

41

FRONT PILLAR GARNISH ASSEMBLY LH

62212B

-

-

42

FRONT PILLAR GARNISH ASSEMBLY RH

62211U

-

-

43

FRONT DOOR OPENING TRIM WEATHERSTRIP LH

62312B

-

-

44

FRONT DOOR OPENING TRIM WEATHERSTRIP RH

62311B

-

-

45

COWL SIDE TRIM SUB-ASSEMBLY LH

62112A

-

-

-

46

COWL SIDE TRIM SUB-ASSEMBLY RH

62111

-

-

-

47

FRONT DOOR SCUFF PLATE LH

67914B

-

-

-

48

FRONT DOOR SCUFF PLATE RH

67913

-

-

-

Non-reusable part

-

-

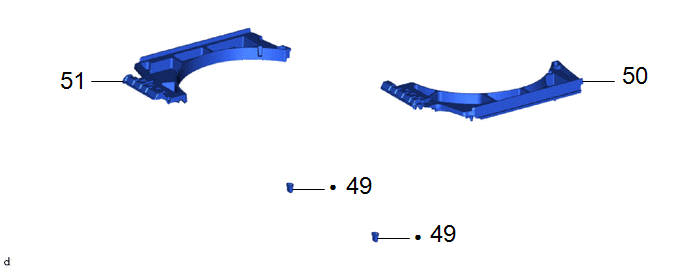

Procedure

Part Name Code

49

REAR SEAT CUSHION LOCK HOOK

72693

-

-

-

50

DECK FLOOR BOX LH

64997

-

-

-

51

DECK FLOOR BOX RH

64995

-

-

-

Non-reusable part

-

-

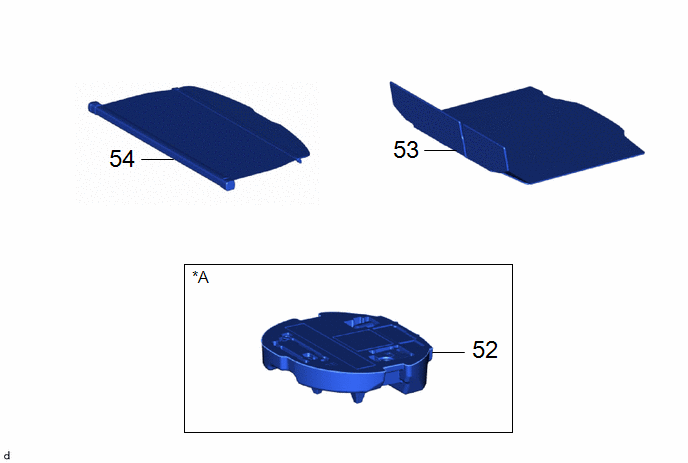

Procedure

Part Name Code

52

SPARE WHEEL CUSHION

64777J

-

-

-

53

DECK BOARD ASSEMBLY

58410B

-

-

-

54

TONNEAU COVER ASSEMBLY

64910J

-

-

-

*A

w/o Spare Tire

-

-

PROCEDURE

1. INSTALL CENTER FLOOR CROSSMEMBER GUSSET SUB-ASSEMBLY

Torque:

31 N·m {316 kgf·cm, 23 ft·lbf}

2. INSTALL ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)

HINT:

The illustrations are representative examples, and details may differ.

Install in this Direction

-

-

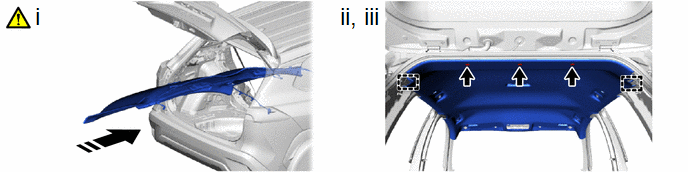

(1) Put the roof headlining assembly back into the vehicle through the back door as shown in the illustration.

NOTICE:

Do not damage the roof headlining assembly or vehicle interior.

(2) Engage the guides to install the roof headlining assembly.

(3) Install the 3 clips.

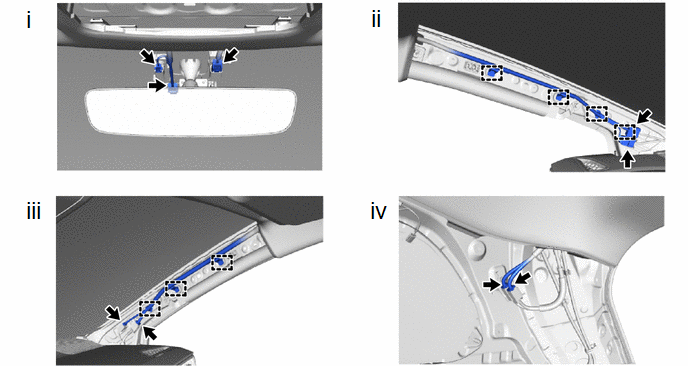

(1) for Windshield Glass Side:

1. Connect each connector.

(2) for Front Pillar LH Side:

1. Remove the protective cover.

2. Connect the 2 connectors.

3. Engage the clamps.

4. Install the protective cover.

(3) for Front Pillar RH Side:

1. Remove the protective cover.

2. Connect the 2 connectors.

3. Engage the clamps.

4. Install the protective cover.

(4) for Rear Pillar RH Side:

1. Connect the 2 connectors.

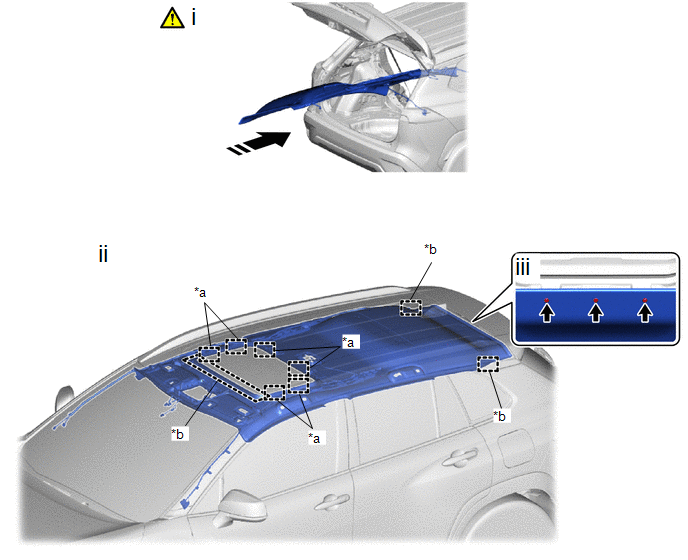

3. INSTALL ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)

HINT:

The illustrations are representative examples, and details may differ.

*a

Fastener

*b

Guide

Install in this Direction

-

-

(1) Put the roof headlining assembly back into the vehicle through the back door as shown in the illustration.

NOTICE:

Do not damage the roof headlining assembly or vehicle interior.

(2) Engage the fasteners and guides to install the roof headlining assembly.

(3) Install the 3 clips.

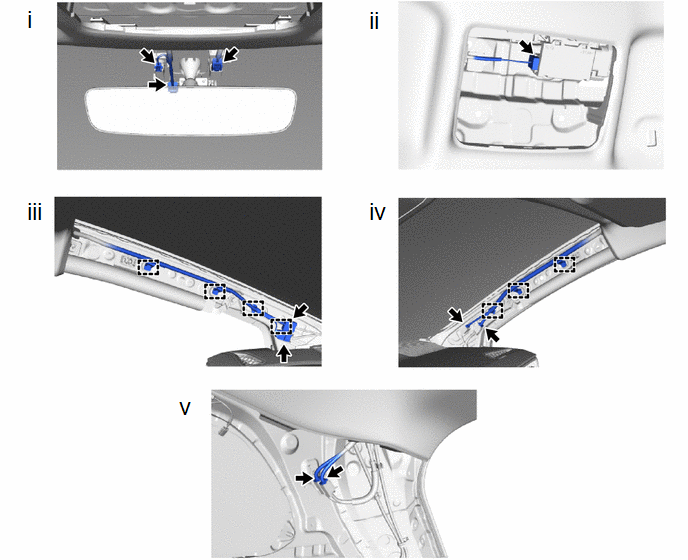

(1) for Windshield Glass Side:

1. Connect each connector.

(2) for Map Light Side:

1. Connect the connector.

(3) for Front Pillar LH Side:

1. Remove the protective cover.

2. Connect the 2 connectors.

3. Engage the clamps.

4. Install the protective cover.

(4) for Front Pillar RH Side:

1. Remove the protective cover.

2. Connect the 2 connectors.

3. Engage the clamps.

4. Install the protective cover.

(5) for Rear Pillar RH Side:

1. Connect the 2 connectors.

4. INSTALL VISOR HOLDER

5. INSTALL VISOR ASSEMBLY LH

6. INSTALL VISOR ASSEMBLY RH

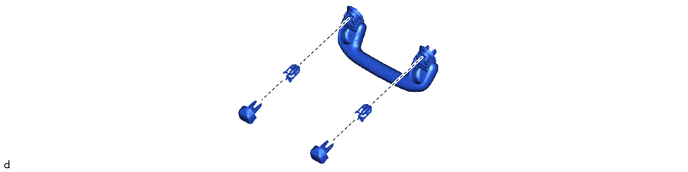

7. INSTALL ASSIST GRIP COVER

(b) Use the same procedure for all of the assist grip cover.

8. INSTALL ASSIST GRIP SUB-ASSEMBLY

9. INSTALL REAR ASSIST GRIP ASSEMBLY LH

10. INSTALL REAR ASSIST GRIP ASSEMBLY RH

11. INSTALL NO. 1 FORWARD RECOGNITION COVER

12. INSTALL NO. 2 FORWARD RECOGNITION COVER

13. INSTALL VANITY LIGHT ASSEMBLY (w/ Vanity Light)

14. INSTALL NO. 1 ROOM LIGHT ASSEMBLY

15. INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)

16. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)

17. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH

18. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH

19. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

20. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

21. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

22. INSTALL REAR DECK TRIM COVER

23. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY

24. INSTALL REAR SEAT SIDE GARNISH LH

25. INSTALL REAR SEAT SIDE GARNISH RH

26. INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY LH

Torque:

18.1 N·m {185 kgf·cm, 13 ft·lbf}

27. INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY RH

28. INSTALL REAR UNDER SIDE COVER LH (for HEV Model)

29. INSTALL REAR UNDER SIDE COVER RH (for HEV Model)

30. INSTALL CENTER PILLER GARNISH ASSEMBLY LH

31. INSTALL CENTER PILLAR GARNISH ASSEMBLY RH

32. INSTALL CENTER PILLAR LOWER GARNISH LH

33. INSTALL CENTER PILLAR LOWER GARNISH RH

34. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

Click here

35. CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

36. INSTALL LAP BELT OUTER ANCHOR COVER

37. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click here

38. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

39. INSTALL REAR DOOR SCUFF PLATE LH

40. INSTALL REAR DOOR SCUFF PLATE RH

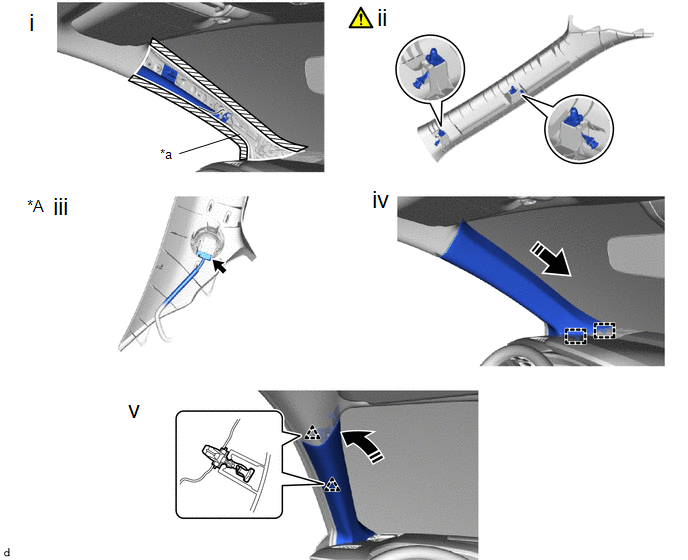

41. INSTALL FRONT PILLAR GARNISH ASSEMBLY LH

*A

w/ Speaker

-

-

*a

Protective Cover

-

-

Install in this Direction

-

-

(1) Remove the protective cover.

(2) Install 2 new front pillar garnish clips to the front pillar garnish assembly LH.

NOTICE:

When installing the front pillar garnish clip, make sure to install it in the correct position and facing in the correct direction.

(3) w/ Speaker:

Connect the connector.

(4) Engage the guides as shown in the illustration.

(5) Engage the front pillar garnish clips to install the front pillar garnish assembly LH as shown in the illustration.

42. INSTALL FRONT PILLAR GARNISH ASSEMBLY RH

43. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click here

44. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

45. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

46. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

47. INSTALL FRONT DOOR SCUFF PLATE LH

48. INSTALL FRONT DOOR SCUFF PLATE RH

49. INSTALL REAR SEAT CUSHION LOCK HOOK

Click here

50. INSTALL DECK FLOOR BOX LH

51. INSTALL DECK FLOOR BOX RH

52. INSTALL SPARE WHEEL CUSHION (w/o Spare Tire)

53. INSTALL DECK BOARD ASSEMBLY

54. INSTALL TONNEAU COVER ASSEMBLY
