Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

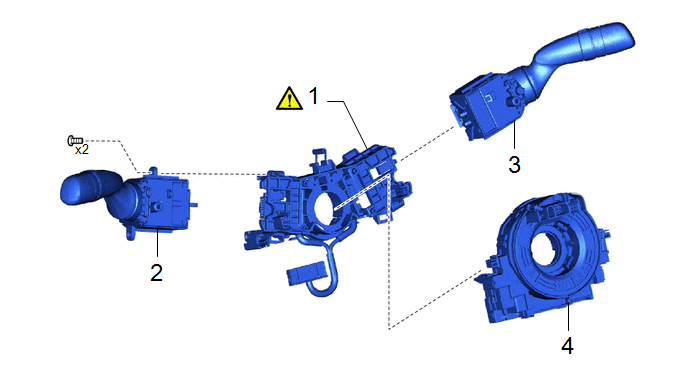

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | STEERING WHEEL SWITCH HOUSING |
84319 |
|
- | - |
|
2 | TURN SIGNAL SWITCH |
84329 | - |
- | - |
|
3 | WINDSHIELD WIPER SWITCH ASSEMBLY |
84650 | - |
- | - |
|
4 | SPIRAL CABLE SUB-ASSEMBLY |
84306 | - |
- | - |
PROCEDURE
1. INSTALL STEERING WHEEL SWITCH HOUSING

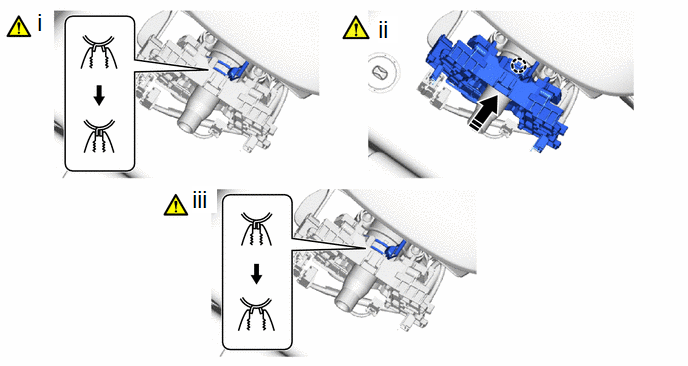

(a) When reusing the steering wheel switch housing:
.png) |
Install in this Direction |
- | - |
(1) Using pliers, expand the clamp to temporarily install the steering wheel switch housing as shown in the illustration.
(2) While holding the clamp expanded, engage the claw to install the steering wheel switch housing as shown in the illustration.
(3) Release the clamp as shown in the illustration.

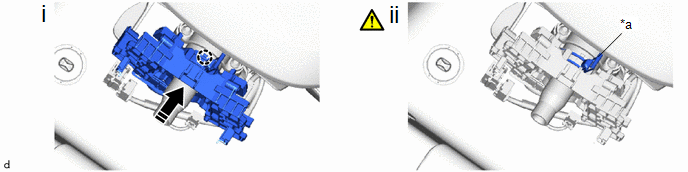

(b) When installing a new steering wheel switch housing:
|
*a | Pin |
- | - |
|
|
Install in this Direction |
- | - |
(1) Engage the claw to install the steering wheel switch housing as shown in the illustration.
(2) Remove the pin.
2. INSTALL TURN SIGNAL SWITCH
3. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
4. INSTALL SPIRAL CABLE SUB-ASSEMBLY
Click here
