Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

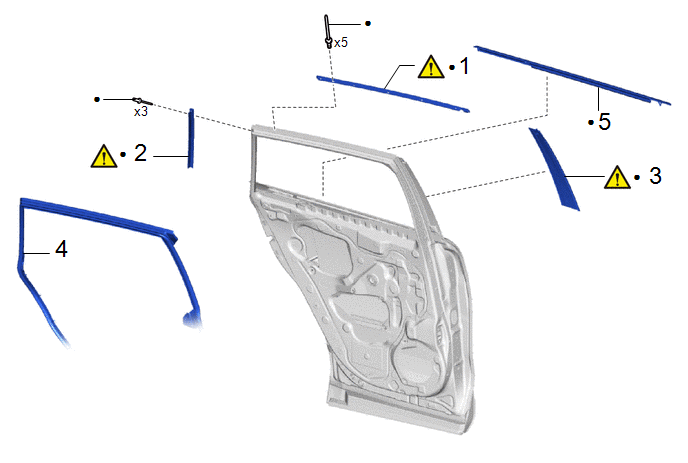

Procedure		Part Name Code
1	REAR DOOR UPPER WINDOW FRAME MOULDING	75764A		-	-
2	REAR DOOR WINDOW FRAME MOULDING (REAR PILLAR SIDE)	75766B		-	-
3	REAR DOOR WINDOW FRAME MOULDING (CENTER PILLAR SIDE)	75762B		-	-
4	REAR DOOR WEATHERSTRIP	67872	-	-	-
5	REAR DOOR BELT MOULDING ASSEMBLY	75740	-	-	-

CAUTION / NOTICE / HINT

HINT:

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR DOOR UPPER WINDOW FRAME MOULDING

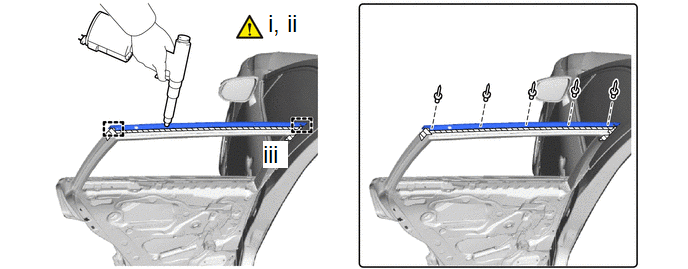

(1) Engage the guides to temporarily install the rear door upper window frame moulding to the rear door frame.

(2) Using an air riveter or hand riveter with a nose piece, install the rear door upper window frame moulding with 5 new rivets.

NOTICE:

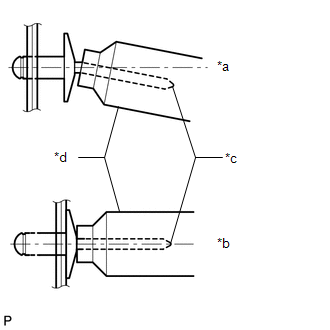

• Do not pry the rivet with the riveter as this will cause damage to the riveter and mandrel.

  *a	Incorrect
  *b	Correct
  *c	Mandrel
  *d	Riveter

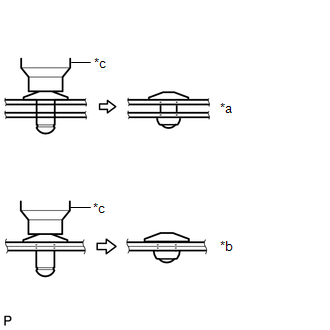

• Confirm that the rivets are seated properly against the rear door upper window frame moulding.

  *a	Incorrect
  *b	Correct
  *c	Riveter

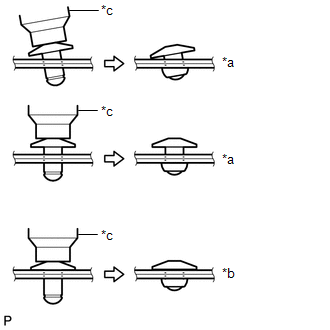

• Do not tilt the riveter when installing the rivet to the rear door upper window frame moulding.
• Do not leave any space between the rivet head and rear door upper window frame moulding.
• Do not leave any space between the rear door upper window frame moulding and front door panel. Firmly hold together the 2 items while installing the rivet.

  *a	Incorrect
  *b	Correct
  *c	Riveter

HINT:

If the mandrel of the rivet does not come off on the first operation of the rivet gun, slide the rivet gun forward on the mandrel and operate it again.

(3) Remove the protective tape.

2. INSTALL REAR DOOR WINDOW FRAME MOULDING (REAR PILLAR SIDE)

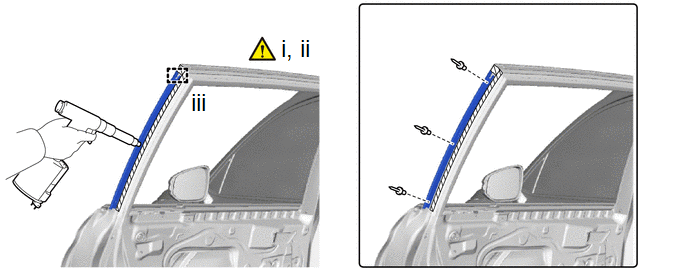

(1) Engage the guide to temporarily install the rear door window frame moulding (rear pillar side) to the rear door frame.

(2) Using an air riveter or hand riveter with a nose piece, install the rear door window frame moulding (rear pillar side) with 3 new rivets.

NOTICE:

• Do not pry the rivet with the riveter as this will cause damage to the riveter and mandrel.

  *a	Incorrect
  *b	Correct
  *c	Mandrel
  *d	Riveter

• Confirm that the rivets are seated properly against the rear door window frame moulding (rear pillar side).

  *a	Incorrect
  *b	Correct
  *c	Riveter

• Do not tilt the riveter when installing the rivet to the rear door window frame moulding (rear pillar side).
• Do not leave any space between the rivet head and rear door window frame moulding (rear pillar side).
• Do not leave any space between the rear door window frame moulding (rear pillar side) and front door panel. Firmly hold together the 2 items while installing the rivet.

  *a	Incorrect
  *b	Correct
  *c	Riveter

HINT:

If the mandrel of the rivet does not come off on the first operation of the rivet gun, slide the rivet gun forward on the mandrel and operate it again.

(3) Remove the protective tape.

3. INSTALL REAR DOOR WINDOW FRAME MOULDING (CENTER PILLAR SIDE)

NOTICE: When installing a new rear door window frame moulding (center pillar side), heat the rear door panel and rear door window frame moulding (center pillar side) using a heat light.

CAUTION:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

NOTICE:

Do not heat the rear door panel and rear door window frame moulding (center pillar side) excessively.

*a	Double-sided Tape	-	-
	Install in this Direction (1)		Install in this Direction (2)

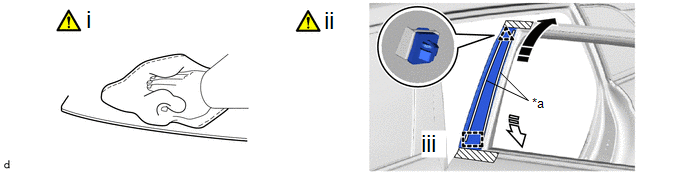

(1) Clean the rear door panel surface.

1. Using a heat light, heat the rear door panel surface.

2. Remove any double-sided tape from the rear door panel.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:

• Installing the rear door window frame moulding (center pillar side) with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
• Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

(2) Install a new rear door window frame moulding (center pillar side).

1. Using a heat light, heat the rear door panel and rear door window frame moulding (center pillar side).

2. Remove the release paper from the rear door window frame moulding (center pillar side)

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.

3. Engage the guide and clip to install the rear door window frame moulding (center pillar side) as shown in the illustration.

HINT:

Press the rear door window frame moulding (center pillar side) firmly to install it.

(3) Remove the protective tape.

4. INSTALL REAR DOOR WEATHERSTRIP

5. INSTALL REAR DOOR BELT MOULDING ASSEMBLY
