Toyota Corolla Cross (2022-2024) Service Manual / Audio & Visual & Telematics / Cellular Communication / Dcm(telematics Transceiver) / Installation

INSTALLATION

CAUTION / NOTICE / HINT

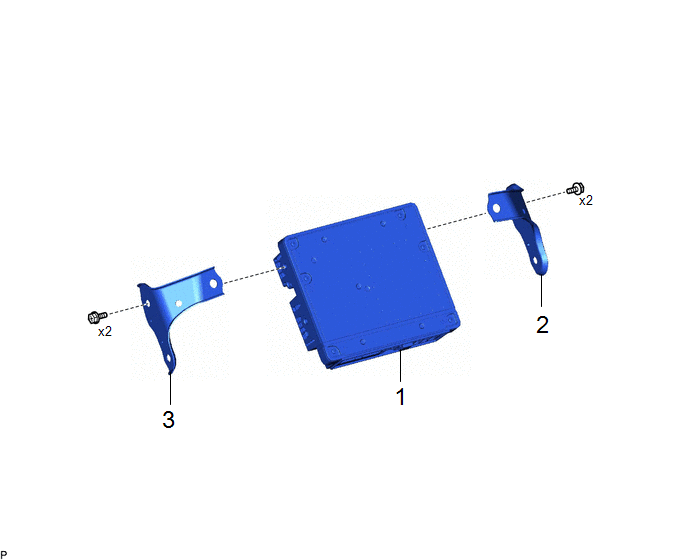

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

TELEMATICS TRANSCEIVER

86741A

-

-

-

2

NO. 1 TELEPHONE BRACKET

86719A

-

-

-

3

NO. 2 TELEPHONE BRACKET

86719B

-

-

-

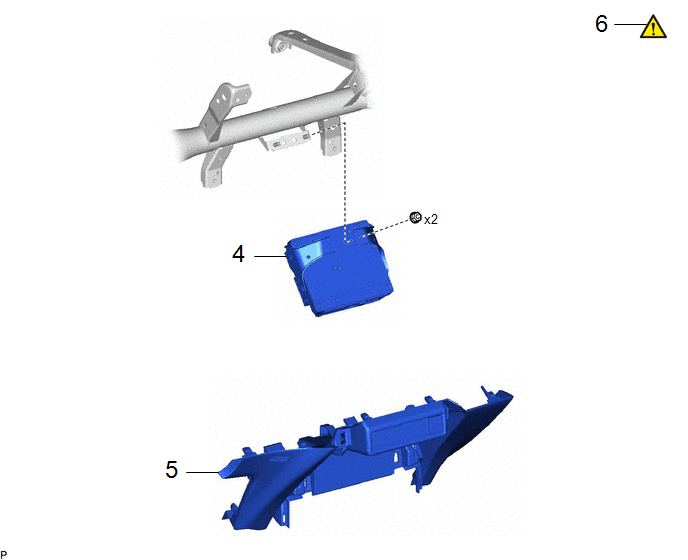

Procedure

Part Name Code

4

TELEPHONE TRANSCEIVER WITH BRACKET

-

-

-

-

5

LOWER CENTER INSTRUMENT PANEL FINISH PANEL

55434F

-

-

-

6

PERFORM REGISTRATION

-

-

-

PROCEDURE

1. INSTALL TELEMATICS TRANSCEIVER

2. INSTALL NO. 1 TELEPHONE BRACKET

3. INSTALL NO. 2 TELEPHONE BRACKET

4. INSTALL TELEPHONE TRANSCEIVER WITH BRACKET

5. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click here

6. PERFORM REGISTRATION

Click here
