Toyota Corolla Cross (2022-2024) Service Manual / General / Maintenance / Transmitter Battery (w/o Smart Key System) / Installation

INSTALLATION

CAUTION / NOTICE / HINT

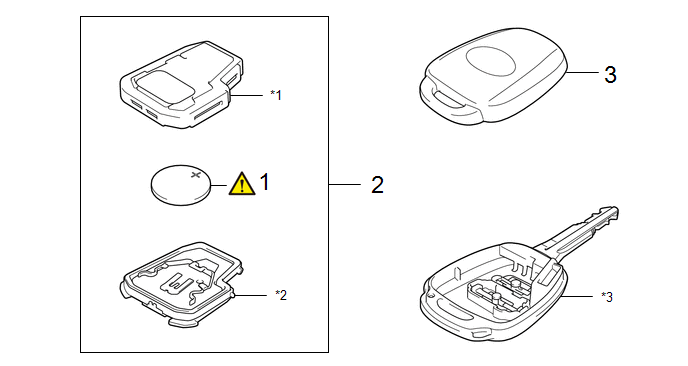

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

TRANSMITTER BATTERY

89745A

-

-

2

DOOR CONTROL TRANSMITTER SUB-ASSEMBLY

89071C

-

-

-

3

TRANSMITTER HOUSING COVER

89751A

-

-

-

*1

TRANSMITTER BATTERY COVER

*2

TRANSMITTER BATTERY CASE

*3

TRANSMITTER HOUSING CASE

-

-

PROCEDURE

1. INSTALL TRANSMITTER BATTERY

NOTICE:

  • Do not bend the transmitter battery electrode during installation.
  • Keep the inside of the transmitter housing cover free of dust and oil.
  • When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical key transmitter sub-assembly from being damaged.

2. INSTALL DOOR CONTROL TRANSMITTER SUB-ASSEMBLY

3. INSTALL TRANSMITTER HOUSING COVER
