Toyota Corolla Cross: Inspection

INSPECTION

PROCEDURE

1. INSPECT TRANSMISSION VALVE BODY ASSEMBLY

(a) Inspect Shift Solenoid Valve SLG:

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

20°C (68°F)

5.0 to 5.6 Ω

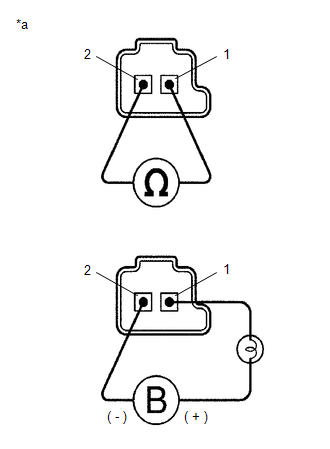

*a

Component without harness connected

(Shift Solenoid Valve SLG)

(2) If the result is not as specified, replace the transmission valve body assembly.

(3) Connect a positive (+) lead from the battery with a 21 W bulb to terminal 1 and a negative (-) lead to terminal 2 of the shift solenoid valve SL1 connector. Check that the valve moves and makes an operating sound.

NOTICE:

When using battery voltage during the inspection, do not bring the positive (+) and negative (-) tester probes too close to each other as a short circuit may occur.

OK:

The shift solenoid valve SLG moves and makes an operating sound.

(4) If the result is not as specified, replace the transmission valve body assembly.

(b) Inspect Shift Solenoid Valve SL1:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.

(c) Inspect Shift Solenoid Valve SL2:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.

(d) Inspect Shift Solenoid Valve SLU:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.

(e) Inspect Shift Solenoid Valve SLP:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.

(f) Inspect Shift Solenoid Valve SLS:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.
