Toyota Corolla Cross: Electric Parking Brake does not Operate

Toyota Corolla Cross (2022-2024) Service Manual / Brake / Parking Brake / Electric Parking Brake System (for Hev Model) / Electric Parking Brake does not Operate

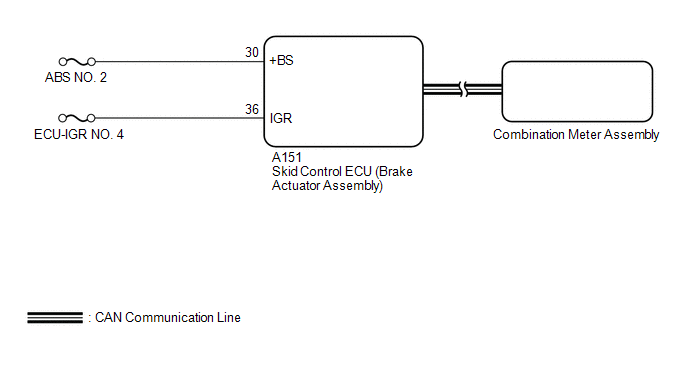

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • The electric parking brake may still operate up to 4 minutes after the ignition switch is turned off. Before disconnecting connectors or fuses, turn the ignition switch off and wait 4 minutes or more.
  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • After replacing the skid control ECU (brake actuator assembly), perform acceleration sensor zero point calibration and store system information memorization.

    Click here

  • When replacing the skid control ECU (brake actuator assembly), operate the electric parking brake switch assembly as the parking brake indicator light blinks (red) when the ignition switch is first turned ON.

HINT:

Even if the electric parking brake is operating normally, the parking brake indicator light (red) on the combination meter may be malfunctioning.

PROCEDURE

1.

CHECK CAN COMMUNICATION SYSTEM

(a) Check if CAN communication system DTCs are output.

Chassis > Brake/EPB > Trouble Codes

Result

Proceed to

DTCs are not output

A

DTCs are output

B
B

GO TO CAN COMMUNICATION SYSTEM

A

2.

VEHICLE OPERATION CHECK

(a) With the wheels not contacting the ground, check the condition of the rear wheels when the electric parking brake is operating and not operating.

Click here

Result

Proceed to

Lock and release operation is normal and parking brake indicator light turns off or blinks (red)

A

Lock and release operation is malfunctioning and parking brake indicator light illuminates (red) or turns off according to switch operation

B

Lock and release operation is malfunctioning and parking brake indicator light turns off or blinks (red)

C
B

INSPECT REAR BRAKE
C

GO TO STEP 4

A

3.

INSPECT COMBINATION METER ASSEMBLY

(a) Perform the Active Test of the combination meter assembly using the GTS.

Body Electrical > Combination Meter > Active Test

Tester Display

Park Warning

(b) Check the combination meter assembly.

OK:

Parking brake indicator light (red) turns on or off in accordance with GTS operation.

OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

NG

GO TO METER / GAUGE SYSTEM

4.

CHECK HARNESS AND CONNECTOR (+BS TERMINAL VOLTAGE)

(a) Turn the ignition switch off.

(b) Disconnect the A151 skid control ECU (brake actuator assembly) connector.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A151-30 (+BS) - Body ground

Always

11 to 14 V

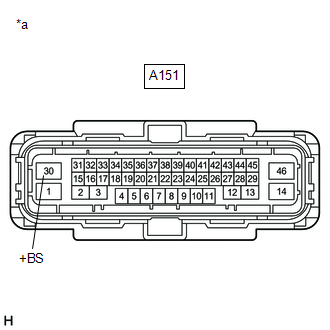

*a

Front view of wire harness connector

(to Skid Control ECU (Brake Actuator Assembly))
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

5.

CHECK HARNESS AND CONNECTOR (IGR TERMINAL VOLTAGE)

(a) Turn the ignition switch off.

(b) Disconnect the A151 skid control ECU (brake actuator assembly) connector.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A151-36 (IGR) - Body ground

Ignition switch ON

11 to 14 V

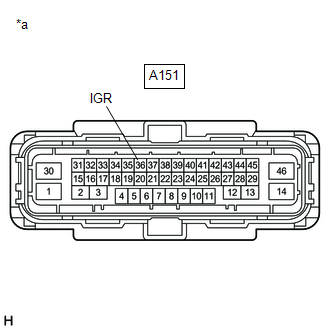

*a

Front view of wire harness connector

(to Skid Control ECU (Brake Actuator Assembly))
OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
