Toyota Corolla Cross: Driver Knee Bolster Deployment Control Circuit Resistance Below Threshold (B00041A)

DESCRIPTION

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Warning Indicate	Test Mode / Check Mode
B00041A	Driver Knee Bolster Deployment Control Circuit Resistance Below Threshold	One of the following conditions is met: The airbag ECU assembly detects a line short in the driver side knee airbag squib circuit for 2 seconds during the primary check. Driver side knee airbag squib (lower No. 1 instrument panel airbag assembly) malfunction Airbag ECU assembly malfunction	Harness or connector Driver side knee airbag squib (Lower No. 1 instrument panel airbag assembly) Airbag ECU assembly	Comes on	Applies to check mode

DTC Detection Conditions:

		Vehicle Condition
		Pattern 1	Pattern 2	Pattern 3
Diagnosis Condition	During the primary check	○	○	○
Malfunction Status	The airbag ECU assembly detects a line short in the driver side knee airbag squib circuit	○	-	-
	Driver side knee airbag squib (lower No. 1 instrument panel airbag assembly) malfunction	-	○	-
	Airbag ECU assembly malfunction	-	-	○
Detection Time		2 seconds	2 seconds	2 seconds
Number of Trips		1 trip	1 trip	1 trip

HINT:

DTC will be output when conditions for either of the patterns in the table above are met.

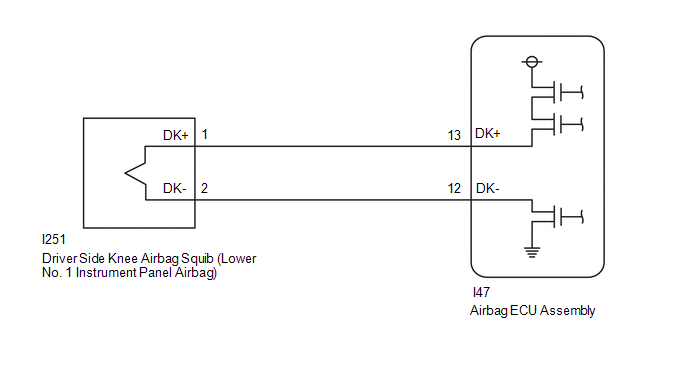

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click here

HINT:

• When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

  Click here

• To perform the simulation method, select Check Mode with the GTS.

  Click here

• Perform the simulation method while checking the Data List.

  Click here

PROCEDURE

1.	CHECK CURRENT DTC

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

Result	Proceed to
Current B00041A is output	A
Current B00041A is not output	B

B

USE SIMULATION METHOD TO CHECK Click here HINT: Perform the simulation method by selecting Check Mode using the GTS. Click here Perform the simulation method while checking the Data List. Click here

A

2.	CHECK CONNECTION OF CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Check that the connectors are properly connected to the lower No. 1 instrument panel airbag assembly and airbag ECU assembly.

OK:

The connectors are properly connected.

NG

CONNECT CONNECTORS PROPERLY

OK

3.	CHECK CONNECTORS

(a) Disconnect the connectors from the lower No. 1 instrument panel airbag assembly airbag ECU assembly.

(b) Check that the terminals of the connectors are not deformed or damaged. OK: The terminals of the connectors are not deformed or damaged.

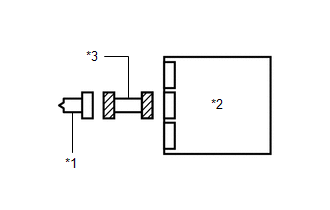

*1 Lower No. 1 Instrument Panel Airbag Assembly *2 Airbag ECU Assembly *3 Wire Harness

(c) Check that the short springs of the activation prevention mechanism of the wire harness connector are not deformed or damaged.

OK:

The short springs are not deformed or damaged.

(d) Check that the wire harness connector (on the lower No. 1 instrument panel airbag assembly side) is not loose, deformed or damaged.

OK:

The airbag connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

4.

CLEAR DTC

(a) Connect the connector to the airbag ECU assembly.

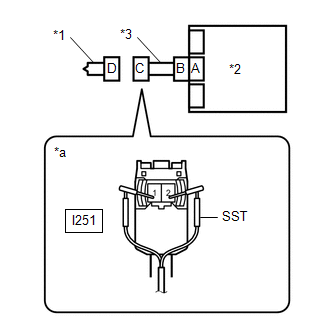

*1 Lower No. 1 Instrument Panel Airbag Assembly *2 Airbag ECU Assembly *3 Wire Harness *a Front view of wire harness connector (to Lower No. 1 Instrument Panel Airbag Assembly)

(b) Connect the white wire side of SST (resistance 2.1 Ω) to connector C.

CAUTION:

Never connect a tester to the lower No. 1 instrument panel airbag assembly for measurement, as this may lead to a serious injury due to airbag deployment.

NOTICE:

• Do not forcibly insert SST into the terminals of the connector when connecting it.
• Insert SST straight into the terminals of the connector.

SST: 09843-18061

(c) Connect the cable to the negative (-) battery terminal.

(d) Turn the ignition switch to ON, and wait for at least 60 seconds.

(e) Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs

(f) Turn the ignition switch off.

NEXT

5.	CHECK LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

Result	Proceed to
B00041A is not output	A
B00041A is output	B

HINT:

Codes other than DTC B00041A may be output at this time, but they are not related to this check.

(c) Turn the ignition switch off.

(d) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(e) Disconnect SST from connector C.

A

REPLACE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

B

6.	CHECK HARNESS AND CONNECTOR

(a) Disconnect the connector from the airbag ECU assembly.

(b) Check for a short in the circuit. (1) Release the activation prevention mechanism built into connector B. HINT: Click here (2) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester Connection Condition Specified Condition I251-1 (DK+) - I251-2 (DK-) Always 1 MΩ or higher Result: Proceed to OK NG (3) Restore the released activation prevention mechanism of connector B to the original condition.

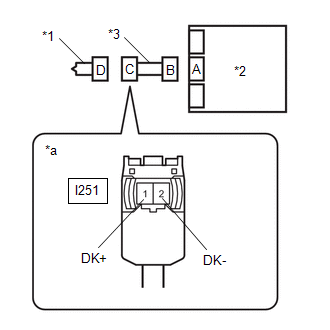

*1 Lower No. 1 Instrument Panel Airbag Assembly *2 Airbag ECU Assembly *3 Wire Harness *a Front view of wire harness connector (to Lower No. 1 Instrument Panel Airbag Assembly)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

7.

CLEAR DTC

(a) Connect the connectors to the lower No. 1 instrument panel airbag assembly and airbag ECU assembly.

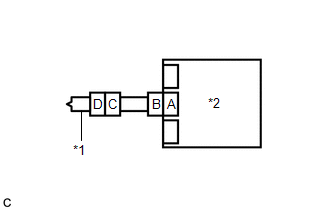

*1 Lower No. 1 Instrument Panel Airbag Assembly *2 Airbag ECU Assembly

(b) Connect the cable to the negative (-) battery terminal.

(c) Turn the ignition switch to ON, and wait for at least 60 seconds.

(d) Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs

(e) Turn the ignition switch off.

NEXT

8.

CHECK DTC

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

Result	Proceed to
B00041A is not output	A
B00041A is output	B

HINT:

Codes other than DTC B00041A may be output at this time, but they are not related to this check.

A

USE SIMULATION METHOD TO CHECK Click here HINT: Perform the simulation method by selecting Check Mode using the GTS. Click here Perform the simulation method while checking the Data List. Click here

B

REPLACE AIRBAG ECU ASSEMBLY
