Toyota Corolla Cross: Compressor Solenoid Circuit Short to Ground or Open (P06A014)
DESCRIPTION
In this circuit, the compressor with pulley assembly receives refrigerant compression demand signals from the air conditioning amplifier assembly.
Based on this signal, the compressor with pulley assembly changes the amount of compressor output.
|
DTC No. | Detection Item |
DTC Detection Condition | Trouble Area |
Memory |
|---|---|---|---|---|
| P06A014 |
Compressor Solenoid Circuit Short to Ground or Open |
Diagnosis Condition:
Malfunction Status:
Detection Time:
|
| Memorized |
|
Vehicle Condition | |||
|---|---|---|---|
|
Pattern 1 | Pattern 2 | ||
|
Diagnosis Condition | Compressor operating |
○ | ○ |
|
Malfunction | Open in compressor solenoid circuit |
○ | - |
|
Short in compressor solenoid circuit |
- | ○ | |
|
Detection Time | Continuously for 30 seconds or more |
Continuously for 30 seconds or more | |
|
Trip Count | 1 trip |
1 trip | |
HINT:
If the conditions of either of these patterns are detected, a DTC will be stored

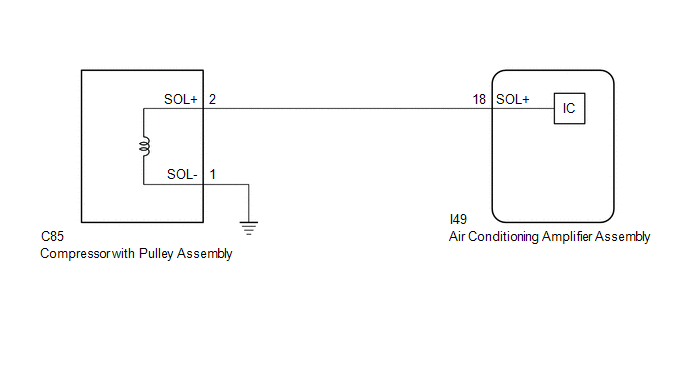

WIRING DIAGRAM
PROCEDURE
| 1. |
READ VALUE USING GTS |
(a) Read the Data List according to the display on the GTS.
Body Electrical > Air Conditioner > Data List|
Tester Display | Measurement Item |
Range | Normal Condition |
Diagnostic Note |
|---|---|---|---|---|
|
Solenoid Valve Control Current Value |
Solenoid valve control current |
Min.: 0 mA Max.: 1000 mA |
Value changes between 0 A and 0.997 A in accordance with solenoid valve operation |
- |
|
Tester Display |
|---|
| Solenoid Valve Control Current Value |
OK:
The display is as specified in the normal condition column.
| OK | .gif) | REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY |
|
.gif)
| 2. |
INSPECT COMPRESSOR WITH PULLY ASSEMBLY |
(a) Disconnect the compressor with pulley assembly connector.

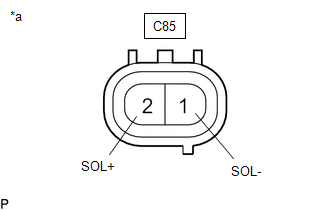

| (b) Measure the resistance according to the value(s) in the table below. Standard Resistance:
|
|
| NG | | REPLACE COMPRESSOR WITH PULLY ASSEMBLY |
|
| 3. |
CHECK HARNESS AND CONNECTOR (COMPRESSOR WITH PULLEY ASSEMBLY - AIR CONDITIONING AMPLIFIER ASSEMBLY AND BODY GROUND) |
(a) Disconnect the I49 air conditioning amplifier assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection | Condition |
Specified Condition |
|---|---|---|
|
C85-2 (SOL+) - I49-18 (SOL+) |
Always | Below 1 Ω |
|
C85-1 (SOL-) - Body ground |
Always | Below 1 Ω |
|
C85-2 (SOL+) or I49-18 (SOL+) - Other terminals and body ground |
Always | 10 kΩ or higher |
| OK | | REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY |
| NG | | REPAIR OR REPLACE HARNESS OR CONNECTOR |
