Toyota Corolla Cross: Brake Switch "A" Circuit Open (P057113)

Toyota Corolla Cross (2022-2024) Service Manual / Brake / Brake Control / Dynamic Control Systems / Electronically Controlled Brake System (for Hev Model) / Brake Switch "A" Circuit Open (P057113)

DESCRIPTION

The skid control ECU (brake actuator assembly) receives stop light switch assembly signals and uses them to determine whether or not the brakes are applied.

The skid control ECU (brake actuator assembly) has a detection circuit that it uses to detect an open in the stop light input line.

If the skid control ECU (brake actuator assembly) detects an open in this circuit, it will store this DTC.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

DTC Output from

Note

P057113

Brake Switch "A" Circuit Open

An open in the stop light switch assembly input line continues for 3 seconds or more.
  • Stop light switch assembly
  • Wire harness or connector
  • Skid control ECU (brake actuator assembly)

Does not come on

Brake/EPB

Output ECU: Skid control ECU (brake actuator assembly)

WIRING DIAGRAM

Refer to DTC C117B62.

Click here

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY OUTPUT CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:

The connector is securely connected.

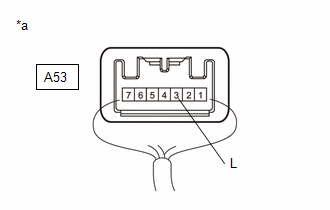

*a

Component with harness connected

(Stop Light Switch Assembly)

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A53-3 (L) - Body ground

Brake pedal depressed

11 to 14 V

A53-3 (L) - Body ground

Brake pedal released

Below 1.5 V
NG

REPLACE STOP LIGHT SWITCH ASSEMBLY

OK

2.

CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY INPUT CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:

The connector is securely connected.

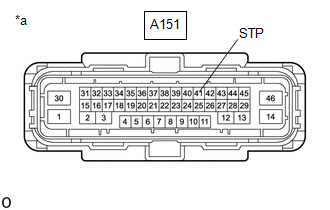

*a

Front view of wire harness connector

(to skid control ECU (Brake Actuator Assembly))

(b) Disconnect the A151 skid control ECU (brake actuator assembly) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A151-41 (STP) - Body ground

Brake pedal depressed

11 to 14 V
OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
