Inspection

INSPECTION

PROCEDURE

1. INSPECT BRAKE HOLD SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

10 (+B) - 12 (E)

Switch pushed

Below 50 Ω

10 (+B) - 12 (E)

Switch not pushed

10 kΩ or higher

HINT:

If the result is not as specified, replace the brake hold switch (electric parking brake switch assembly).

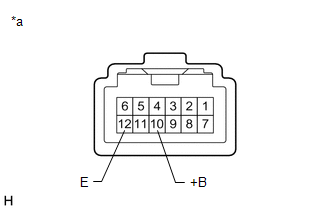

*a

Component without harness connected

(Brake Hold Switch (Electric Parking Brake Switch Assembly))
