Toyota Corolla Cross: Battery is Discharged

DESCRIPTION

General causes of battery depletion include the switches of electrical devices mistakenly left on, service life of the battery, charging device malfunction, or application of excessive electrical load by the customer, etc.

Therefore, it is important to properly grasp the usage conditions of the customer's vehicle and carry out appropriate troubleshooting (systematized failure diagnosis).

HINT:

If the power is mistakenly left on, the History of Reason for Operation may remain in the certification ECU (smart key ECU assembly).*1

  • *1: w/ Smart Key System

PROCEDURE

1.

CUSTOMER PROBLEM ANALYSIS

(a) Carry out customer problem analysis with the customer, and check the vehicle condition and usage conditions at the time of battery depletion.

NEXT

2.

CHECK BATTERY

Click here

HINT:

If the result of the battery inspection is NG, charge or replace the battery according to the inspection result, and proceed to the next step.

NEXT

3.

CHECK DTC OUTPUT

(a) Perform the Health Check using the GTS.

(b) Check the DTCs.

Result

Proceed to

DTCs are not output

A

DTCs are output

B

B

GO TO DTC CHART

A

4.

CHECK VEHICLE CONTROL HISTORY (RoB)

HINT:

Some of the control history can be checked from "Vehicle Control History (RoB)".

Click here

(a) Record the output control history.

Powertrain > Engine > Utility

Tester Display

Vehicle Control History (RoB)

NEXT

5.

CONFIRM VEHICLE CONTROL HISTORY (RoB) (AUXILIARY BATTERY DISCHARGE AT IG OFF)

(a) Check that "Auxiliary Battery Discharge at IG OFF" is not output in Vehicle Control History (RoB).

HINT:

A history is stored when the following conditions are met at the same time.

  • Ignition switch off and average current of battery 60 mA or higher
  • Ignition switch off continuously for 2 hours or more

Result

Proceed to

"Auxiliary Battery Discharge at IG OFF" is not output

A

"Auxiliary Battery Discharge at IG OFF" is output

B

A

GO TO STEP 7

B

6.

CHECK DARK CURRENT

(a) Turn all switches off and turn the ignition switch off.

(b) Wait for 30 minutes or more with the door lock locked.

HINT:

  • Once the door lock is locked, keep the electrical key transmitter sub-assembly (electrical key) 3 m (9.84 ft.) or more away from the vehicle.
  • Because the system will not sleep while any door and/or the hood is open, take steps such as securing the courtesy switch to make the system recognize the doors and hood as closed when carrying out the operation.
  • If the vehicle is equipped with a power back door, the system will not sleep if the back door is not closed. Ensure that the back door is closed before carrying out the operation.

(c) Check the dark current.

Result:

Result

Proceed to

120 mA or less

A

Higher than 120 mA

B

HINT:

  • Close the doors and hood or make the system recognize the doors and hood as closed when checking the dark current.
  • Do not bring the electrical key transmitter sub-assembly (electrical key) near the vehicle or operate any switches when checking the dark current, as doing so will cause the system to start and increase the current.

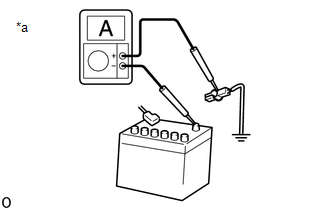

  • Connect the electrical tester in series when checking the dark current to prevent the battery negative (-) circuit from being disconnected.

    If the negative (-) circuit is disconnected, leave the unit for 30 minutes or more with the electrical tester connected between the negative (-) terminal of the battery and the terminal in series, and check the dark current once the current is stable.

  • If the vehicle is equipped with a kick sensor and your foot, etc. is detected by the sensor, the current value may increase momentarily and make it impossible to properly measure the current.

*a

The illustration is for reference only

B

GO TO STEP 15

A

7.

CONFIRM VEHICLE CONTROL HISTORY (RoB) (AUXILIARY BATTERY DISCHARGE AT RUNNING)

(a) Check that "Auxiliary Battery Discharge at Running" is not output in Vehicle Control History (RoB).

HINT:

A history is stored if one of the following conditions is met.

  • Battery voltage while driving is 11 V or less continuously for 20 seconds or more
  • Total charge/discharge while driving is 4.5 Ah or more

Result

Proceed to

"Auxiliary Battery Discharge at Running" is not output

A

"Auxiliary Battery Discharge at Running" is output

B

B

GO TO STEP 11

A

8.

CONFIRM VEHICLE CONTROL HISTORY (RoB) (AUXILIARY BATTERY VOLTAGE LOW AT IG OFF)

(a) Check that "Auxiliary Battery Voltage Low at IG OFF" is not output in Vehicle Control History (RoB).

HINT:

A history is stored when the ignition switch is off and the battery voltage is 11.5 V or less continuously for 10 minutes or more.

Result

Proceed to

"Auxiliary Battery Voltage Low at IG OFF" is not output

A

"Auxiliary Battery Voltage Low at IG OFF" is output

B

B

GO TO STEP 13

A

9.

CHECK CUSTOMER PROBLEM ANALYSIS RESULT

(a) Based on the result of customer problem analysis, check the factors that may lead to battery depletion.

Result

Proceed to

No problems

A

Illumination, such as cabin and luggage illumination, is mistakenly left on

B

Ignition switch is left to ACC or ON (ignition switch is mistakenly left on)

C

Optional electrical components are mistakenly left on

D

The storage location of the electrical key is within 1 m (3.28 ft.) from the vehicle

E

When the customer drives for 30 minutes or less a week

F

HINT:

  • If the storage location of the electrical key transmitter sub-assembly (electrical key) is within approximately 1 m (3.28 ft.) of the vehicle, the system may become unable to sleep, leading to battery depletion due to repeated detection and non-detection by the vehicle exterior detection function of the key.

    If this applies, have the customer change the storage location of the electrical key transmitter sub-assembly (electrical key) to an area that is separated from the vehicle by at least 2 m (6.56 ft.).

  • If the power is mistakenly left on, the History of Reason for Operation may remain in the certification ECU (smart key ECU assembly).*1
    • *1: w/ Smart Key System
B

EFFECTS OF ILLUMINATION ETC. BEING MISTAKENLY LEFT ON

C

EFFECTS OF IGNITION SWITCH BEING MISTAKENLY LEFT ON

D

EFFECTS OF POWER BEING MISTAKENLY LEFT ON

E

EFFECTS OF FREQUENT ELECTRICAL KEY DETECTION

F

EFFECTS OF INSUFFICIENT CHARGE DUE TO LOW USAGE FREQUENCY

A

10.

USE SIMULATION METHOD TO CHECK

(a) Check that all the switches installed in the vehicle for systems that operate with the ignition switch off operate normally.

Examples of Switches that Function with Ignition Switch Off

Switch

Operation

Door handle switch

Hold and pull door handle

Door courtesy switch

Open/close door

Luggage door switch

Press switch

Pawl switch, half latch switch

Jiggle with the door and/or luggage closed (open/close operation)

Dimmer switch

Headlight flashing, headlight on/off

Door lock switch

Lock, unlock

Slide door open switch

Sliding door open/close operation

Luggage opener switch

Press switch

Fuel lid opener switch

Opening operation

Power seat switch

Power seat operation

Intrusion sensor OFF switch

Intrusion sensor on/off

(b) Operate each switch while checking the dark current, and check that the dark current drops to 120 mA or less after operation.

NOTICE:

The electrical tester may become damaged due to an increase in dark current from switch operation. Therefore, check the dark current with the electrical tester measurement range set at maximum, and drop the measurement range gradually according to the changes in current.

HINT:

After checking that the dark current drops to 120 mA or less, check the next switch.

Result

Proceed to

Malfunction is not reproduced

A

Malfunction is reproduced

B

A

CHECK FOR INTERMITTENT PROBLEMS

B

REPAIR OR REPLACE MALFUNCTIONING PARTS

11.

INSPECT GENERATOR ASSEMBLY

Click here

NG

REPAIR OR REPLACE GENERATOR ASSEMBLY

OK

12.

CHECK VEHICLE CONDITION (EXISTENCE OF OPTIONAL COMPONENTS)

(a) Check the customer problem analysis chart and vehicle, and check whether there are any optional electrical components.

Result

Proceed to

Optional electrical components are not installed

A

Optional electrical components are installed

B

A

GO TO STEP 8

B

GO TO STEP 14

13.

READ VALUE USING GTS (TIME OF LONG TERM LEAVING WITH IG OFF (1ST, 2ND, 3RD))

(a) Check "Time of Long Term Leaving with IG OFF (1st, 2nd, 3rd)".

HINT:

A history is stored when the ignition switch is off continuously for 60 days.

Powertrain > Engine > Data List

Tester Display

Time of Long Term Leaving with IG OFF (1st)

Time of Long Term Leaving with IG OFF (2nd)

Time of Long Term Leaving with IG OFF (3rd)

Result

Proceed to

"Time of Long Term Leaving with IG OFF (1st, 2nd, 3rd)" are all 0 days

A

Any "Time of Long Term Leaving with IG OFF (1st, 2nd, 3rd)" is 60 days or more

B

A

GO TO STEP 10

B

EFFECT FROM LONG-TERM STORAGE

14.

CHECK CURRENT CONSUMPTION OF OPTIONAL COMPONENTS

Result

Proceed to

Current consumption is below 10 A

A

Current consumption is 10 A or higher

B

A

GO TO STEP 8

B

EFFECT FROM OPTIONAL COMPONENTS

15.

CHECK VEHICLE CONDITION (EXISTENCE OF OPTIONAL COMPONENTS)

(a) Check the customer problem analysis chart and vehicle, and check whether there are any optional electrical components.

Result

Proceed to

Optional electrical components are not installed

A

Optional electrical components are installed

B

A

GO TO STEP 17

B

16.

CHECK DARK CURRENT (REMOVE OPTIONAL COMPONENTS)

(a) Remove optional electrical components.

NOTICE:

Check the installation condition of the electrical components carefully before removal.

(b) Check the dark current.

Result

Proceed to

Decreases to 120 mA or less

A

Remains higher than 120 mA

B

HINT:

  • Close the doors and hood or make the system recognize the doors and hood as closed when checking the dark current.
  • Do not bring the electrical key transmitter sub-assembly (electrical key) near the vehicle or operate any switches when checking the dark current, as doing so will cause the system to start and increase the current.
  • Connect the electrical tester in series when checking the dark current to prevent the battery negative (-) circuit from being disconnected.

    If the negative (-) circuit is disconnected, leave the unit for 30 minutes or more with the electrical tester connected between the negative (-) terminal of the battery and the terminal in series, and check the dark current once the current is stable.

  • If the vehicle is equipped with a power back door, the system will not sleep if the back door is not closed. Ensure that the back door is closed before carrying out the operation.
  • If the vehicle is equipped with a kick sensor and your foot, etc. is detected by the sensor, the current value may increase momentarily and make it impossible to properly measure the current.

(c) Install the optional electrical components.

A

EFFECT FROM OPTIONAL COMPONENTS

B

17.

CHECK SWITCH (STUCK ON INSPECTION)

(a) Check all the switches installed in the vehicle for systems that operate with the ignition switch off to determine whether they are stuck ON.

HINT:

  • Check visually, by normal operation and by pushing and/or jiggling the switches.
  • The following are examples of switches that function with the ignition switch off.
Examples of Switches that Function with Ignition Switch Off

Door handle switch

Door courtesy switch

Luggage door switch

Pawl switch, half latch switch

Dimmer switch

Door lock switch

Slide door open switch

Luggage opener switch

Fuel lid opener switch

Power seat switch

Intrusion sensor OFF switch

Result

Proceed to

No switch malfunction

A

Switch malfunction

B

B

REPLACE MALFUNCTIONING PARTS

A

18.

CHECK DARK CURRENT (NARROW DOWN MALFUNCTIONING SYSTEM)

(a) Narrow down the malfunctioning system by checking the dark current while removing fuses starting from the one closest to the system, actuator or ECU (farthest from the power source).

HINT:

  • From the wiring diagram, select ECUs and components to which voltage is applied constantly via the +B voltage source, and remove those fuses 1 system at a time.
  • Fuses must be removed one at a time. Do not remove 2 or more fuses simultaneously.
  • Remove the fuses in the order that is most likely to allow the trouble area to be specified, as multiple ECUs or components may be connected to a single fuse.
  • Once a single system check is ended, proceed to the next system check without re-attaching the removed fuse(s).
  • Remove the fuses in order, and if a system with current of 120 mA or less is found, check the ECUs and/or components of that system.

HINT:

  • Close the doors and hood or make the system recognize the doors and hood as closed when checking the dark current.
  • Do not bring the electrical key transmitter sub-assembly (electrical key) near the vehicle or operate any switches when checking the dark current, as doing so will cause the system to start and increase the current.
  • Connect the electrical tester in series when checking the dark current to prevent the battery negative (-) circuit from being disconnected.

    If the negative (-) circuit is disconnected, leave the unit for 30 minutes or more with the electrical tester connected between the negative (-) terminal of the battery and the terminal in series, and check the dark current once the current is stable.

  • If the vehicle is equipped with a power back door, the system will not sleep if the back door is not closed. Ensure that the back door is closed before carrying out the operation.
  • If the vehicle is equipped with a kick sensor and your foot, etc. is detected by the sensor, the current value may increase momentarily and make it impossible to properly measure the current.
NEXT

CHECK AND REPAIR MALFUNCTIONING SYSTEM
