Toyota Corolla Cross: Air Inlet Damper Control Servo Motor Actuator Stuck Off (B143B7F)

DESCRIPTION

The No. 1 blower damper servo sub-assembly sends pulse signals to inform the air conditioning amplifier assembly of the damper position. The air conditioning amplifier assembly activates the motor (normal or reverse) based on these signals to move the air inlet damper to the appropriate position, which controls the air inlet switching.

The air conditioning amplifier assembly communicates with the servo through a communication/driver IC and wiring assembly called the air conditioning harness assembly.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Memory

B143B7F

Air Inlet Damper Control Servo Motor Actuator Stuck Off

Diagnosis Condition:

  • No. 1 blower damper servo sub-assembly operating

Malfunction Status:

  • Damper servo operation request signals are output but the damper position sensor value does not change or abnormal

Detection Time:

  • Continuously for 30 seconds or more
  • No. 1 blower damper servo sub-assembly
  • Air conditioning harness assembly
  • Air conditioning radiator assembly

Memorized

DTC Detection Condition Combination Table


Vehicle Condition

Pattern 1

Pattern 2

Diagnosis Condition

No. 1 blower damper servo sub-assembly operating

Malfunction

Damper servo operation request signals are output but the damper position sensor value does not change

-

Damper servo operation request signals are output but the damper position sensor value is abnormal

-

Detection Time

Continuously for 30 seconds or more

Continuously for 30 seconds or more

Trip Count

1 trip

1 trip

HINT:

If the conditions of either of these patterns are detected, a DTC will be stored

WIRING DIAGRAM

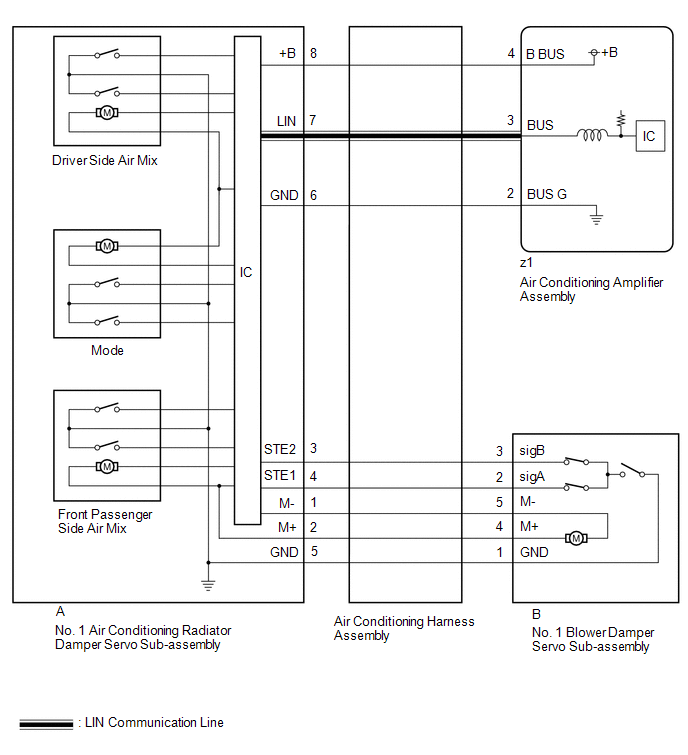

for Dual Type

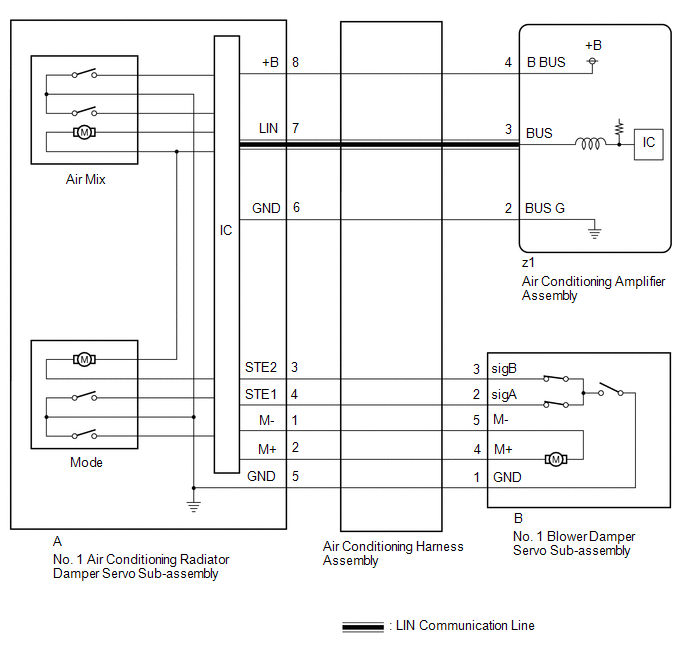

for Single Type

CAUTION / NOTICE / HINT

NOTICE:

  • This DTC is also output for the damper link, damper lock, etc. Before performing inspection, perform servomotor initialization and check that there are no mechanical malfunctions.

    Click here

  • This DTC is also output when servomotor initialization has failed. When servomotor initialization has failed, repair any malfunctions and perform servomotor initialization again.

    Click here

PROCEDURE

1.

CHECK FOR DTC

(a) Check for DTCs.

Body Electrical > Air Conditioner > Trouble Codes

Result

Proceed to

B14037F, B14067F and B143B7F are output

A

B143B7F is output

B

A

REPLACE NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY

B

2.

PERFORM ACTIVE TEST USING GTS

(a) Perform the Active Test according to the display on the GTS.

Body Electrical > Air Conditioner > Active Test

Tester Display

Measurement Item

Control Range

Diagnostic Note

Air Inlet Damper Control Servo Motor

No. 1 blower damper servo sub-assembly pulse

Min.: 128

Max.: 384

-

Body Electrical > Air Conditioner > Active Test

Active Test Display

Air Inlet Damper Control Servo Motor

Data List Display

Air Inlet Damper Control Servo Motor Actual Pulse

Result

Proceed to

No. 1 air conditioning radiator damper servo sub-assembly operates

A

No. 1 air conditioning radiator damper servo sub-assembly does not operate at all

B

B

REPLACE NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY

A

3.

CHECK NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY

(a) Check that the No. 1 blower damper servo sub-assembly is installed correctly.

Click here

OK:

The No. 1 blower damper servo sub-assembly is installed correctly.

NG

INSTALL NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY

OK

4.

CHECK NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY (MOTOR, LINK, DAMPER)

(a) Check for a wire harness caught between the links of the motors and dampers.

OK:

No wire harnesses are caught between the links of the motors and dampers.

NG

REMOVE PINCHED WIRE HARNESS

OK

5.

CHECK BLOWER ASSEMBLY

(a) Remove the No. 1 blower damper servo sub-assembly.

Click here

(b) Operate the air inlet dampers by hand.

OK:

The air inlet dampers are easily operated by hand.

NG

REPLACE BLOWER ASSEMBLY

OK

6.

INSPECT AIR CONDITIONING HARNESS ASSEMBLY

(a) Disconnect the A No. 1 air conditioning radiator damper servo sub-assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A-1 (M-) - B-5 (M-)

Always

Below 1 Ω

A-2 (M+) - B-4 (M+)

Always

Below 1 Ω

A-3 (STE2) - B-3 (sigB)

Always

Below 1 Ω

A-4 (STE1) - B-2 (sigA)

Always

Below 1 Ω

A-5 (GND) - B-1 (GND)

Always

Below 1 Ω

A-1 (M-) or B-5 (M-) - Other terminals and body ground

Always

10 kΩ or higher

A-2 (M+) or B-4 (M+) - Other terminals and body ground

Always

10 kΩ or higher

A-3 (STE2) or B-3 (sigB) - Other terminals and body ground

Always

10 kΩ or higher

A-4 (STE1) or B-2 (sigA) - Other terminals and body ground

Always

10 kΩ or higher

OK

REPLACE NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY

NG

REPLACE AIR CONDITIONING HARNESS ASSEMBLY
